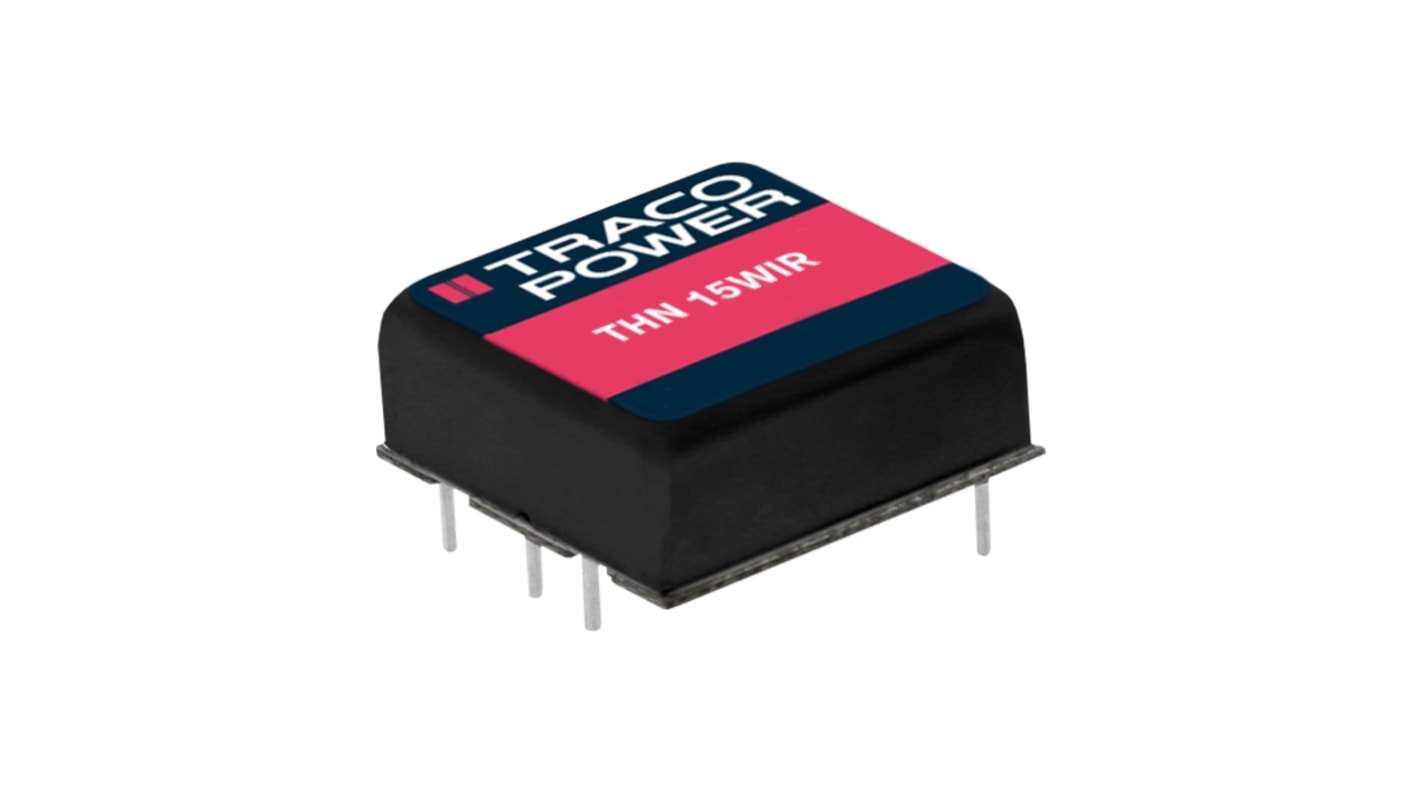

TRACOPOWER THN 15WIR DC-DC Converter, ±5V dc/ ±1.5A Output, 18 → 75 V dc Input, 15W, PCB Mount, +85°C Max Temp
- RS Stock No.:
- 135-1539
- Mfr. Part No.:
- THN 15-4821WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£487.31
(exc. VAT)
£584.77
(inc. VAT)
Stock information currently inaccessible
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £487.31 | £48.731 |
| 5 - 9 | £472.70 | £47.27 |
| 10 - 24 | £458.07 | £45.807 |
| 25 - 49 | £438.59 | £43.859 |
| 50 + | £419.10 | £41.91 |
*price indicative
- RS Stock No.:
- 135-1539
- Mfr. Part No.:
- THN 15-4821WIR
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | ±1.5A | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | ±4.5 V dc, ±5.5V dc | |
| Package | DIP-6 | |
| Isolation Voltage | 3kV dc | |
| Width | 25.4mm | |
| Length | 25.4mm | |
| Depth | 9.9mm | |
| Railway Approved | Yes | |
| Series | THN 15WIR | |
| Load Regulation | 0.01 | |
| Standards Met | CB Scheme, CE Certified, cULus Recognised, EMI 55022 Class A, EN 45545-2, IEC/EN 60950-1, UL 60950-1 | |
| Maximum Temperature | +85°C | |
| Efficiency | 86% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±5V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 48 V dc | ||
Output Current ±1.5A | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range ±4.5 V dc, ±5.5V dc | ||
Package DIP-6 | ||
Isolation Voltage 3kV dc | ||
Width 25.4mm | ||
Length 25.4mm | ||
Depth 9.9mm | ||
Railway Approved Yes | ||
Series THN 15WIR | ||
Load Regulation 0.01 | ||
Standards Met CB Scheme, CE Certified, cULus Recognised, EMI 55022 Class A, EN 45545-2, IEC/EN 60950-1, UL 60950-1 | ||
Maximum Temperature +85°C | ||
Efficiency 86% | ||
Minimum Temperature -40°C | ||
