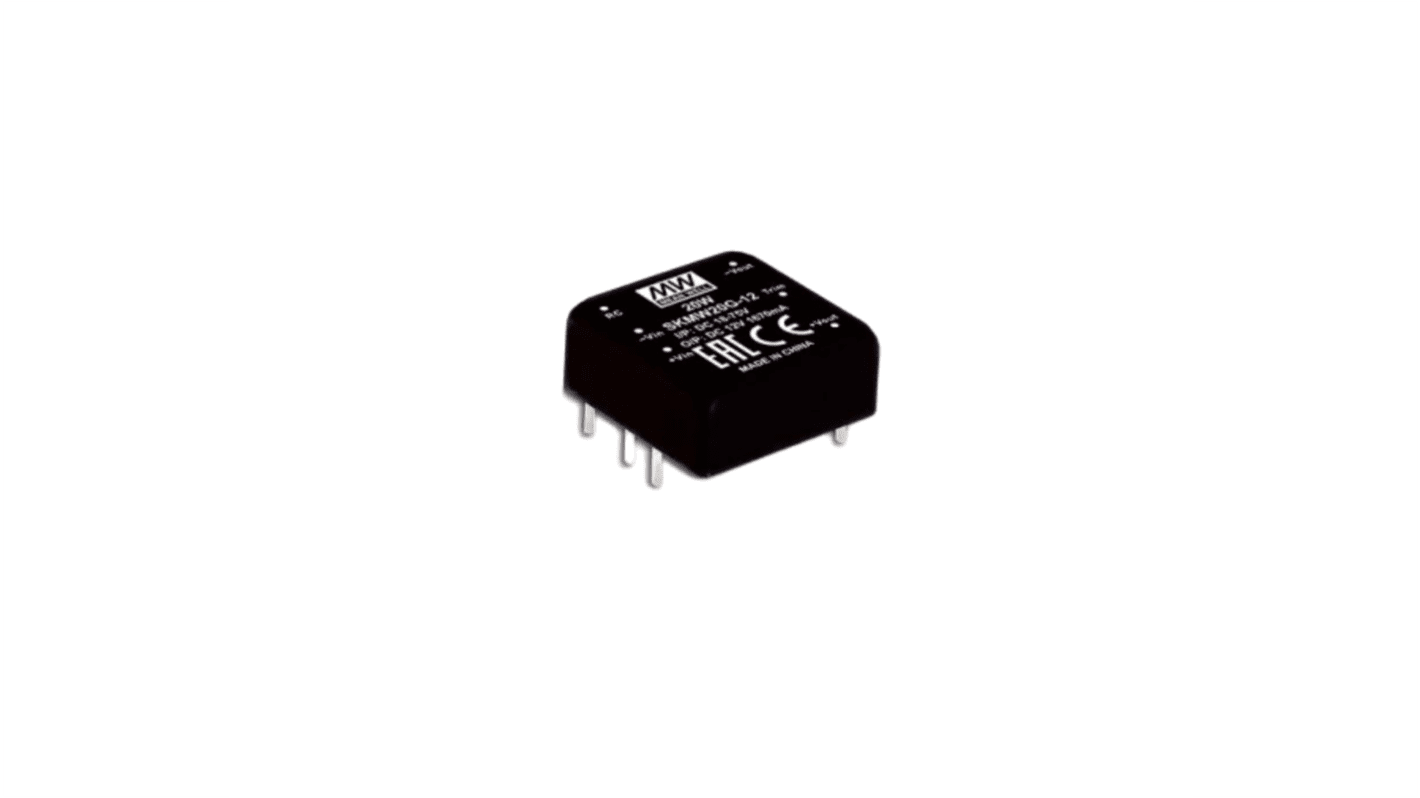

MEAN WELL SKMW20 DC-DC Converter, 5V dc/ 4A Output, 9 → 36 V dc Input, 20W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 632-222
- Mfr. Part No.:
- SKMW20F-05
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£27.14
(exc. VAT)
£32.57
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £27.14 |
*price indicative
- RS Stock No.:
- 632-222
- Mfr. Part No.:
- SKMW20F-05
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 5V dc | |
Input Voltage Range | 9 → 36 V dc | |
Power Rating | 20W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 4A | |
Mounting Type | Through Hole | |
Series | SKMW20 | |
Maximum Temperature | +85°C | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 5V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 20W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 4A | ||
Mounting Type Through Hole | ||
Series SKMW20 | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- CN
The MEANWELL 20W isolated and regulated module type DC-DC converter with DIP 1 x 1 inch package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40 to +85°C, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over temperature, input under voltage protection, remote ON/OFF and trim Mable output voltage etc.
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 89%
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 89%
