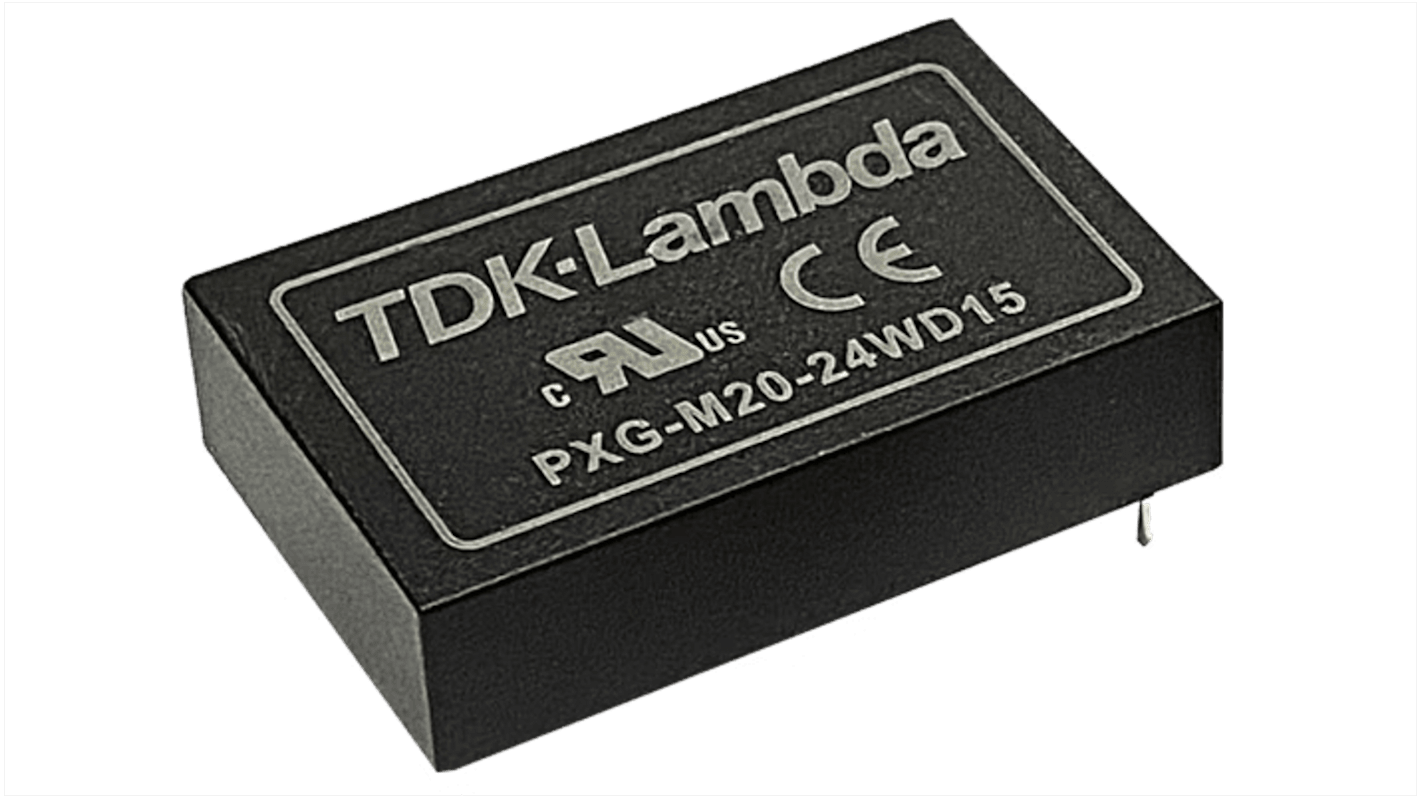

TDK-Lambda PXG-M DC/DC Converter, 36V dc, 9 V dc/ 4 A, 75V Input, 9V Input 20 W, Surface, 125 °C Max Temp -40 °C Min

View all DC-DC Converters

Subtotal (1 unit)*

£69.95

(exc. VAT)

£83.94

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 9 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£69.95

*price indicative

RS Stock No.:
283-1826
Distrelec Article No.:
302-39-395
Mfr. Part No.:
PXG-M20-24WS24
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Output Voltage 1

36, 9V dc

Product Type

DC/DC Converter

Minimum Input Voltage

9V

Maximum Input Voltage

75V

Output Current 1

4A

Mount Type

Surface

Input Ratio

4:1

Number of Outputs

2

MTBF

2080000h

Ripple and Noise

100mV Pk-Pk

Isolation Voltage

5kV

Maximum Output Power

20W

Weight

24g

Standards/Approvals

IEC 60601-1, IEC 62368-1

Length

1.6in

Width

1in

Series

PXG-M

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

COO (Country of Origin):
TW
The TDK-Lambda is a 15 to 20W Medical and Industrial DC-DC Converters. The PXG-M series of medical and industrial DC-DC converters feature a wide 4:1 input range in a compact 1.6 x 1 inch industry standard package. With 5kV input to output isolation, 2.5uA touch current and a low off-load power draw, these encapsulated modules are ideal for fixed and portable applications.

Less Board Area Needed

Suitable For Medical and Industrial Applications

High Input to Output Isolation

Longer Battery Life
