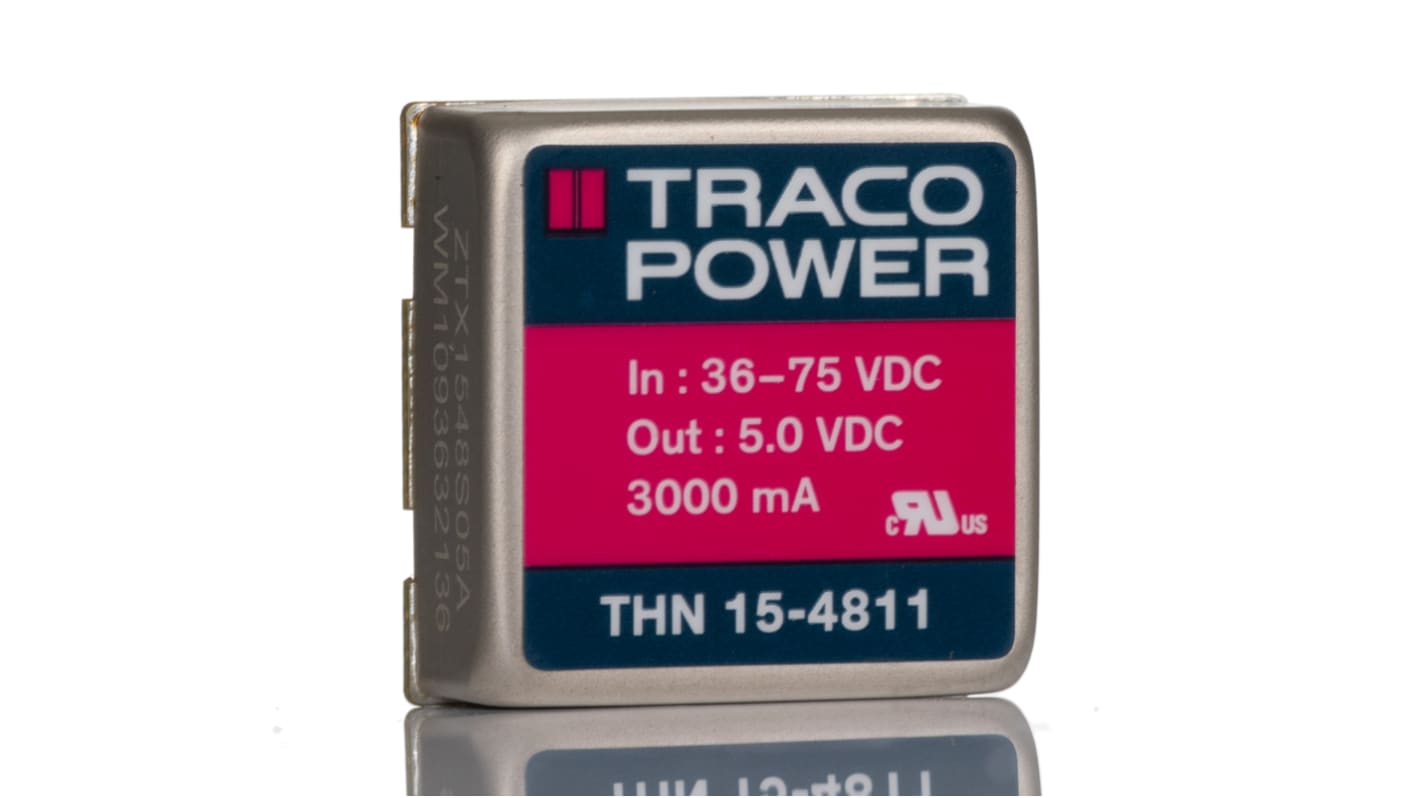

TRACOPOWER THN 15 DC-DC Converter, 5V dc/ 3A Output, 36 → 75 V dc Input, 15W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 438-339
- Mfr. Part No.:
- THN 15-4811
- Brand:
- TRACOPOWER
2 In stock - FREE next working day delivery available
Added
Price Each
£30.99
(exc. VAT)
£37.19
(inc. VAT)
Units | Per unit |
1 + | £30.99 |
- RS Stock No.:
- 438-339
- Mfr. Part No.:
- THN 15-4811
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco Power DC-DC Converter, Encapsulated Metal Package, 1.5kV Isolation Voltage - THN 15 Series - THN 15-4811
Don't suffer the shocks of an unstable power supply – reach for this DC-DC converter from Traco Power instead. It keeps electrical devices juiced up by converting inputs ranging from 36 to 75V DC into a precisely regulated 5V DC output voltage. The converter saves space by occupying 50% less board space than many alternatives thanks to its ultra-compact dimensions of 25.4 (L) x 25.4 (W) x 9.9mm (D). Industry-standard pinouts make installation a breeze by keeping your wiring on track.
Features & Benefits
• Advanced circuit design provides high efficiency of up to 88%, minimising energy waste
• Safely performs in industrial conditions with an operating temperature range of -40°C to +85°C
• Maintain control from a distance using remote power buttons
• 15W power rating means it's robust enough for use with industrial equipment
• 1.5kV isolation voltage protects you and your circuits from sudden energy spikes
• Safely performs in industrial conditions with an operating temperature range of -40°C to +85°C
• Maintain control from a distance using remote power buttons
• 15W power rating means it's robust enough for use with industrial equipment
• 1.5kV isolation voltage protects you and your circuits from sudden energy spikes
Applications
• Power distribution networks
• Industrial electronics
• Mobile communication equipment
• Industrial electronics
• Mobile communication equipment
How much interference does this device experience?
The converter's ripple and noise levels are low with a rating of just 100mVp-p, so you can expect smooth performance.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 36 → 75 V dc |
Power Rating | 15W |
Input Voltage Nominal | 48 V dc |
Output Current | 3A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Output Voltage Adjustment Range | 4.5 → 5.5V dc |
Isolation Voltage | 1.6kV dc |
Width | 25.4mm |
Depth | 9.9mm |
Length | 25.4mm |
Series | THN 15 |
Load Regulation | 0.2% |
Maximum Temperature | +85°C |
Standards Met | EN 60950-1 |
Efficiency | 88% |
Medical Approved | No |
Minimum Temperature | -40°C |
