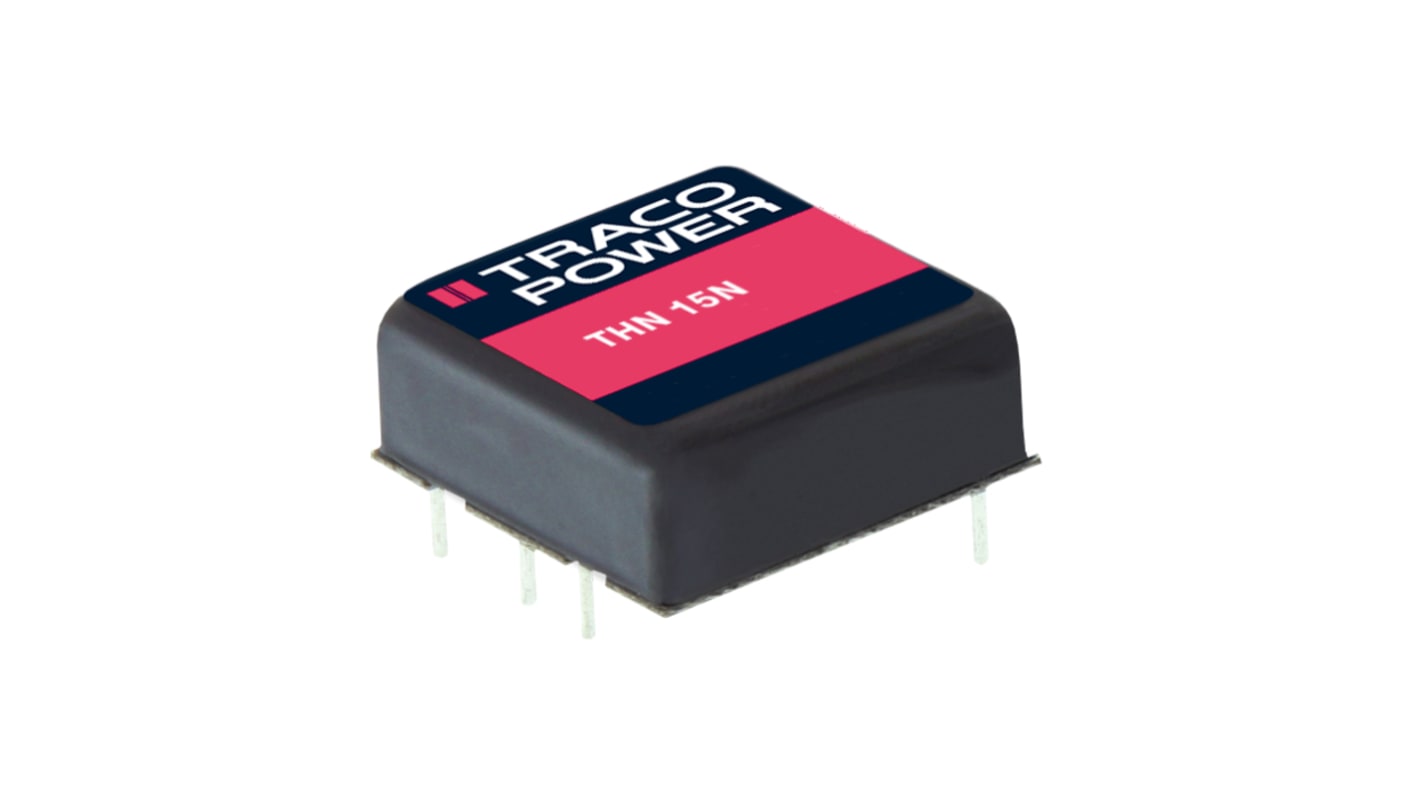

TRACOPOWER THN 15N DC-DC Converter, 5V dc/ 3A Output, 36 → 75 V dc Input, 15W, Through Hole, +105°C Max Temp
- RS Stock No.:
- 183-0687
- Mfr. Part No.:
- THN 15-4811N
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£364.57
(exc. VAT)
£437.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £364.57 | £36.457 |
| 5 - 9 | £353.64 | £35.364 |
| 10 - 24 | £342.69 | £34.269 |
| 25 - 49 | £328.12 | £32.812 |
| 50 + | £313.53 | £31.353 |
*price indicative
- RS Stock No.:
- 183-0687
- Mfr. Part No.:
- THN 15-4811N
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 36 → 75 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 45 V dc | |
| Output Current | 3A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | 1 x 1 in | |
| Isolation Voltage | 1.6kV dc | |
| Length | 25.4mm | |
| Width | 25.4mm | |
| Depth | 9.9mm | |
| Series | THN 15N | |
| Load Regulation | 0.002 | |
| Maximum Temperature | +105°C | |
| Efficiency | 89% | |
| Standards Met | EN 55024, EN 55032, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN/UL 62368-1, UL 94V-0 | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 45 V dc | ||
Output Current 3A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package 1 x 1 in | ||
Isolation Voltage 1.6kV dc | ||
Length 25.4mm | ||
Width 25.4mm | ||
Depth 9.9mm | ||
Series THN 15N | ||
Load Regulation 0.002 | ||
Maximum Temperature +105°C | ||
Efficiency 89% | ||
Standards Met EN 55024, EN 55032, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN/UL 62368-1, UL 94V-0 | ||
Minimum Temperature -40°C | ||
