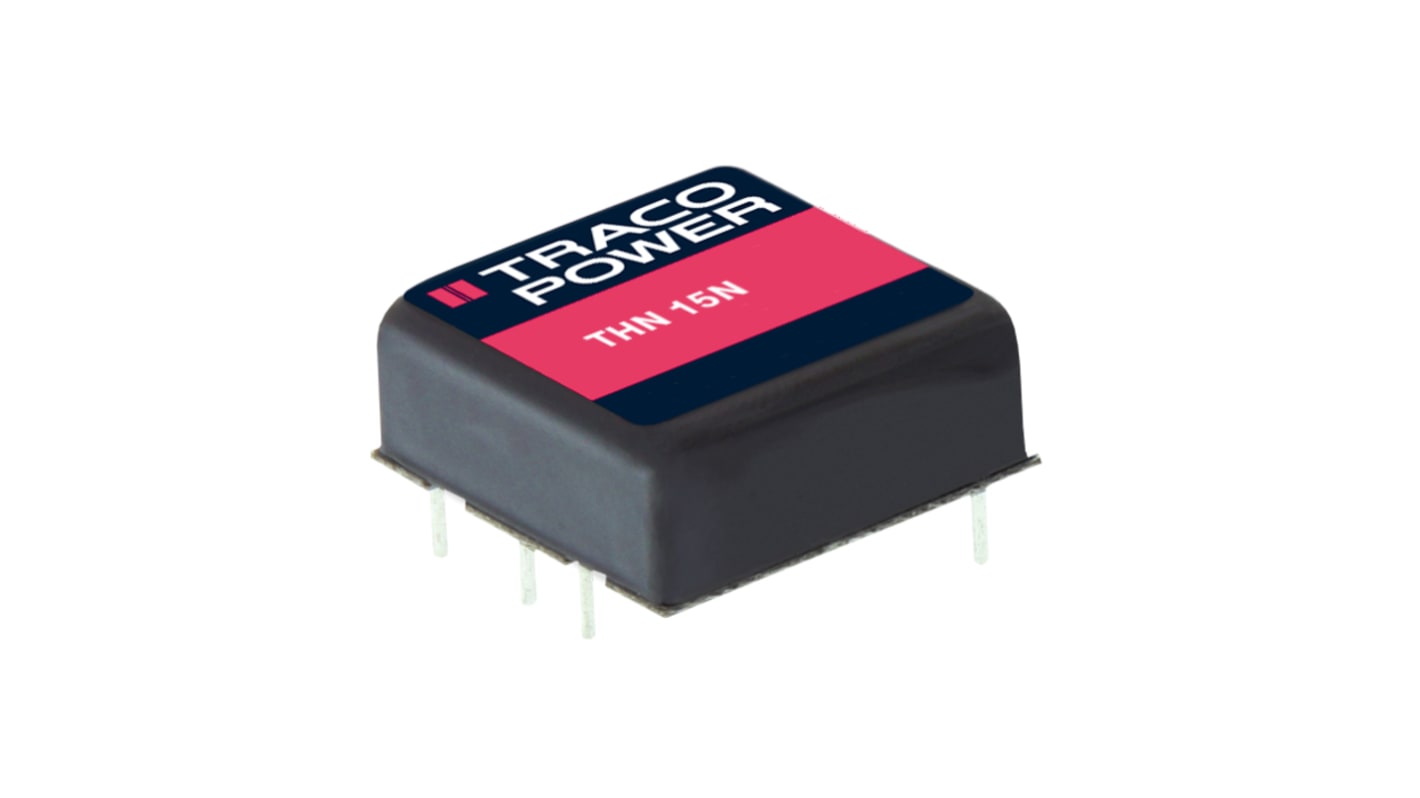

TRACOPOWER THN 15N DC-DC Converter, ±5V dc/ ±1.5A Output, 36 → 75 V dc Input, 15W, Through Hole, +105°C Max Temp
- RS Stock No.:
- 183-0692
- Mfr. Part No.:
- THN 15-4821N
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£382.42
(exc. VAT)
£458.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £382.42 | £38.242 |
| 5 - 9 | £370.94 | £37.094 |
| 10 - 24 | £359.47 | £35.947 |
| 25 - 49 | £344.17 | £34.417 |
| 50 + | £328.88 | £32.888 |
*price indicative
- RS Stock No.:
- 183-0692
- Mfr. Part No.:
- THN 15-4821N
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 36 → 75 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 45 V dc | |
| Output Current | ±1.5A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | 1 x 1 in | |
| Isolation Voltage | 1.6kV dc | |
| Depth | 9.9mm | |
| Width | 25.4mm | |
| Length | 25.4mm | |
| Series | THN 15N | |
| Load Regulation | 1 (Balanced Load) %, 5 (Asymmetrical Load) % | |
| Standards Met | EN 55024, EN 55032, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN/UL 62368-1, UL 94V-0 | |
| Maximum Temperature | +105°C | |
| Efficiency | 85% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±5V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 45 V dc | ||
Output Current ±1.5A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package 1 x 1 in | ||
Isolation Voltage 1.6kV dc | ||
Depth 9.9mm | ||
Width 25.4mm | ||
Length 25.4mm | ||
Series THN 15N | ||
Load Regulation 1 (Balanced Load) %, 5 (Asymmetrical Load) % | ||
Standards Met EN 55024, EN 55032, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN/UL 62368-1, UL 94V-0 | ||
Maximum Temperature +105°C | ||
Efficiency 85% | ||
Minimum Temperature -40°C | ||
