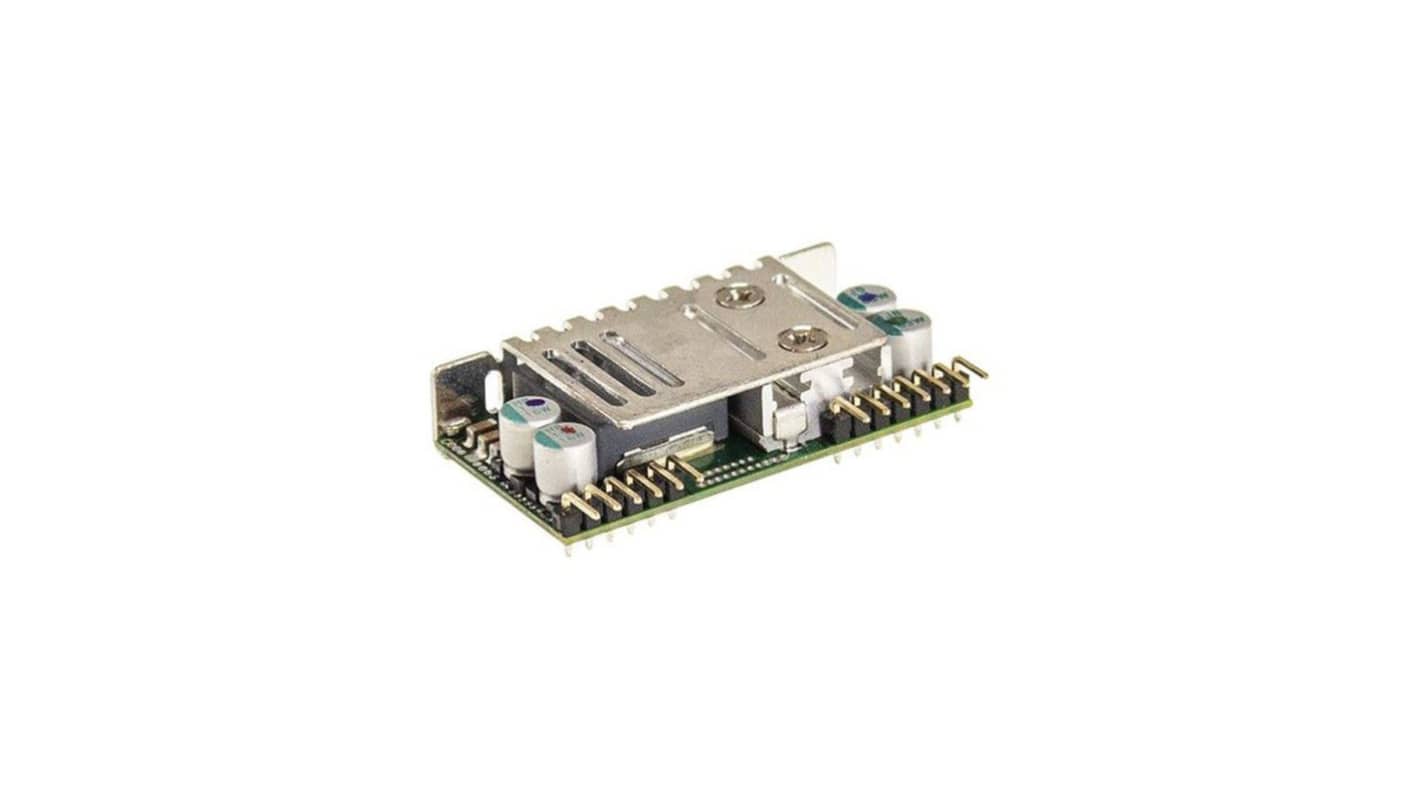

MEAN WELL NID100 DC/DC Converter, 5V dc/, 53V dc Input 6.5 A, 10.5V dc Input, 85 °C Max Temp -30 °C Min Temp, 13-Pin
- RS Stock No.:
- 424-953
- Distrelec Article No.:
- 303-72-459
- Mfr. Part No.:
- NID100-5
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£11.22
(exc. VAT)
£13.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 130 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.22 |
*price indicative
- RS Stock No.:
- 424-953
- Distrelec Article No.:
- 303-72-459
- Mfr. Part No.:
- NID100-5
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 53V dc | |
| Minimum Input Voltage | 10.5V dc | |
| MTBF | 17290.5kH | |
| Number of Outputs | 4 | |
| Output Voltage Adjustment Range | ±2 % | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Current 1 | 6.5A | |
| Number of Pins | 13 | |
| Maximum Output Power | 97.5W | |
| Width | 27.5mm | |
| Series | NID100 | |
| Depth | 50.8mm | |
| Length | 12mm | |
| Weight | 35g | |
| Standards/Approvals | EAC TP TC 004 Approved, BS EN/EN62368-1(LVD) | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -30°C | |
| Efficiency | 93% | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 53V dc | ||
Minimum Input Voltage 10.5V dc | ||
MTBF 17290.5kH | ||
Number of Outputs 4 | ||
Output Voltage Adjustment Range ±2 % | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Current 1 6.5A | ||
Number of Pins 13 | ||
Maximum Output Power 97.5W | ||
Width 27.5mm | ||
Series NID100 | ||
Depth 50.8mm | ||
Length 12mm | ||
Weight 35g | ||
Standards/Approvals EAC TP TC 004 Approved, BS EN/EN62368-1(LVD) | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -30°C | ||
Efficiency 93% | ||
RoHS Status: Exempt
The MEANWELL DC-DC Non-isolation Open frame PCB mount converter and Input 10.5-53Vdc and Output 5Vdc at 11A and SIP package and Remote ON/OFF.
Warranty pack 36 Months Bring-In
RoHS Compliant
Packing quantity 280
