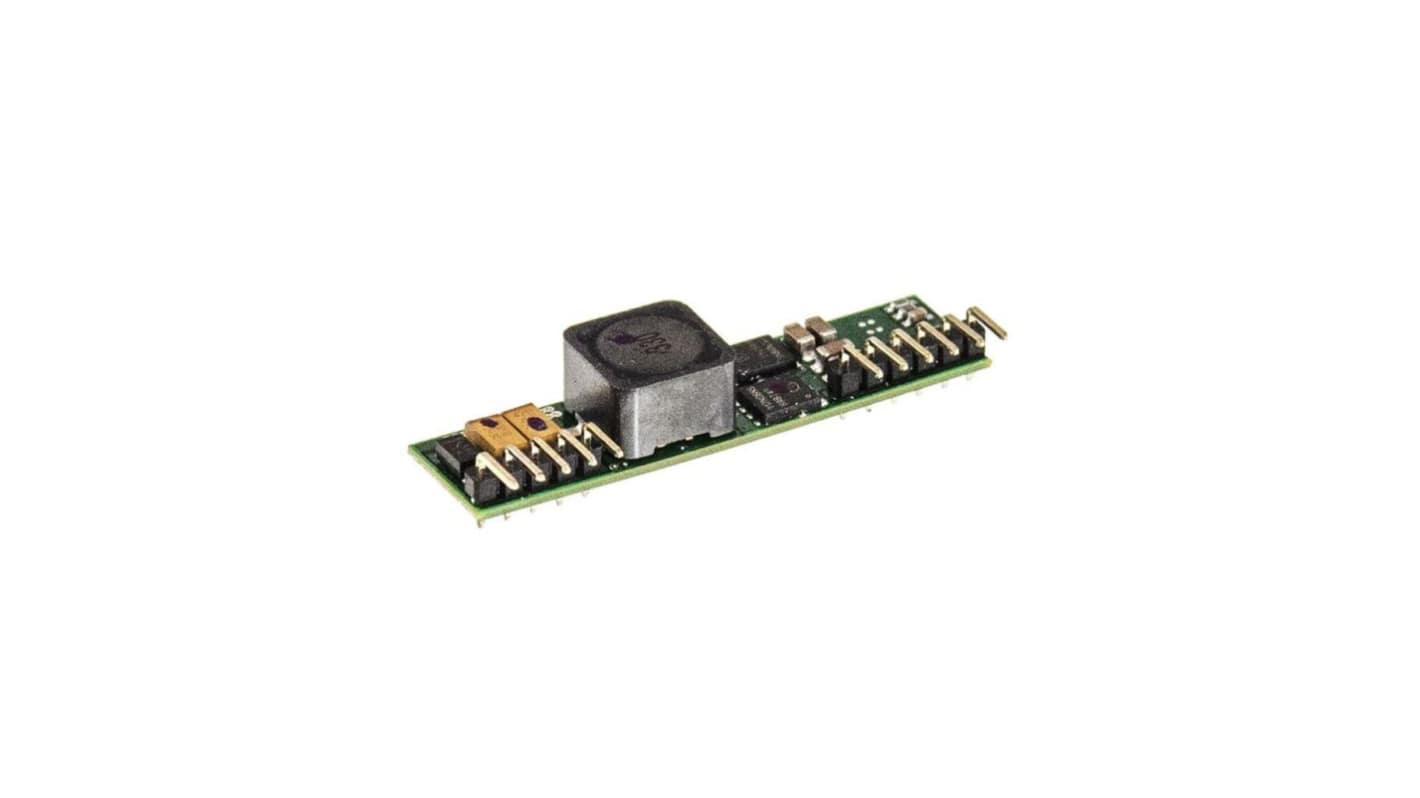

MEAN WELL NID35 DC/DC Converter, 12V dc/, 53V dc Input 2.9 A, 20V dc Input, 85 °C Max Temp -30 °C Min Temp, 11-Pin
- RS Stock No.:
- 424-940
- Distrelec Article No.:
- 303-72-460
- Mfr. Part No.:
- NID35-12
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£7.68
(exc. VAT)
£9.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 105 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.68 |
*price indicative
- RS Stock No.:
- 424-940
- Distrelec Article No.:
- 303-72-460
- Mfr. Part No.:
- NID35-12
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 53V dc | |
| Minimum Input Voltage | 20V dc | |
| MTBF | 12321.5kH | |
| Number of Outputs | 4 | |
| Ripple and Noise | 120mV Pk-Pk | |
| Output Voltage Adjustment Range | ±2 % | |
| Number of Pins | 11 | |
| Output Current 1 | 2.9A | |
| Maximum Output Power | 34.8W | |
| Series | NID35 | |
| Depth | 50.8mm | |
| Width | 13mm | |
| Standards/Approvals | BS EN/EN62368-1(LVD), EAC TP TC 004 Approved | |
| Weight | 9g | |
| Length | 11mm | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 93% | |
| Minimum Operating Temperature | -30°C | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 53V dc | ||
Minimum Input Voltage 20V dc | ||
MTBF 12321.5kH | ||
Number of Outputs 4 | ||
Ripple and Noise 120mV Pk-Pk | ||
Output Voltage Adjustment Range ±2 % | ||
Number of Pins 11 | ||
Output Current 1 2.9A | ||
Maximum Output Power 34.8W | ||
Series NID35 | ||
Depth 50.8mm | ||
Width 13mm | ||
Standards/Approvals BS EN/EN62368-1(LVD), EAC TP TC 004 Approved | ||
Weight 9g | ||
Length 11mm | ||
Maximum Operating Temperature 85°C | ||
Efficiency 93% | ||
Minimum Operating Temperature -30°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The MEANWELL DC-DC Non-isolation Open frame PCB mount converter and Input 20 to 53Vdc and Output 12Vdc at 2.9A and SIP package and Remote ON/OFF.
Warranty pack 36 Months Bring-In
RoHS Compliant
Packing quantity 440
