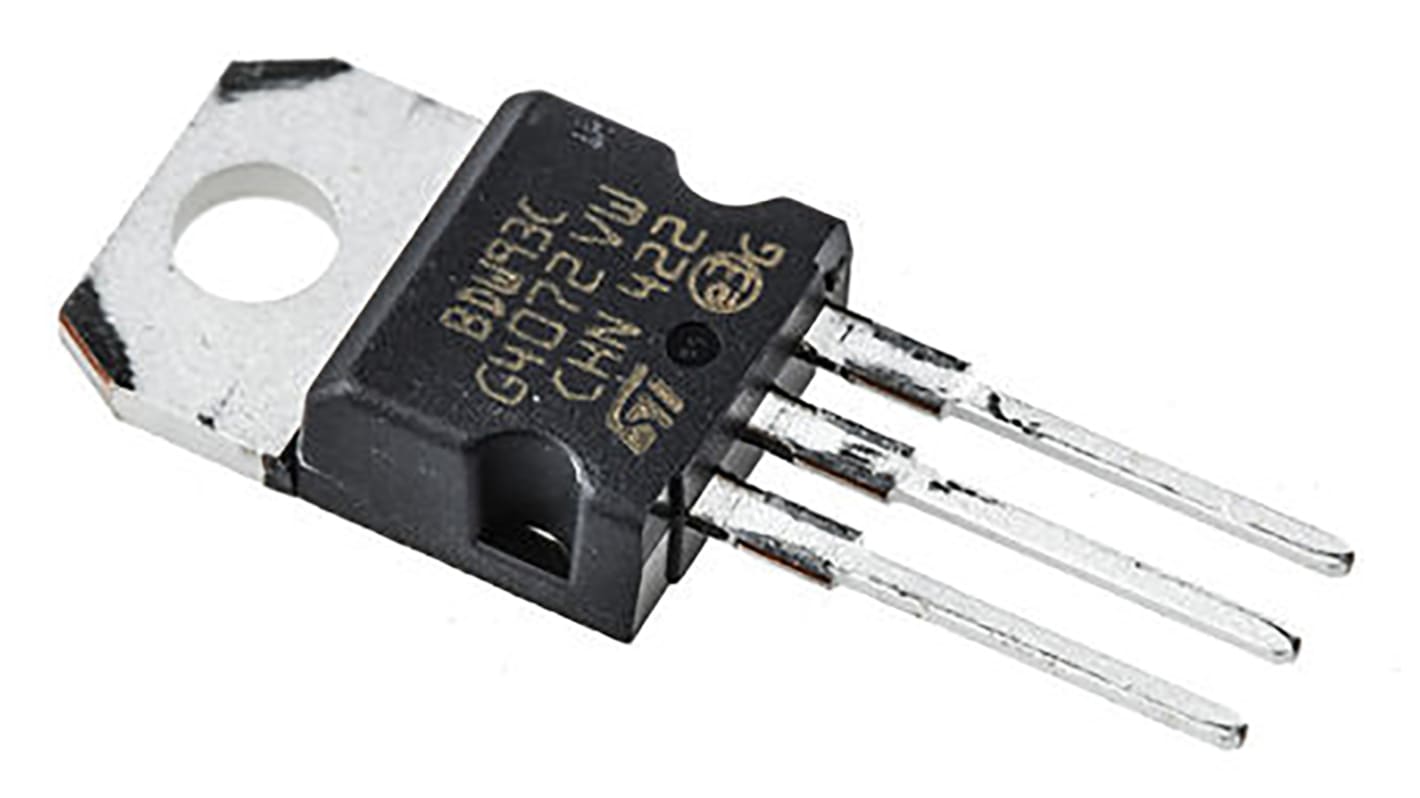

STMicroelectronics BDW93C 1 Darlington Transistor NPN, 12 A 100 V HFE:100, 3-Pin TO-220
- RS Stock No.:
- 102-4092
- Mfr. Part No.:
- BDW93C
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 50 units)*
£25.10
(exc. VAT)
£30.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 450 unit(s) ready to ship
- Plus 50 unit(s) shipping from 29 September 2026
- Plus 1,200 unit(s) shipping from 30 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 450 | £0.502 | £25.10 |
| 500 - 1200 | £0.457 | £22.85 |
| 1250 + | £0.381 | £19.05 |
*price indicative
- RS Stock No.:
- 102-4092
- Mfr. Part No.:
- BDW93C
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Darlington Transistor | |
| Maximum Continuous Collector Current Ic | 12A | |
| Maximum Collector Emitter Voltage Vceo | 100V | |
| Package Type | TO-220 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Minimum DC Current Gain hFE | 100 | |
| Maximum Power Dissipation Pd | 80W | |
| Transistor Polarity | NPN | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Minimum Operating Temperature | -65°C | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2V | |
| Maximum Collector Base Voltage VCBO | 100V | |
| Maximum Operating Temperature | 150°C | |
| Length | 10.4mm | |
| Standards/Approvals | No | |
| Series | BDW93C | |
| Height | 9.15mm | |
| Maximum Collector Cut-off Current | 0.1mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Darlington Transistor | ||
Maximum Continuous Collector Current Ic 12A | ||
Maximum Collector Emitter Voltage Vceo 100V | ||
Package Type TO-220 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Number of Elements per Chip 1 | ||
Minimum DC Current Gain hFE 100 | ||
Maximum Power Dissipation Pd 80W | ||
Transistor Polarity NPN | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Minimum Operating Temperature -65°C | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2V | ||
Maximum Collector Base Voltage VCBO 100V | ||
Maximum Operating Temperature 150°C | ||
Length 10.4mm | ||
Standards/Approvals No | ||
Series BDW93C | ||
Height 9.15mm | ||
Maximum Collector Cut-off Current 0.1mA | ||
Automotive Standard No | ||
NPN Darlington Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
