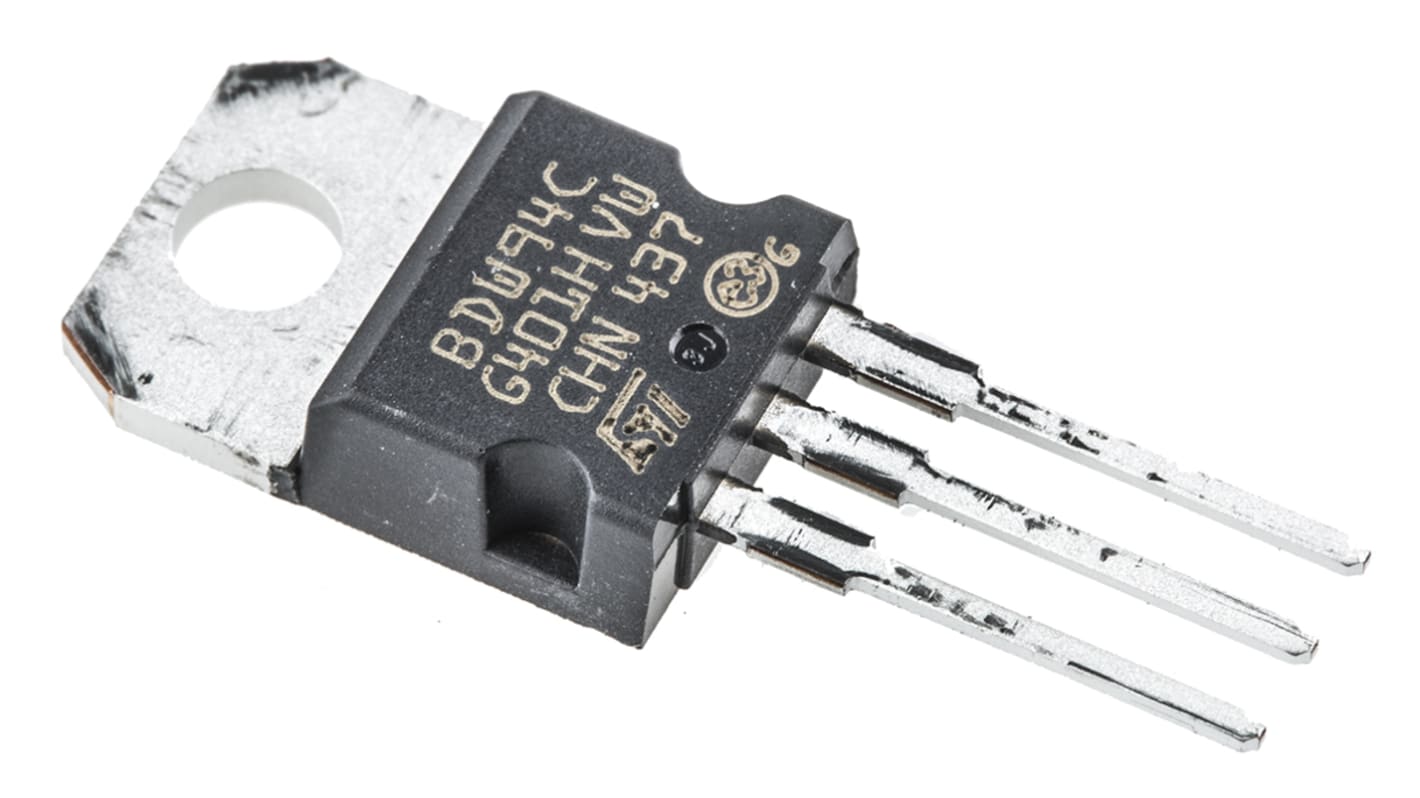

STMicroelectronics BDW94C PNP Darlington Transistor, 12 A 100 V HFE:100, 3-Pin TO-220
- RS Stock No.:
- 485-9058
- Mfr. Part No.:
- BDW94C
- Brand:
- STMicroelectronics
130 In stock - FREE next working day delivery available
75 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£0.768
(exc. VAT)
£0.922
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £0.768 | £3.84 |
| 25 - 45 | £0.722 | £3.61 |
| 50 - 120 | £0.684 | £3.42 |
| 125 - 245 | £0.642 | £3.21 |
| 250 + | £0.618 | £3.09 |
| *price indicative | ||
- RS Stock No.:
- 485-9058
- Mfr. Part No.:
- BDW94C
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details
PNP Darlington Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Specifications
Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Maximum Continuous Collector Current | 12 A |
| Maximum Collector Emitter Voltage | 100 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 100 |
| Maximum Base Emitter Saturation Voltage | 4 V |
| Maximum Collector Base Voltage | 100 V |
| Maximum Collector Emitter Saturation Voltage | 3 V |
| Maximum Collector Cut-off Current | 0.1mA |
| Height | 9.15mm |
| Length | 10.4mm |
| Width | 4.6mm |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Minimum Operating Temperature | -65 °C |
