MH Connectors MHDTPPK 9 Way D-sub Connector
- RS Stock No.:
- 787-3805
- Distrelec Article No.:
- 300-36-132
- Mfr. Part No.:
- MHDTPPK9-DB9P-K
- Brand:
- MH Connectors
Bulk discount available
Subtotal (1 unit)*
£2.16
(exc. VAT)
£2.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 405 unit(s) ready to ship
- Plus 301 unit(s) ready to ship from another location
- Plus 46 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £2.16 |
| 50 - 99 | £1.94 |
| 100 - 249 | £1.84 |
| 250 - 499 | £1.75 |
| 500 + | £1.63 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£2.84
(exc. VAT)
£3.41
(inc. VAT)
- RS Stock No.:
- 787-3805
- Distrelec Article No.:
- 300-36-132
- Mfr. Part No.:
- MHDTPPK9-DB9P-K
- Brand:
- MH Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MH Connectors | |
| Number of Contacts | 9 | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Housing Material | Plastic | |
| Series | MHDTPPK | |
Select all | ||
|---|---|---|
Brand MH Connectors | ||
Number of Contacts 9 | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Housing Material Plastic | ||
Series MHDTPPK | ||
- COO (Country of Origin):
- CN

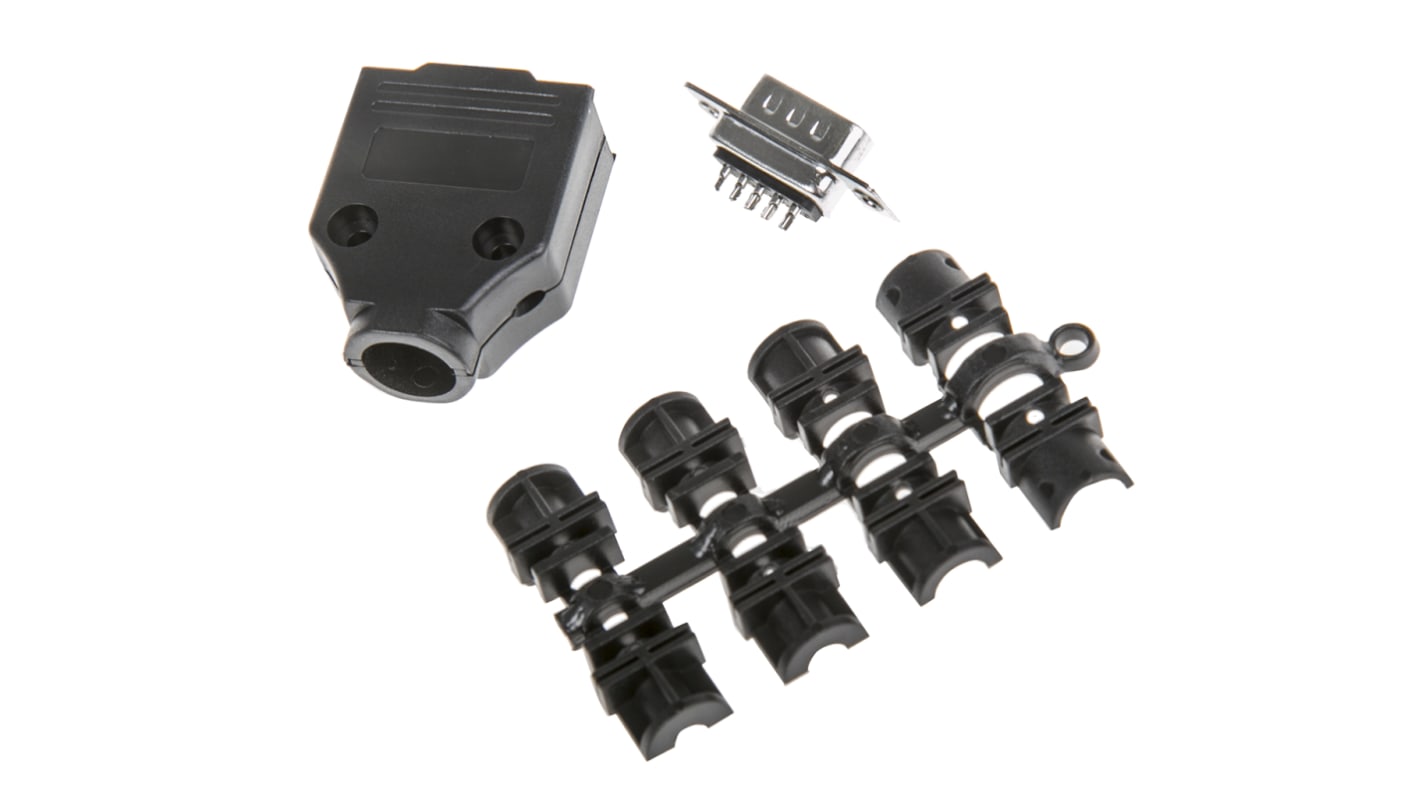

D-Sub Connector Kits with Straight ABS Polylac Plastic Hoods
These Kits of MH Connectors D-Sub MHDTPPK Series are straight 180° ABS Polylac plastic backshells with either Pin or Socket connectors. The mating part of the stamped and formed contacts in the D-Sub connector DBxSx Series are Gold plated with the Solder Bucket terminations being Tin plated.
The Kits comprise of:
Plug or Socket Connector with Solder Buckets
2 Backshell halves
2 4-40 Thumbscrews
2 Housing screws and 2 nuts
1 Set of compression inserts for 4, 5, 7 and 9 mm diameter cable (Note maximum cable diameter is 13 mm)
2 Backshell halves
2 4-40 Thumbscrews
2 Housing screws and 2 nuts
1 Set of compression inserts for 4, 5, 7 and 9 mm diameter cable (Note maximum cable diameter is 13 mm)
Approvals
UL 94 V-0 recognised
D-Sub Connector Kits - MH
A range of D-sub Kits which contain a connector, hood and associated screws and cable glands or clamps as specified.
