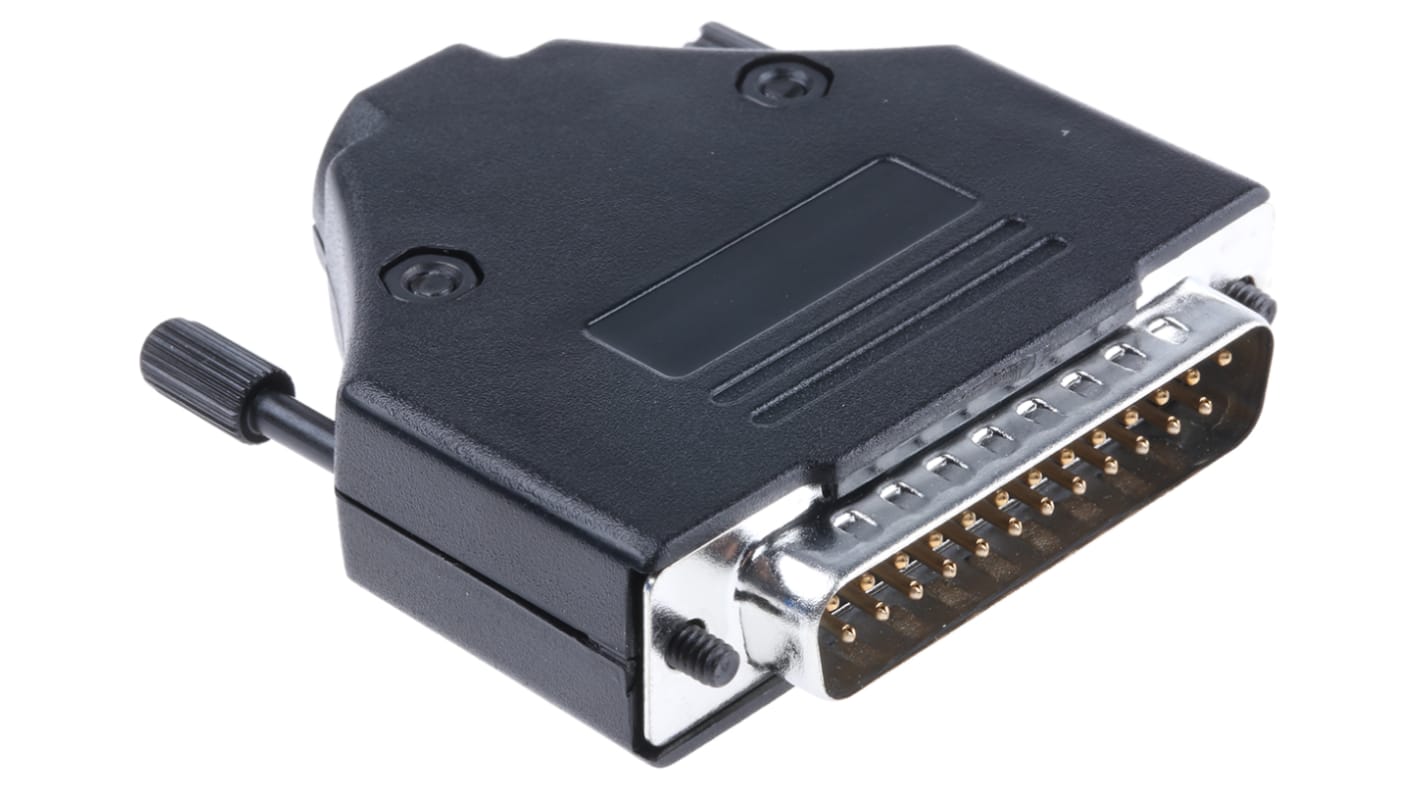

MH Connectors MHDTPPK 25 Way D-sub Connector

View all D Sub Connectors
Bulk discount available

Subtotal (1 unit)*

£2.99

(exc. VAT)

£3.59

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 362 unit(s) ready to ship
  • Plus 70 unit(s) ready to ship from another location
  • Plus 528 unit(s) shipping from 12 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 49£2.99
50 - 99£2.72
100 - 249£2.50
250 - 499£2.38
500 +£2.26

*price indicative

D-Sub-Backshells
D Sub Backshells
Don't forget D Sub Backshells!
Shop D Sub Backshells now
RS Stock No.:
787-3814
Mfr. Part No.:
MHDTPPK25-DB25P-K
Brand:
MH Connectors
Find similar products by selecting one or more attributes.
Select all

Brand

MH Connectors

Number of Contacts

25

Body Orientation

Straight

Termination Method

Solder

Housing Material

Plastic

Series

MHDTPPK

COO (Country of Origin):
CN

D-Sub Connector Kits with Straight ABS Polylac Plastic Hoods


These Kits of MH Connectors D-Sub MHDTPPK Series are straight 180° ABS Polylac plastic backshells with either Pin or Socket connectors. The mating part of the stamped and formed contacts in the D-Sub connector DBxSx Series are Gold plated with the Solder Bucket terminations being Tin plated.

The Kits comprise of:

Plug or Socket Connector with Solder Buckets
2 Backshell halves
2 4-40 Thumbscrews
2 Housing screws and 2 nuts
1 Set of compression inserts for 4, 5, 7 and 9 mm diameter cable (Note maximum cable diameter is 13 mm)

Approvals

UL 94 V-0 recognised


D-Sub Connector Kits - MH


A range of D-sub Kits which contain a connector, hood and associated screws and cable glands or clamps as specified.
