- RS Stock No.:
- 787-3836
- Mfr. Part No.:
- MHDTPK25-DB25P-K
- Brand:
- MH Connectors
132 In stock - FREE next working day delivery available
20 available from Europe for delivery within 1 working day(s).
Added
Price Each
£2.55
(exc. VAT)
£3.06
(inc. VAT)
Units | Per unit |
1 - 49 | £2.55 |
50 - 99 | £2.32 |
100 - 249 | £2.18 |
250 - 499 | £2.06 |
500 + | £1.90 |
- RS Stock No.:
- 787-3836
- Mfr. Part No.:
- MHDTPK25-DB25P-K
- Brand:
- MH Connectors
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
D-Sub Connector Kits with Straight Metalized Plastic Hoods
These Kits of MH Connectors D-Sub MHDTPK Series are Straight 180° ABS Polylac Nickel plated backshells with either Pin or Socket connectors. The mating part of the stamped and formed contacts in the MHDBxSx Series connectors are Gold plated with the Solder Bucket terminations being Tin plated.

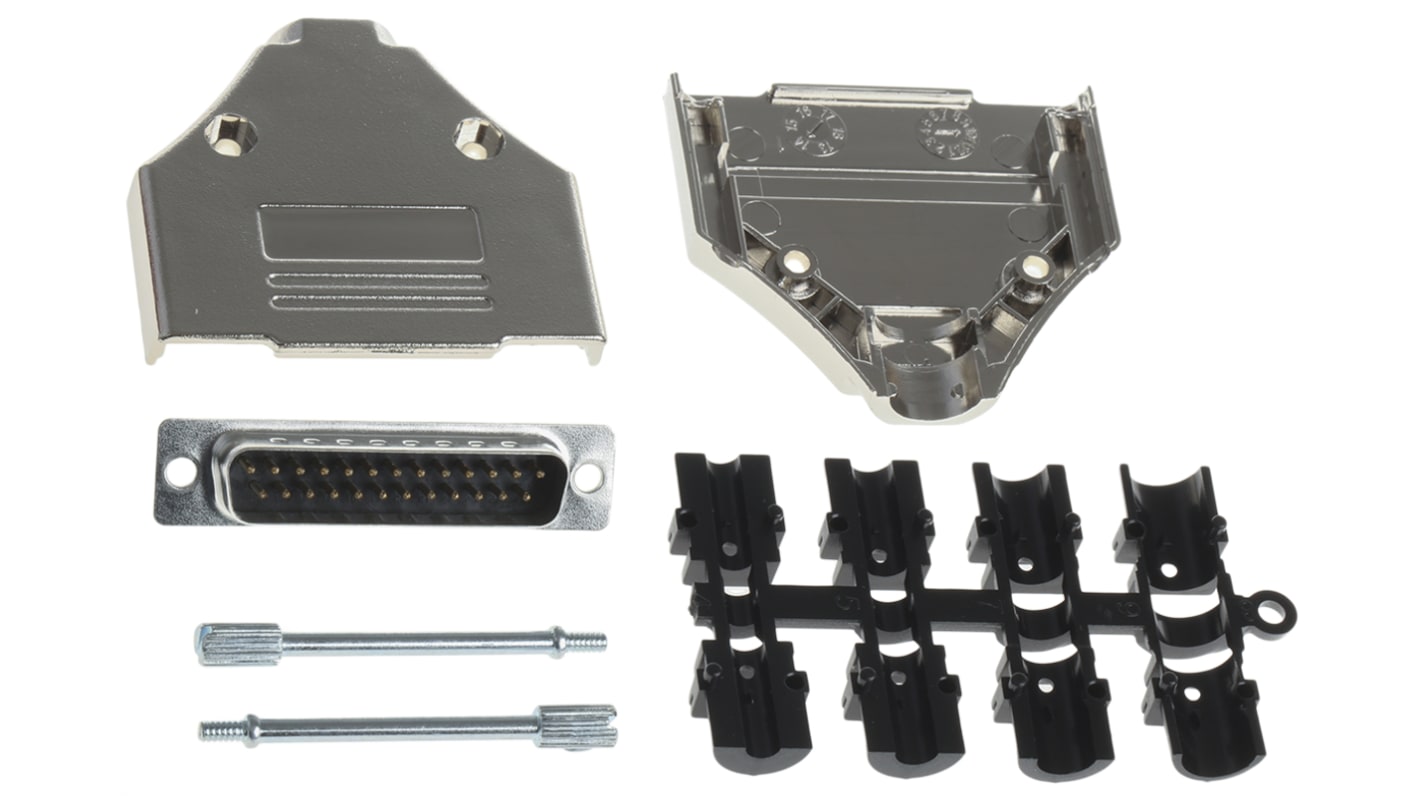

The Kits comprise of:
Plug or Socket Connector with Solder Buckets
2 Backshell halves
2 4-40 Thumbscrews
2 Housing screws and 2 nuts
1 Set of non-metalized compression inserts for 4, 5, 7 and 9 mm diameter cable (Note maximum cable diameter is 13 mm)
2 Backshell halves
2 4-40 Thumbscrews
2 Housing screws and 2 nuts
1 Set of non-metalized compression inserts for 4, 5, 7 and 9 mm diameter cable (Note maximum cable diameter is 13 mm)
Approvals
UL 94 V-0 recognized
D-Sub Connector Kits - MH
A range of D-sub Kits which contain a connector, hood and associated screws and cable glands or clamps as specified.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 25 |
Body Orientation | Straight |
Termination Method | Solder |
Housing Material | Glass Fibre Reinforced PET |
Contact Plating | Tin |
Contact Material | Copper Alloy |
Series | MHDTPK |
