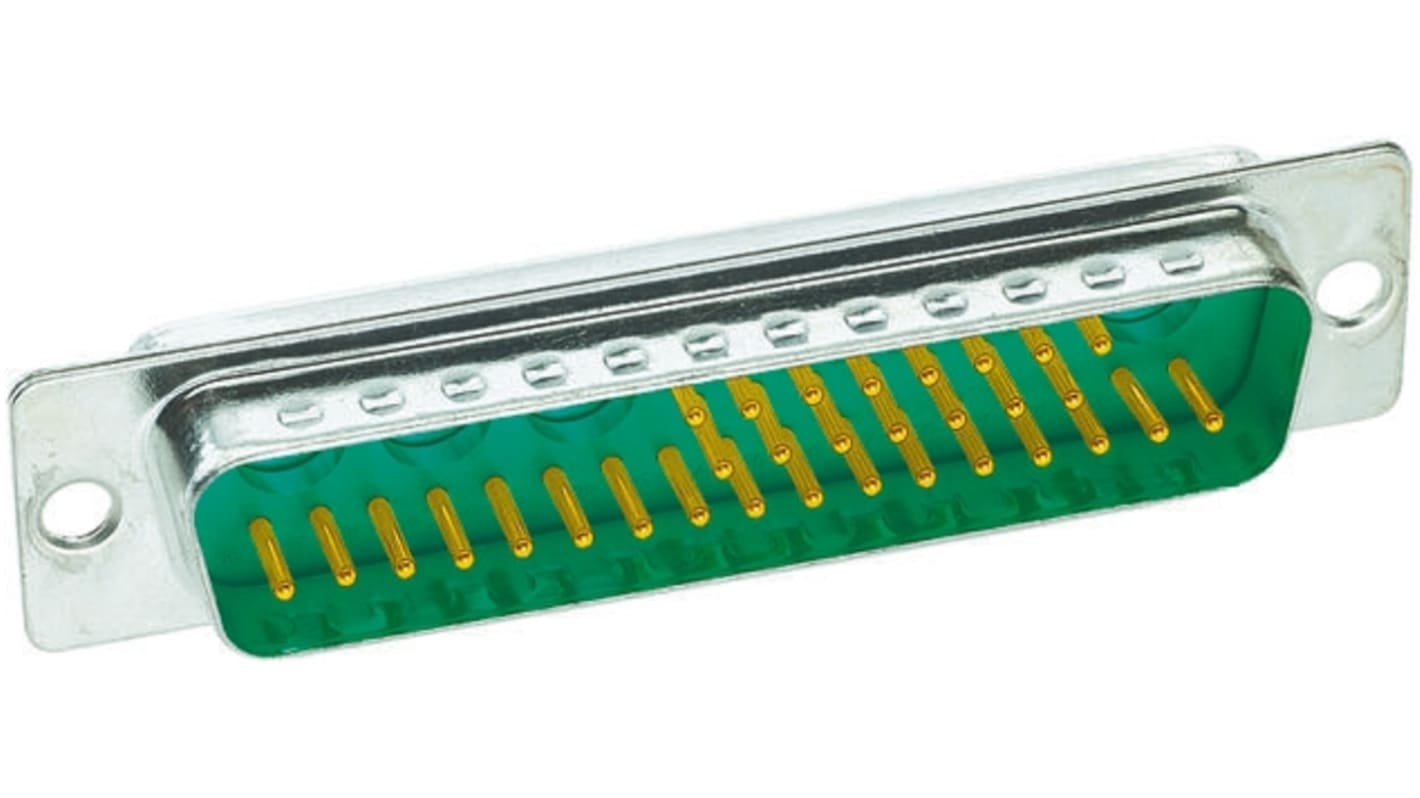

HARTING 36 Way Panel Mount D-sub Connector Plug
- RS Stock No.:
- 693-0976
- Mfr. Part No.:
- 09695117364
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)*
£14.02
(exc. VAT)
£16.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £14.02 |
| 50 - 99 | £12.65 |
| 100 - 249 | £11.21 |
| 250 - 499 | £9.82 |
| 500 + | £9.12 |
*price indicative
- RS Stock No.:
- 693-0976
- Mfr. Part No.:
- 09695117364
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 36 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| D Connector Type | Mixed Contact D-Sub | |
| D-Sub Shell Size | D | |
| Termination Method | Solder | |
| Current Rating | 5.0A | |
| Mixed Contact Layout | 36W4 | |
| Housing Material | Steel | |
| Length | 66.9mm | |
| Width | 15.4mm | |
| Depth | 14.3mm | |
| Contact Material | Copper Alloy | |
| Dimensions | 66.9 x 15.4 x 14.3mm | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55.0°C | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 36 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
D Connector Type Mixed Contact D-Sub | ||
D-Sub Shell Size D | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Mixed Contact Layout 36W4 | ||
Housing Material Steel | ||
Length 66.9mm | ||
Width 15.4mm | ||
Depth 14.3mm | ||
Contact Material Copper Alloy | ||
Dimensions 66.9 x 15.4 x 14.3mm | ||
Contact Plating Gold | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55.0°C | ||
Mixed shells with pre-mounted signal solder cup contacts
Performance level 3
Solder cup termination
Shell plated steel
Flange through hole 3.1 mm
Solder cup termination
Shell plated steel
Flange through hole 3.1 mm
Standards
DIN 41 652 T1
D-Sub Mixed - Harting
