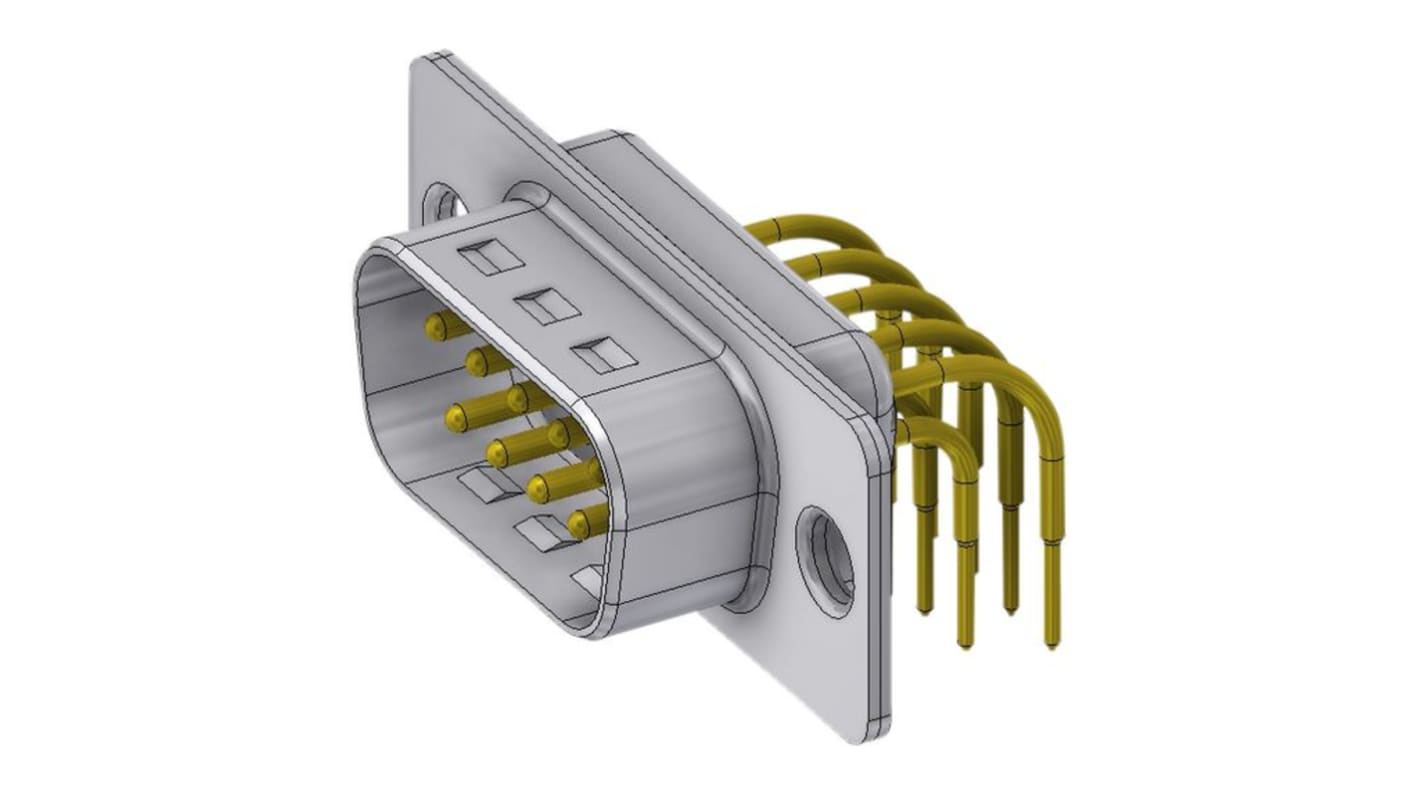

Deltron Connectors DTS 9 Way Right Angle PCB D-Sub Connector, with Screw Male
- RS Stock No.:
- 288-7530
- Distrelec Article No.:
- 301-32-743
- Mfr. Part No.:
- DTS09PYC/2
- Brand:
- Deltron Connectors
Subtotal (1 unit)*
£5.36
(exc. VAT)
£6.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 349 unit(s) ready to ship from another location
- Plus 181 unit(s) shipping from 06 March 2026
- Plus 100 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.36 |
*price indicative
- RS Stock No.:
- 288-7530
- Distrelec Article No.:
- 301-32-743
- Mfr. Part No.:
- DTS09PYC/2
- Brand:
- Deltron Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron Connectors | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 9 | |
| Orientation | Right Angle | |
| Current | 7.5A | |
| Mount Type | PCB | |
| Connector Gender | Male | |
| Mounting Hardware | Screw | |
| Housing Material | Thermoplastic | |
| Voltage | 125 V | |
| Termination Type | PCB | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Contact Material | Copper Alloy | |
| Contact Plating | Copper | |
| Series | DTS | |
| Select all | ||
|---|---|---|
Brand Deltron Connectors | ||
Product Type D-Sub Connector | ||
Number of Contacts 9 | ||
Orientation Right Angle | ||
Current 7.5A | ||
Mount Type PCB | ||
Connector Gender Male | ||
Mounting Hardware Screw | ||
Housing Material Thermoplastic | ||
Voltage 125 V | ||
Termination Type PCB | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Contact Material Copper Alloy | ||
Contact Plating Copper | ||
Series DTS | ||
- COO (Country of Origin):
- CH
The versatile and reliable D-Sub plug suitable for a variety of applications. With RoHS compliance and high-quality materials, this product is designed to meet your needs and exceed your expectations.
RoHS compliant for environmentally friendly use
Working voltage of 125V for reliable performance
Current rating of 7.5A for high power applications
Insulation resistance of >5G for safe operation
Temperature range of -55 to +125 C for extreme environments
Steel tin plated shell for durability and longevity
