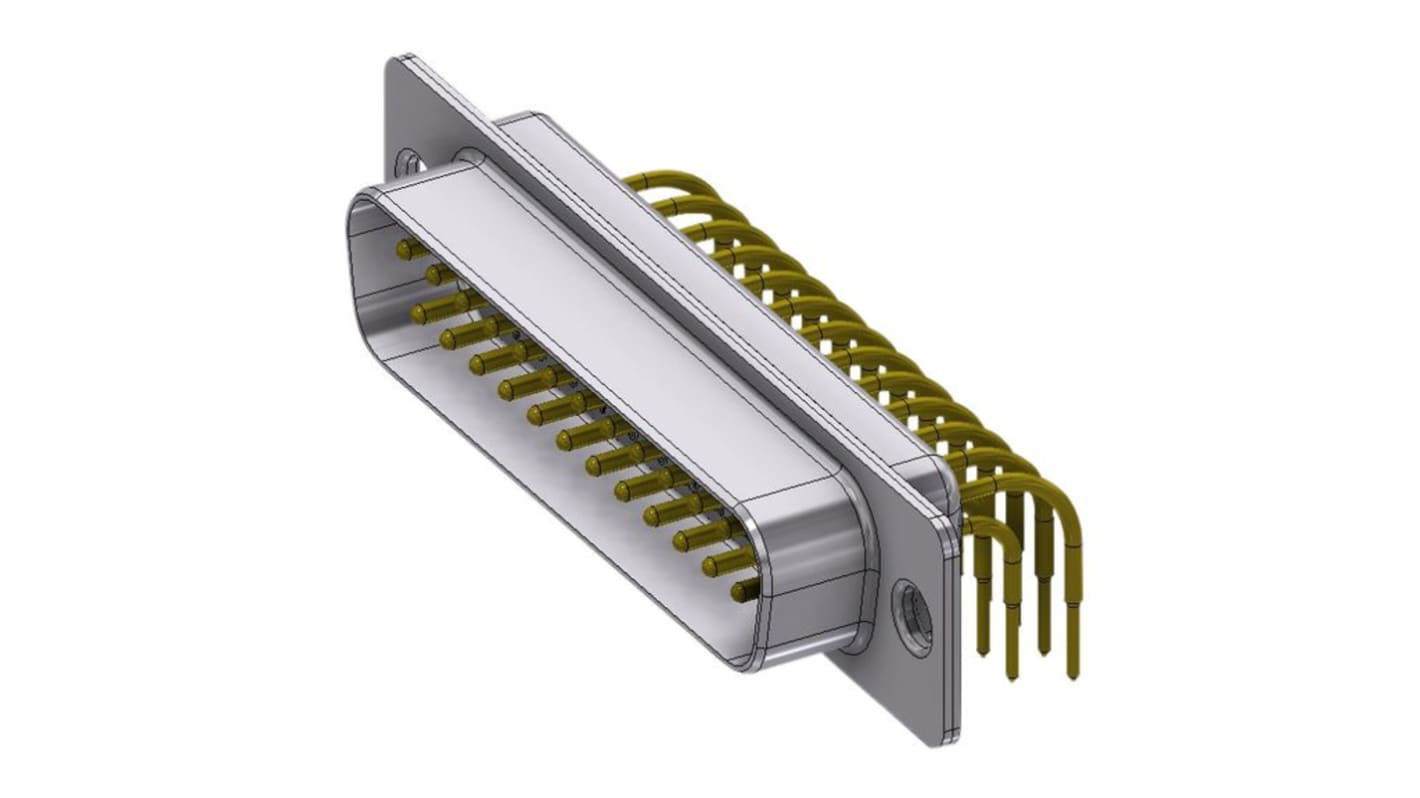

Deltron Connectors DT 25 Way Right Angle 2.77 mm Pitch PCB D-Sub Connector, with Screw Lock Male
- RS Stock No.:
- 288-7520
- Distrelec Article No.:
- 144-16-822
- Mfr. Part No.:
- DT25PYC/2
- Brand:
- Deltron Connectors
Subtotal (1 unit)*
£12.00
(exc. VAT)
£14.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 30 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.00 |
*price indicative
- RS Stock No.:
- 288-7520
- Distrelec Article No.:
- 144-16-822
- Mfr. Part No.:
- DT25PYC/2
- Brand:
- Deltron Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron Connectors | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 25 | |
| Current | 7.5A | |
| Orientation | Right Angle | |
| Mount Type | PCB | |
| Connector Gender | Male | |
| Mounting Hardware | Screw Lock | |
| Housing Material | Thermoplastic | |
| Voltage | 125 V | |
| Termination Type | PCB | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Contact Material | Copper Alloy | |
| Series | DT | |
| Contact Plating | Gold over Nickel | |
| Pitch | 2.77mm | |
| Select all | ||
|---|---|---|
Brand Deltron Connectors | ||
Product Type D-Sub Connector | ||
Number of Contacts 25 | ||
Current 7.5A | ||
Orientation Right Angle | ||
Mount Type PCB | ||
Connector Gender Male | ||
Mounting Hardware Screw Lock | ||
Housing Material Thermoplastic | ||
Voltage 125 V | ||
Termination Type PCB | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Contact Material Copper Alloy | ||
Series DT | ||
Contact Plating Gold over Nickel | ||
Pitch 2.77mm | ||
- COO (Country of Origin):
- CH
The RoHS compliant connector designed with high-quality materials and precise construction. With a working voltage of 125V and current rating of 7.5A, this connector ensures reliable performance in various applications. The shell made of steel with zinc blue chromated finish offers durability and stability, while the thermoplastic UL 94-V-0 white insulator provides excellent insulation resistance.
RoHS compliant for environmental sustainability
Working voltage of 125V and current rating of 7.5A for reliable performance
Steel shell with zinc blue chromated finish for durability
Thermoplastic UL 94-V-0 white insulator for excellent insulation resistance
Exceptional tolerance levels for precise connections
Temperature range from -55 to +125°C for versatile applications
