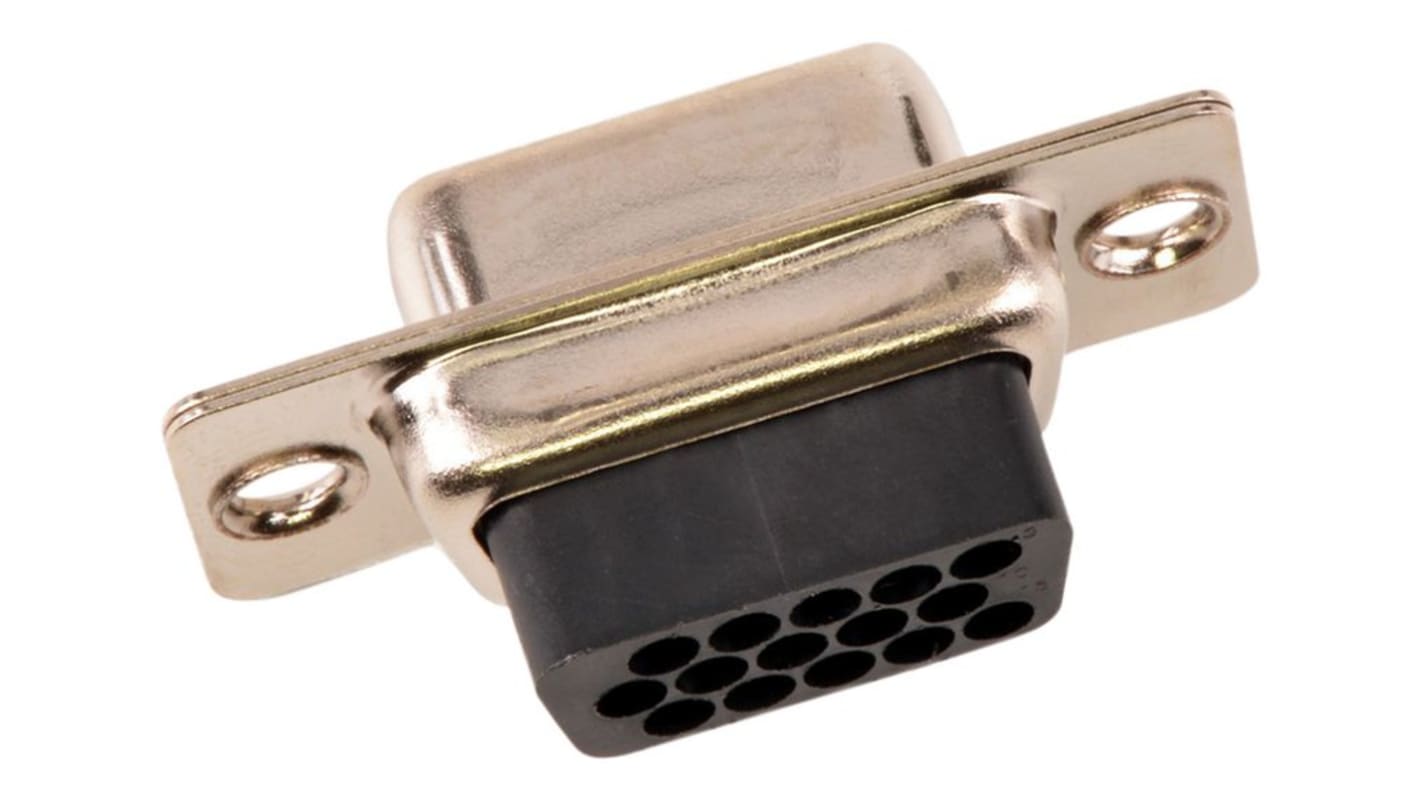

FCT from Molex 173113 15 Way Straight 1.98 mm Pitch Panel Mount D-Sub Connector Female
- RS Stock No.:
- 285-7908
- Distrelec Article No.:
- 301-64-612
- Mfr. Part No.:
- 173113-0073
- Brand:
- FCT from Molex
Subtotal (1 unit)*
£2.69
(exc. VAT)
£3.23
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 152 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £2.69 |
*price indicative
- RS Stock No.:
- 285-7908
- Distrelec Article No.:
- 301-64-612
- Mfr. Part No.:
- 173113-0073
- Brand:
- FCT from Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FCT from Molex | |
| Number of Contacts | 15 | |
| Product Type | D-Sub Connector | |
| Current | 5A | |
| Orientation | Straight | |
| Mount Type | Panel Mount | |
| Connector Gender | Female | |
| Housing Material | Steel Shell | |
| Voltage | 1000V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 130°C | |
| Contact Gender | Female | |
| Standards/Approvals | RoHS Compliant | |
| Contact Plating | Gold | |
| Series | 173113 | |
| Contact Material | Copper Alloy | |
| Pitch | 1.98mm | |
| Select all | ||
|---|---|---|
Brand FCT from Molex | ||
Number of Contacts 15 | ||
Product Type D-Sub Connector | ||
Current 5A | ||
Orientation Straight | ||
Mount Type Panel Mount | ||
Connector Gender Female | ||
Housing Material Steel Shell | ||
Voltage 1000V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 130°C | ||
Contact Gender Female | ||
Standards/Approvals RoHS Compliant | ||
Contact Plating Gold | ||
Series 173113 | ||
Contact Material Copper Alloy | ||
Pitch 1.98mm | ||
- COO (Country of Origin):
- TW
The FCT High-Density D-Sub Crimp Housing, Female, 15 Circuits is a versatile and durable connector suitable for various applications. With a pitch of 1.98mm and a temperature range of -55° to +105°C, this connector is designed to withstand harsh environments while providing reliable connectivity.
High-density design with 15 circuits for efficient connectivity
Polarized to mating part for easy installation
Nickel plating for enhanced durability
Straight orientation for simple integration
Steel shell material for robust construction
