FCT from Molex 173113 15 Way Straight 1.98 mm Pitch Panel Mount D-Sub Connector Male
- RS Stock No.:
- 285-7905
- Distrelec Article No.:
- 301-64-400
- Mfr. Part No.:
- CT09-15P7 / 1731130002
- Brand:
- FCT from Molex
Subtotal (1 unit)*
£2.19
(exc. VAT)
£2.63
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 200 unit(s) shipping from 04 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.19 |
*price indicative
- RS Stock No.:
- 285-7905
- Distrelec Article No.:
- 301-64-400
- Mfr. Part No.:
- CT09-15P7 / 1731130002
- Brand:
- FCT from Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FCT from Molex | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 15 | |
| Orientation | Straight | |
| Mount Type | Panel Mount | |
| Connector Gender | Male | |
| Connector Type D | DE-15 | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Crimp | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Series | 173113 | |
| Pitch | 1.98mm | |
| Select all | ||
|---|---|---|
Brand FCT from Molex | ||
Product Type D-Sub Connector | ||
Number of Contacts 15 | ||
Orientation Straight | ||
Mount Type Panel Mount | ||
Connector Gender Male | ||
Connector Type D DE-15 | ||
Minimum Operating Temperature -55°C | ||
Termination Type Crimp | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Series 173113 | ||
Pitch 1.98mm | ||
- COO (Country of Origin):
- TW

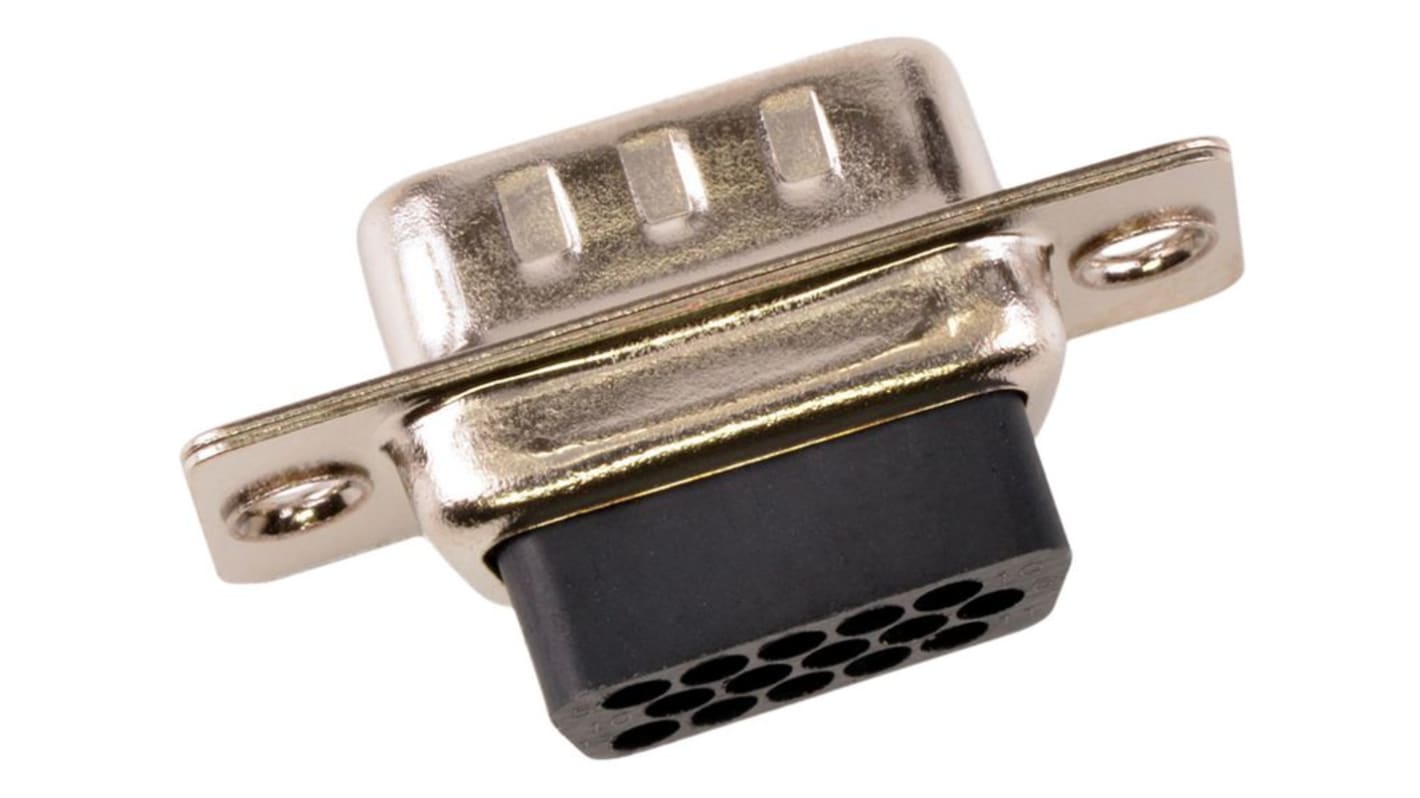

The FCT High-Density D-Sub Crimp Housing is a male connector with 15 circuits, designed for various electronic applications. It is a versatile and reliable connector suitable for use in multiple settings.
High-density male D-Sub connector with 15 circuits for efficient connectivity
Crimp housing made from durable PBT resin for long-lasting performance
Nickel-plated shell for enhanced conductivity and corrosion resistance
Straight orientation and flange panel mount method for easy installation
Suitable for use with wire sizes AWG 22, 24, 26, 28 for flexibility in applications
