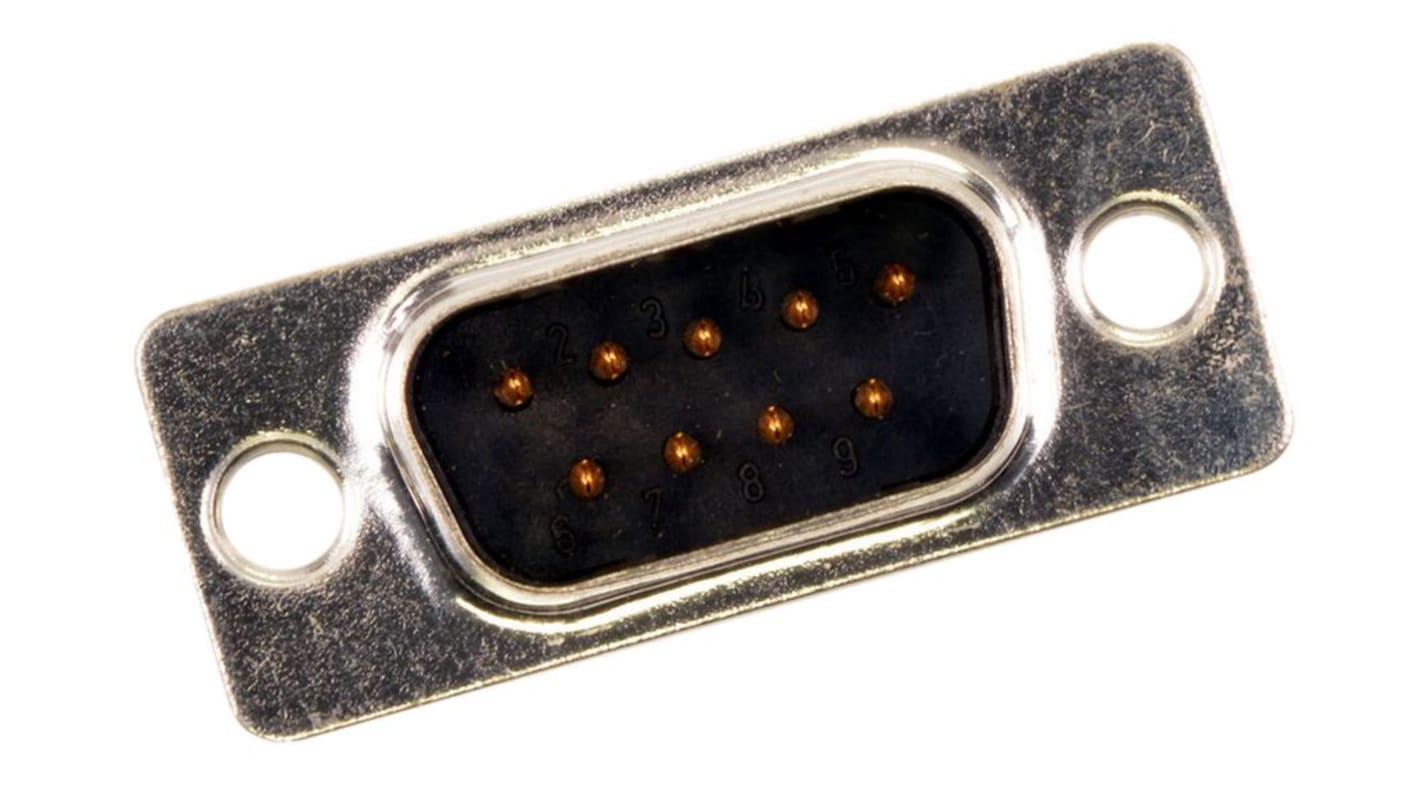

FCT from Molex 172704 9 Way Straight 2.84 mm Pitch Solder D-Sub Connector Male
- RS Stock No.:
- 285-7899
- Distrelec Article No.:
- 301-56-802
- Mfr. Part No.:
- 172704-0075
- Brand:
- FCT from Molex
Subtotal (1 unit)*
£3.19
(exc. VAT)
£3.83
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1,005 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £3.19 |
*price indicative
- RS Stock No.:
- 285-7899
- Distrelec Article No.:
- 301-56-802
- Mfr. Part No.:
- 172704-0075
- Brand:
- FCT from Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FCT from Molex | |
| Number of Contacts | 9 | |
| Product Type | D-Sub Connector | |
| Current | 7.5A | |
| Orientation | Straight | |
| Mount Type | Solder | |
| Connector Gender | Male | |
| Housing Material | Steel Shell Material | |
| Voltage | 1000V | |
| Termination Type | Solder Cup | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 130°C | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS, IEC 60807-3 | |
| Series | 172704 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Pitch | 2.84mm | |
| Select all | ||
|---|---|---|
Brand FCT from Molex | ||
Number of Contacts 9 | ||
Product Type D-Sub Connector | ||
Current 7.5A | ||
Orientation Straight | ||
Mount Type Solder | ||
Connector Gender Male | ||
Housing Material Steel Shell Material | ||
Voltage 1000V | ||
Termination Type Solder Cup | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 130°C | ||
Contact Gender Male | ||
Standards/Approvals RoHS, IEC 60807-3 | ||
Series 172704 | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Pitch 2.84mm | ||
- COO (Country of Origin):
- DE
The FCT Standard-Density D-Sub Connector is a high-quality male connector with 9 circuits and a durable construction. It is designed for various applications where reliable connectivity is essential, offering a secure and stable connection.
Male D-Sub connector with straight orientation for easy installation
Solder cup termination style for efficient connectivity
Gold plating on contacts for enhanced signal transmission
500 mating cycles for long-lasting performance
IP20 rated for protection against dust and moisture
Copper alloy contact material for superior conductivity
Steel shell material for durability and strength
