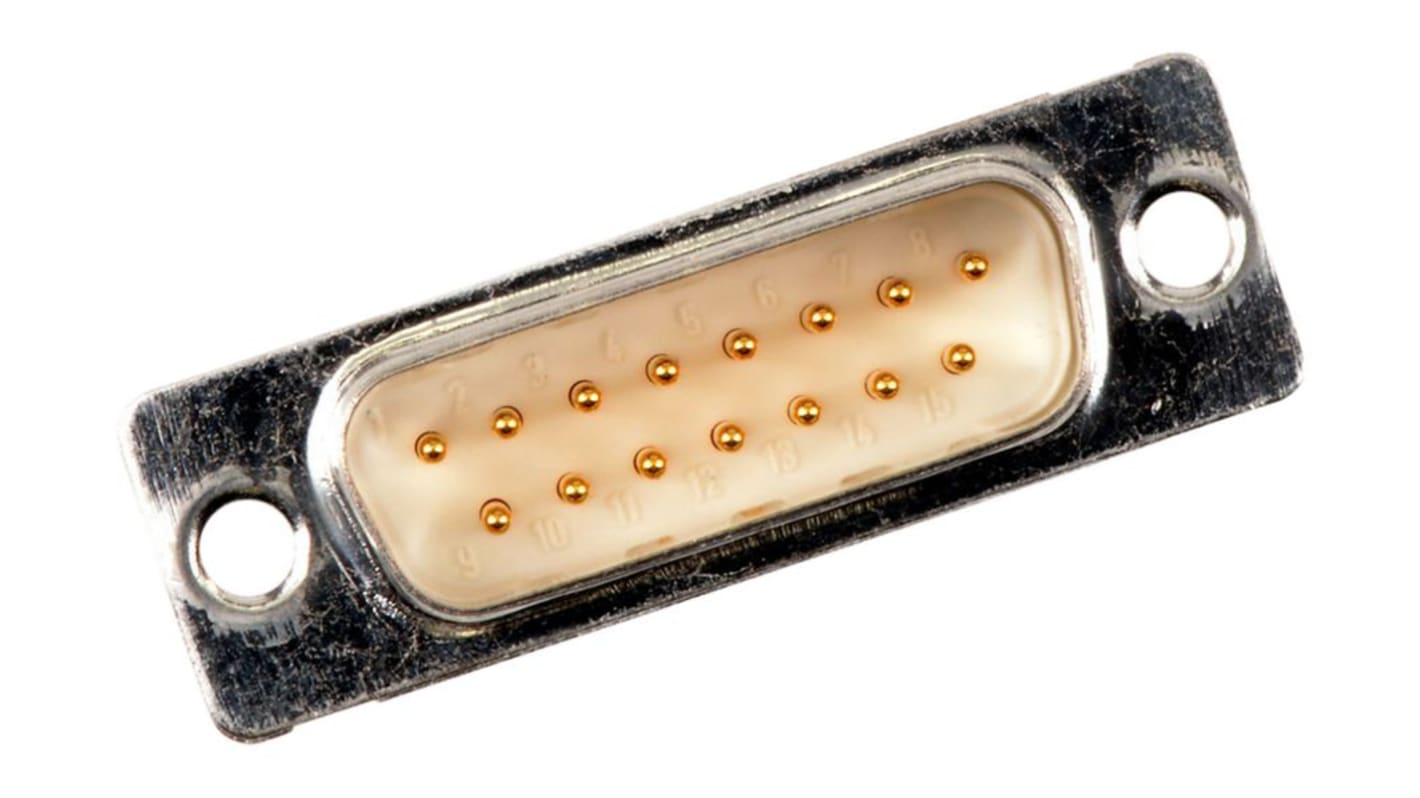

FCT from Molex 172704 15 Way Straight 2.84 mm Pitch Solder D-Sub Connector Male
- RS Stock No.:
- 285-7898
- Distrelec Article No.:
- 301-56-804
- Mfr. Part No.:
- 172704-0063
- Brand:
- FCT from Molex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Bag of 5000)
£0.281
(exc. VAT)
£0.337
(inc. VAT)
- RS Stock No.:
- 285-7898
- Distrelec Article No.:
- 301-56-804
- Mfr. Part No.:
- 172704-0063
- Brand:
- FCT from Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FCT from Molex | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 15 | |
| Current | 7.5A | |
| Orientation | Straight | |
| Mount Type | Solder | |
| Connector Gender | Male | |
| Voltage | 1000V | |
| Termination Type | Solder Cup | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | IEC 60807-3, RoHS | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Series | 172704 | |
| Pitch | 2.84mm | |
| Select all | ||
|---|---|---|
Brand FCT from Molex | ||
Product Type D-Sub Connector | ||
Number of Contacts 15 | ||
Current 7.5A | ||
Orientation Straight | ||
Mount Type Solder | ||
Connector Gender Male | ||
Voltage 1000V | ||
Termination Type Solder Cup | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals IEC 60807-3, RoHS | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Series 172704 | ||
Pitch 2.84mm | ||
- COO (Country of Origin):
- DE
The FCT Standard-Density D-Sub Connector is a reliable and durable product designed for a variety of applications. With a male gender, straight orientation, and solder cup termination style, this connector is ideal for use in electronic devices that require a secure connection. The gold plating ensures excellent conductivity, while the steel shell provides robust protection. Whether you're working on a DIY project or need to replace a damaged connector, this product is sure to meet your needs.
Male D-Sub Connector with 15 circuits for efficient signal transmission
Gold plating over copper alloy contacts for superior conductivity
Steel shell for durability and protection
Solder cup termination style for easy installation
IP20 rated for dust and moisture resistance
Operational temperature range from -55°C to +125°C for versatile use
