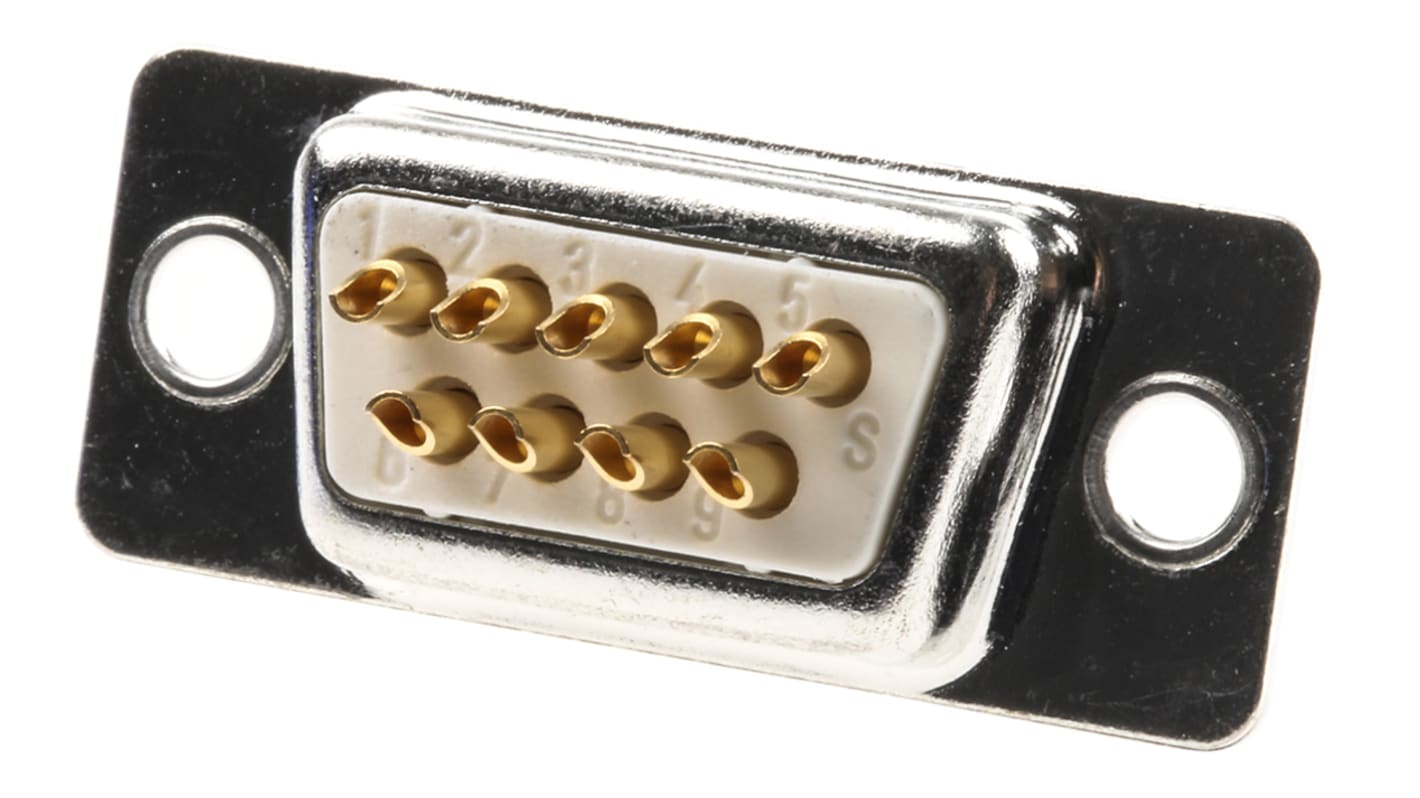

FCT from Molex 172704 9 Way Straight 2.84 mm Pitch Panel Mount D-Sub Connector Female
- RS Stock No.:
- 812-6107
- Distrelec Article No.:
- 144-16-655
- Mfr. Part No.:
- F09S0G2 / 1727040163
- Brand:
- FCT from Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£4.68
(exc. VAT)
£5.62
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 183 unit(s) shipping from 15 June 2026
- Plus 2,100 unit(s) shipping from 03 July 2026
- Plus 3,300 unit(s) shipping from 11 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £4.68 |
| 25 - 99 | £3.30 |
| 100 - 499 | £3.11 |
| 500 + | £2.98 |
*price indicative
- RS Stock No.:
- 812-6107
- Distrelec Article No.:
- 144-16-655
- Mfr. Part No.:
- F09S0G2 / 1727040163
- Brand:
- FCT from Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FCT from Molex | |
| Number of Contacts | 9 | |
| Product Type | D-Sub Connector | |
| Orientation | Straight | |
| Current | 7.5A | |
| Mount Type | Panel Mount | |
| Connector Gender | Female | |
| Connector Type D | D-Sub | |
| D-Sub Shell Size | E | |
| Housing Material | Steel | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Copper Alloy | |
| Series | 172704 | |
| Contact Plating | Gold over Nickel | |
| Pitch | 2.84mm | |
| Select all | ||
|---|---|---|
Brand FCT from Molex | ||
Number of Contacts 9 | ||
Product Type D-Sub Connector | ||
Orientation Straight | ||
Current 7.5A | ||
Mount Type Panel Mount | ||
Connector Gender Female | ||
Connector Type D D-Sub | ||
D-Sub Shell Size E | ||
Housing Material Steel | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Copper Alloy | ||
Series 172704 | ||
Contact Plating Gold over Nickel | ||
Pitch 2.84mm | ||
- COO (Country of Origin):
- DE
FCT from Molex D-Sub Connector, 7.5A Current Rating, 2.84mm Pitch - F Series - F09S0G2 / 1727040163
Want to minimise mechanical strain in your electrical system? Choose this female D-sub connector by FCT from Molex. It has 9 contacts for easy compatibility with commonly used 9-pin plugs. A maximum current rating of 7.5A per contact means you can use this device in medium-powered systems. Installation is simple thanks to its panel mounting style, straight body orientation and solder termination.
• Gold-over-nickel-plated copper alloy contacts for low resistance and high conductivity to ensure an effective connection
• Durable steel housing for resistance to impact and corrosion
• Wide operating temperature range of -55°C to +125°C for use in harsh environments
Applications
• Electrical systems
• Energy solutions
How durable is this connector?
This unit has a robust lifespan of up to 200 mating cycles, so it can withstand long-term use.
FCT - Solder Cup D-sub Connector
A range of D-Sub Plug and Socket connectors with 20 AWG Solder Pot termination. These D-Sub Plug and Socket connectors have gold plated machined contacts with a performance class 2 (200 cycles). Shell material is Tin plated steel with the mounting holes having a diameter of 3.1 mm and the Insert material is white Polyester UL 94 V-0 rated for these D-Sub Plug and Socket connectors.
For Hoods see stock number 812-6245 typical.
