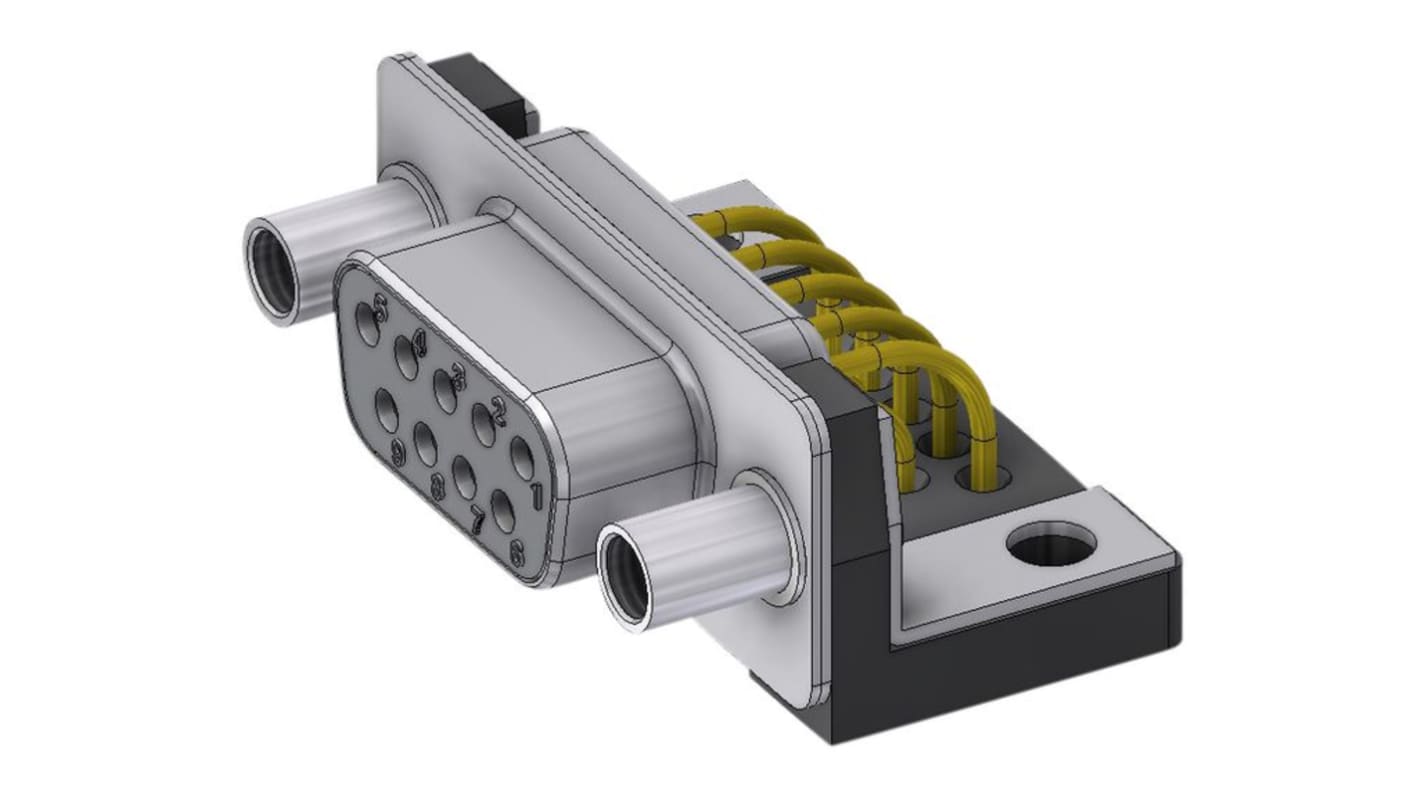

Deltron Connectors DTS 9 Way Right Angle 2.54 mm Pitch PCB D-Sub Connector Female
- RS Stock No.:
- 285-7392
- Distrelec Article No.:
- 144-16-857
- Mfr. Part No.:
- DTS09SYC/2M66UN
- Brand:
- Deltron Connectors
Subtotal (1 unit)*
£10.03
(exc. VAT)
£12.04
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 97 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.03 |
*price indicative
- RS Stock No.:
- 285-7392
- Distrelec Article No.:
- 144-16-857
- Mfr. Part No.:
- DTS09SYC/2M66UN
- Brand:
- Deltron Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron Connectors | |
| Number of Contacts | 9 | |
| Product Type | D-Sub Connector | |
| Current | 7.5A | |
| Orientation | Right Angle | |
| Mount Type | PCB | |
| Connector Gender | Female | |
| Connector Type D | Standard | |
| Housing Material | Steel | |
| Voltage | 125V | |
| Termination Type | PCB | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Plating | Gold over Nickel | |
| Series | DTS | |
| Contact Material | Copper Alloy | |
| Pitch | 2.54mm | |
| Select all | ||
|---|---|---|
Brand Deltron Connectors | ||
Number of Contacts 9 | ||
Product Type D-Sub Connector | ||
Current 7.5A | ||
Orientation Right Angle | ||
Mount Type PCB | ||
Connector Gender Female | ||
Connector Type D Standard | ||
Housing Material Steel | ||
Voltage 125V | ||
Termination Type PCB | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Plating Gold over Nickel | ||
Series DTS | ||
Contact Material Copper Alloy | ||
Pitch 2.54mm | ||
- COO (Country of Origin):
- CH
The RoHS compliant D-Sub socket suitable for Wave Solder Process. With materials characteristics such as thermoplastic UL 94-V-0 white insulator and machined copper alloy contacts, this product offers a reliable solution for various applications.
Thermoplastic UL 94-V-0 white insulator for safety and durability
High-quality machined copper alloy contacts ensure reliable current rating of 7.5A
Steel tin plated shell for protection and insulation resistance of >5G
Wide temperature range of -55 to +125 C for versatile use
General tolerances as per Deltron standard for accurate dimensions
