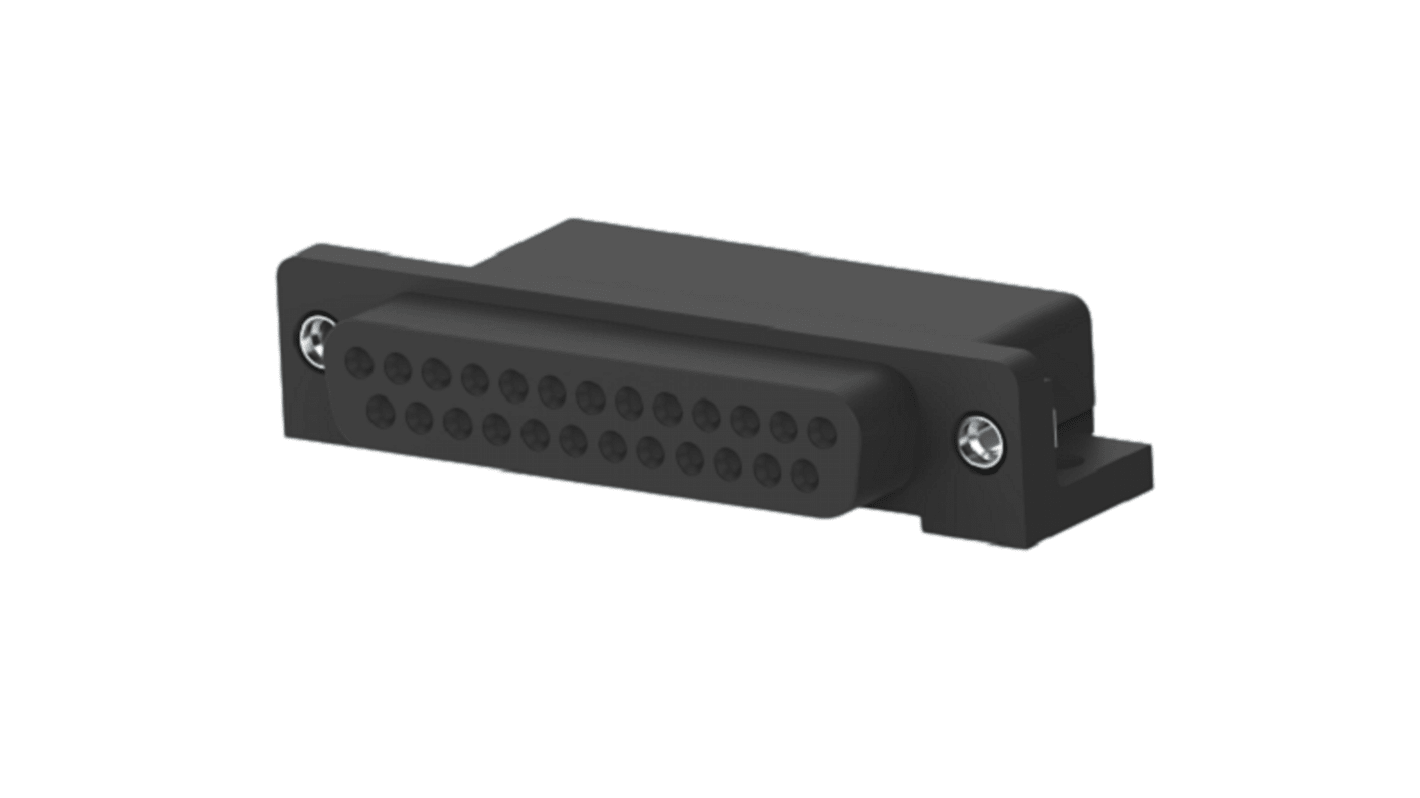

TE Connectivity 5747461 25 Way Right Angle Board Mount PCB D-sub Connector Receptacle, 2.74mm Pitch, with Through Hole
- RS Stock No.:
- 274-8574
- Mfr. Part No.:
- 5747461-3
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 274-8574
- Mfr. Part No.:
- 5747461-3
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 25 | |
| Gender | Receptacle | |
| Body Orientation | Right Angle | |
| Mounting Type | Board Mount | |
| Pitch | 2.74mm | |
| D Connector Type | D-Subminiature Connector | |
| D-Sub Shell Size | S3 | |
| Mounting Hardware | Through Hole - Solder | |
| Termination Method | Solder, Through Hole | |
| Housing Material | Nylon/Polyester | |
| Series | 5747461 | |
| Contact Plating | Tin | |
| Contact Material | Phosphor Bronze | |
| Dimensions | 2.84mm | |
| Series Number | 5747461 | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 25 | ||
Gender Receptacle | ||
Body Orientation Right Angle | ||
Mounting Type Board Mount | ||
Pitch 2.74mm | ||
D Connector Type D-Subminiature Connector | ||
D-Sub Shell Size S3 | ||
Mounting Hardware Through Hole - Solder | ||
Termination Method Solder, Through Hole | ||
Housing Material Nylon/Polyester | ||
Series 5747461 | ||
Contact Plating Tin | ||
Contact Material Phosphor Bronze | ||
Dimensions 2.84mm | ||
Series Number 5747461 | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
