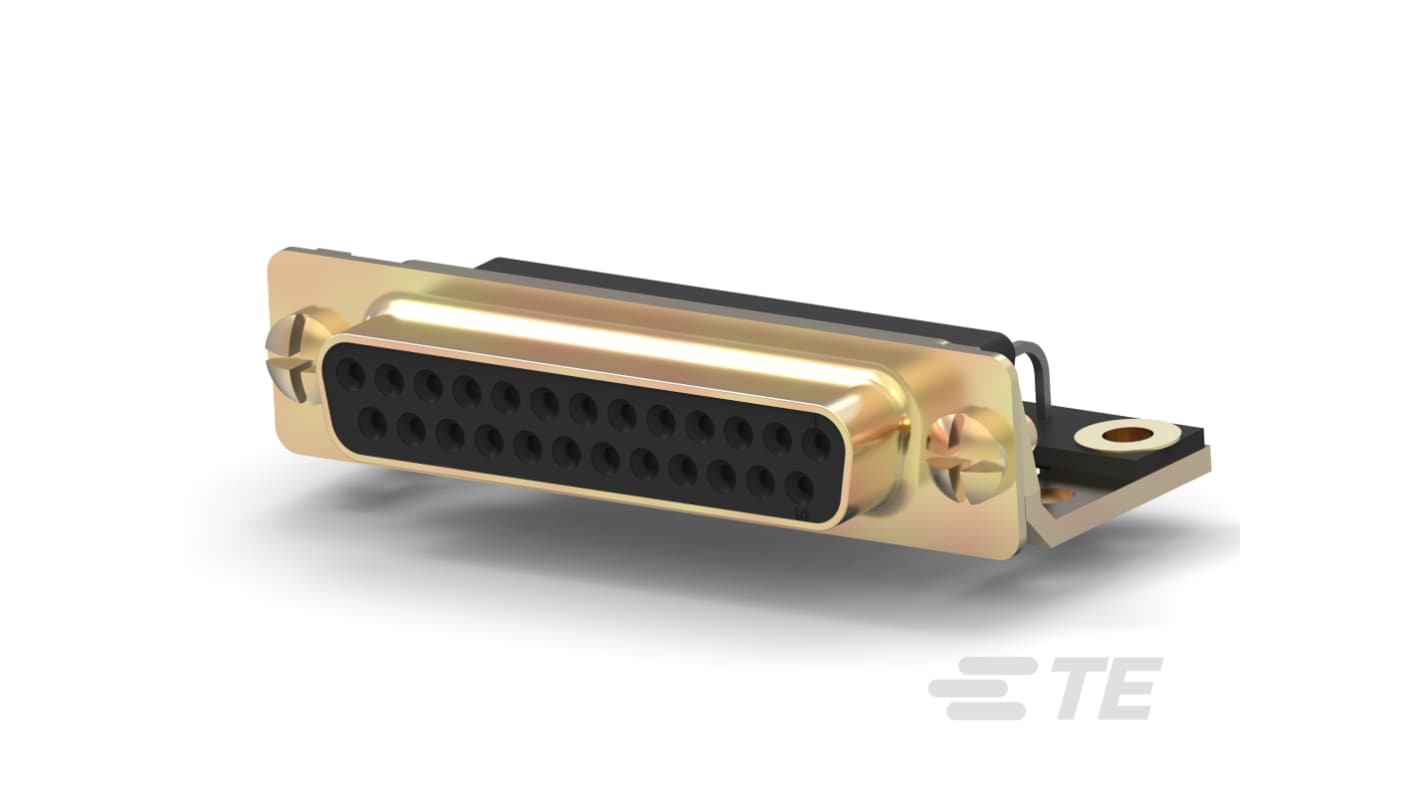

TE Connectivity AMPLIMITE HDP 25 Way Right Angle 2.74 mm Pitch Board D-Sub Connector Female
- RS Stock No.:
- 476-649
- Distrelec Article No.:
- 304-48-919
- Mfr. Part No.:
- 5205858-1
- Brand:
- TE Connectivity
Subtotal (1 pack of 7 units)*
£170.24
(exc. VAT)
£204.29
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £170.24 | £24.32 |
*price indicative
- RS Stock No.:
- 476-649
- Distrelec Article No.:
- 304-48-919
- Mfr. Part No.:
- 5205858-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 25 | |
| Product Type | D-Sub Connector | |
| Current | 6A | |
| Orientation | Right Angle | |
| Mount Type | Board | |
| Connector Gender | Female | |
| Connector Type D | D-Sub | |
| D-Sub Shell Size | 3 | |
| Housing Material | Glass Filled Polybutylene Terephthalate, Glass Filled Nylon | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | EU ELV Directive 2000/53/EC Compliant, 2016, China RoHS 2 Directive MIIT Order No 32, UL 94V-0, EU RoHS Directive 2011/65/EU Compliant | |
| Contact Plating | Gold Flash | |
| Series | AMPLIMITE HDP | |
| Contact Material | Phosphor Bronze | |
| Pitch | 2.74mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 25 | ||
Product Type D-Sub Connector | ||
Current 6A | ||
Orientation Right Angle | ||
Mount Type Board | ||
Connector Gender Female | ||
Connector Type D D-Sub | ||
D-Sub Shell Size 3 | ||
Housing Material Glass Filled Polybutylene Terephthalate, Glass Filled Nylon | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals EU ELV Directive 2000/53/EC Compliant, 2016, China RoHS 2 Directive MIIT Order No 32, UL 94V-0, EU RoHS Directive 2011/65/EU Compliant | ||
Contact Plating Gold Flash | ||
Series AMPLIMITE HDP | ||
Contact Material Phosphor Bronze | ||
Pitch 2.74mm | ||
- COO (Country of Origin):
- MX
The TE Connectivity D-Sub Receptacle Assembly is designed to ensure superior connectivity and reliability in compact spaces. This right-angle connector, crafted with precision for PCB applications, features a shell size that optimally fits various equipment configurations. With its dual-row design and 25 positions, it accommodates complex signal routing while maintaining robustness. Constructed from high-quality materials, the connector supports a broad operating temperature range, making it ideal for demanding environments. Its thoughtful design ensures ease of installation, promoting efficient circuit assembly and minimizing downtime. This product exemplifies a balance of innovative engineering and operational excellence.
Designed for board-to-board applications, providing flexibility in design
High-temperature capable material ensures durability in extreme conditions
Implemented with gold-flash plating for improved corrosion resistance
PCB mount retention feature secures reliable positioning during operation
Constructed from glass-filled nylon and PBT for superior mechanical strength
Wave solder compatible, simplifying manufacturing processes
Ideal for a variety of applications including signal transmission
