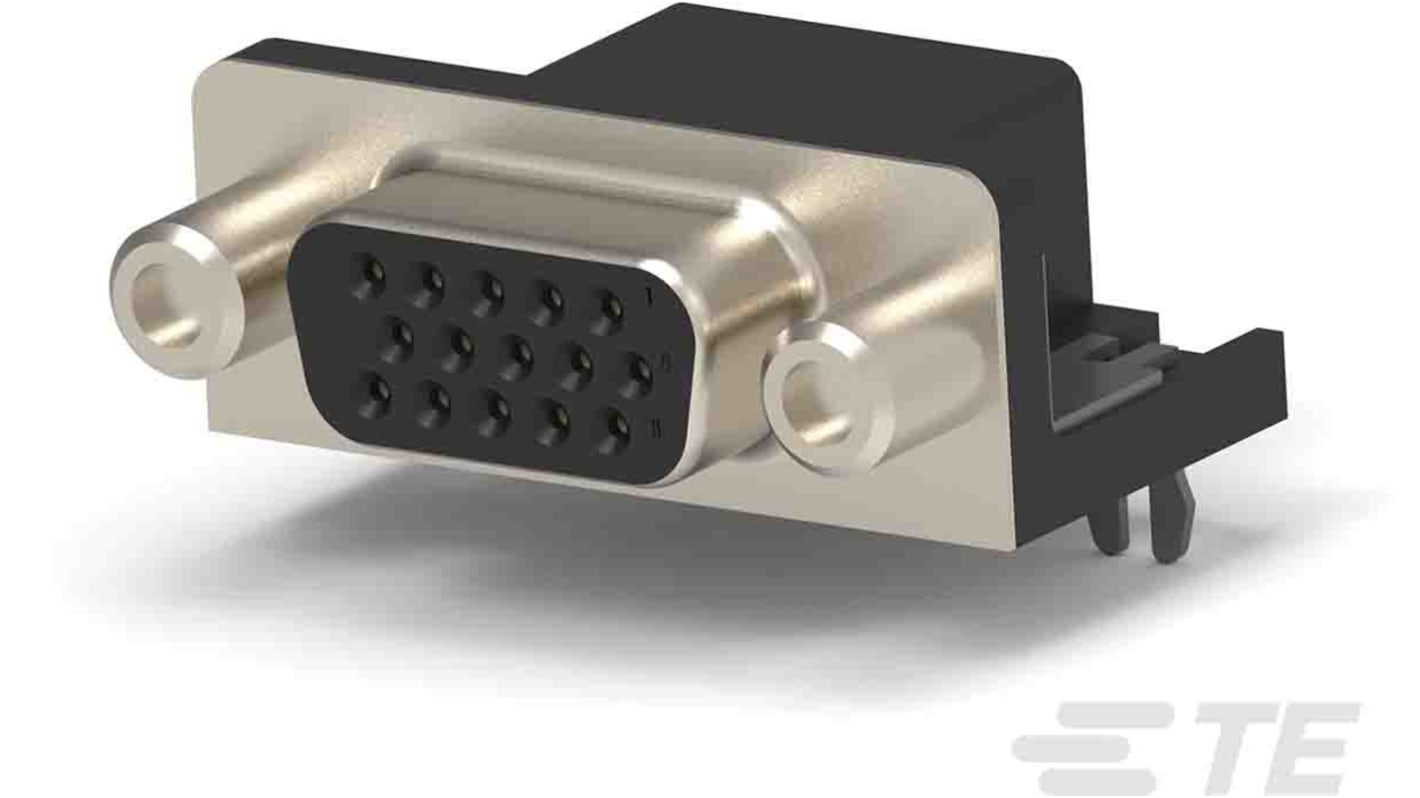

TE Connectivity 15 Way Right Angle 2.29 mm Pitch PCB D-Sub Connector, with Board Lock Female
- RS Stock No.:
- 217-5453
- Mfr. Part No.:
- 2311763-3
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£3.95
(exc. VAT)
£4.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 142 unit(s) ready to ship
- Plus 23 unit(s) ready to ship from another location
- Plus 726 unit(s) shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.95 |
| 10 - 24 | £3.22 |
| 25 - 49 | £3.14 |
| 50 + | £3.05 |
*price indicative
- RS Stock No.:
- 217-5453
- Mfr. Part No.:
- 2311763-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 15 | |
| Orientation | Right Angle | |
| Current | 3A | |
| Mount Type | PCB | |
| Connector Gender | Female | |
| Connector Type D | D-Sub | |
| D-Sub Shell Size | 1 | |
| Mounting Hardware | Board Lock | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Female | |
| Standards/Approvals | EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant with Exemptions | |
| Pitch | 2.29mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type D-Sub Connector | ||
Number of Contacts 15 | ||
Orientation Right Angle | ||
Current 3A | ||
Mount Type PCB | ||
Connector Gender Female | ||
Connector Type D D-Sub | ||
D-Sub Shell Size 1 | ||
Mounting Hardware Board Lock | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Female | ||
Standards/Approvals EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant with Exemptions | ||
Pitch 2.29mm | ||
The TE Connectivity PCB D-Sub Connectors, Receptacle, having 15 position with Wire-to-Board connector system.
Connector System - Wire-to-Board
Housing Colour - Black
Housing Material - PBT GF
