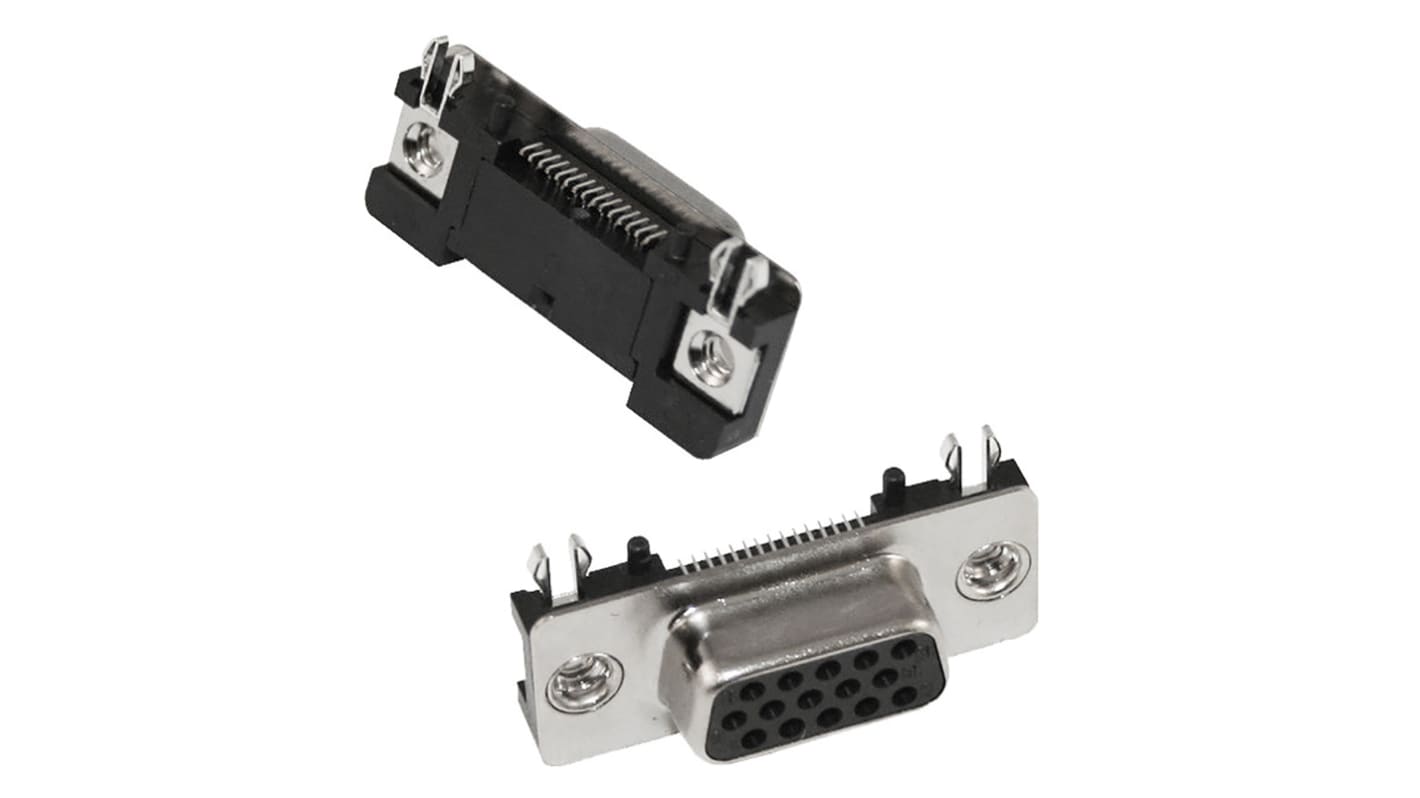

Norcomp 15 Way Right Angle SMT D-sub Connector Socket, 2.29mm Pitch, with Boardlocks
- RS Stock No.:
- 174-8735
- Mfr. Part No.:
- 200-015-263R001
- Brand:
- Norcomp
Bulk discount available
Subtotal (1 unit)*
£3.57
(exc. VAT)
£4.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £3.57 |
5 - 24 | £3.41 |
25 - 49 | £3.17 |
50 - 99 | £2.96 |
100 + | £2.86 |
*price indicative
- RS Stock No.:
- 174-8735
- Mfr. Part No.:
- 200-015-263R001
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norcomp | |
Number of Contacts | 15 | |
Gender | Female | |
Body Orientation | Right Angle | |
Mounting Type | Surface Mount | |
Pitch | 2.29mm | |
D Connector Type | High Density D-Sub | |
Termination Method | Solder | |
Mounting Hardware | Boardlocks | |
Current Rating | 2.0A | |
Housing Material | Steel | |
Voltage Rating | 300.0 V, 500.0 V | |
Length | 30.81mm | |
Width | 10.1mm | |
Depth | 12.55mm | |
Dimensions | 30.81 x 10.1 x 12.55mm | |
Contact Material | Phosphor Bronze | |
Series Number | 200 | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -55.0°C | |
Select all | ||
---|---|---|
Brand Norcomp | ||
Number of Contacts 15 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Surface Mount | ||
Pitch 2.29mm | ||
D Connector Type High Density D-Sub | ||
Termination Method Solder | ||
Mounting Hardware Boardlocks | ||
Current Rating 2.0A | ||
Housing Material Steel | ||
Voltage Rating 300.0 V, 500.0 V | ||
Length 30.81mm | ||
Width 10.1mm | ||
Depth 12.55mm | ||
Dimensions 30.81 x 10.1 x 12.55mm | ||
Contact Material Phosphor Bronze | ||
Series Number 200 | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55.0°C | ||
- COO (Country of Origin):
- TW
Available in 9 and 25 position standard D-Sub.
Available in 15 position female High Density.
Metal shell provides shielding..
Plug shells have indents to provide grounding and additional retention.
Built in Board Locks add mechanical stability to pcb.
Shell: Steel-nickel plated
Insulator: Nylon black (260°C process temp)
Contacts: Male pins: Phosphor bronze | Female pins: Phosphor bronze
Plating: Gold flash (mating area) | Tin (solder tails)
Board Locks: Brass-Nickel plated
Available in 15 position female High Density.
Metal shell provides shielding..
Plug shells have indents to provide grounding and additional retention.
Built in Board Locks add mechanical stability to pcb.
Shell: Steel-nickel plated
Insulator: Nylon black (260°C process temp)
Contacts: Male pins: Phosphor bronze | Female pins: Phosphor bronze
Plating: Gold flash (mating area) | Tin (solder tails)
Board Locks: Brass-Nickel plated
