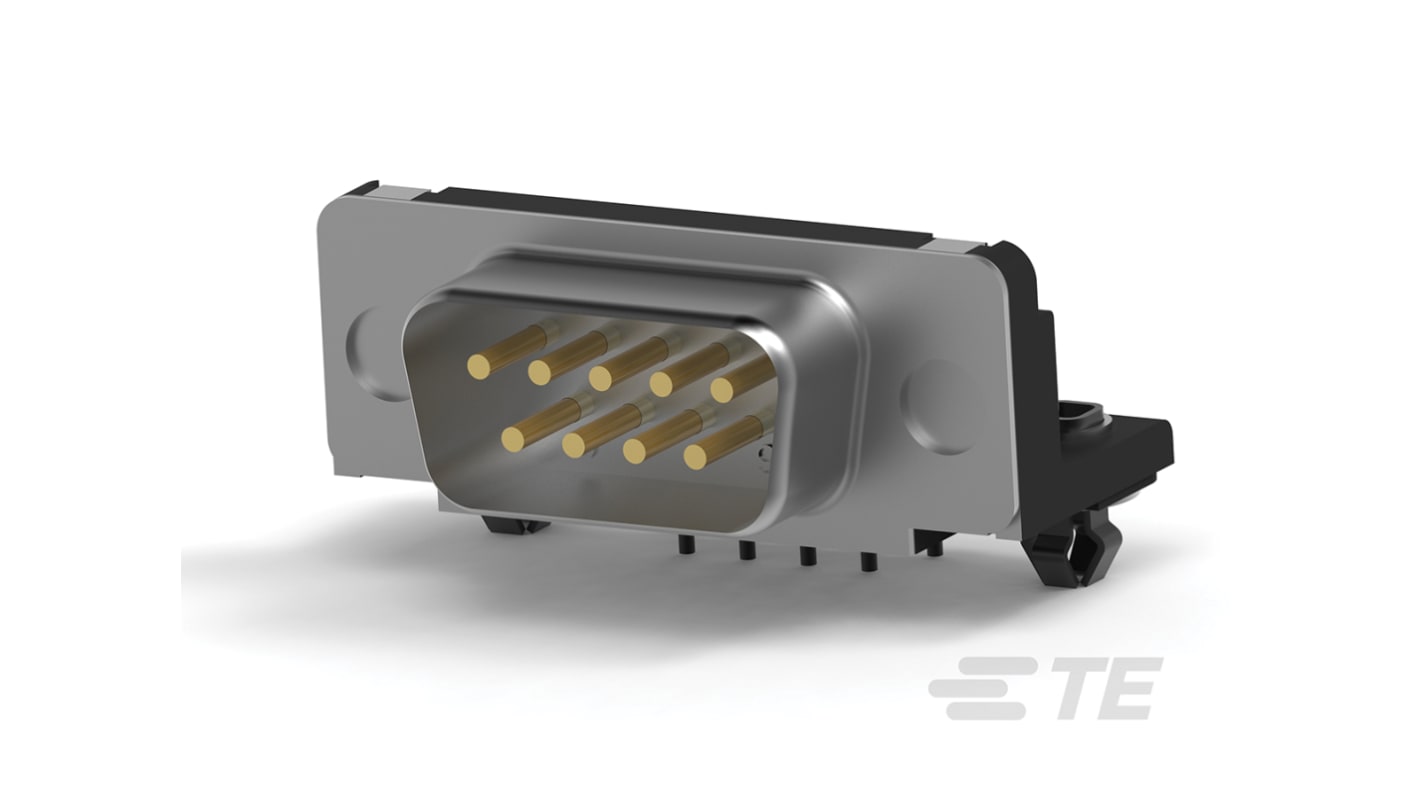

TE Connectivity 9 Way Right Angle Through Hole D-sub Connector Plug, 2.74mm Pitch
- RS Stock No.:
- 192-0420
- Mfr. Part No.:
- 747840-4
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 5 units)*
£24.81
(exc. VAT)
£29.77
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 30 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £4.962 | £24.81 |
| 10 - 20 | £4.79 | £23.95 |
| 25 - 45 | £4.174 | £20.87 |
| 50 - 70 | £4.09 | £20.45 |
| 75 + | £4.004 | £20.02 |
*price indicative
- RS Stock No.:
- 192-0420
- Mfr. Part No.:
- 747840-4
- Brand:
- TE Connectivity
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 9 | |
| Gender | Male | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Pitch | 2.74mm | |
| D Connector Type | Standard D-Sub | |
| Termination Method | Solder | |
| Current Rating | 6.0A | |
| Housing Material | Glass Filled Nylon/Glass Filled Polyester | |
| Length | 30.8mm | |
| Width | 18.62mm | |
| Depth | 12.55mm | |
| Dimensions | 30.8 x 18.62 x 12.55mm | |
| Contact Plating | Nickel | |
| Contact Material | Brass | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55.0°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 9 | ||
Gender Male | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.74mm | ||
D Connector Type Standard D-Sub | ||
Termination Method Solder | ||
Current Rating 6.0A | ||
Housing Material Glass Filled Nylon/Glass Filled Polyester | ||
Length 30.8mm | ||
Width 18.62mm | ||
Depth 12.55mm | ||
Dimensions 30.8 x 18.62 x 12.55mm | ||
Contact Plating Nickel | ||
Contact Material Brass | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55.0°C | ||
Non Compliant
- COO (Country of Origin):
- MX
The TE Connectivity D-sub Connector Plug is a male plug with solder termination method and 2.74mm of pitch.
Number of Contacts: 9
