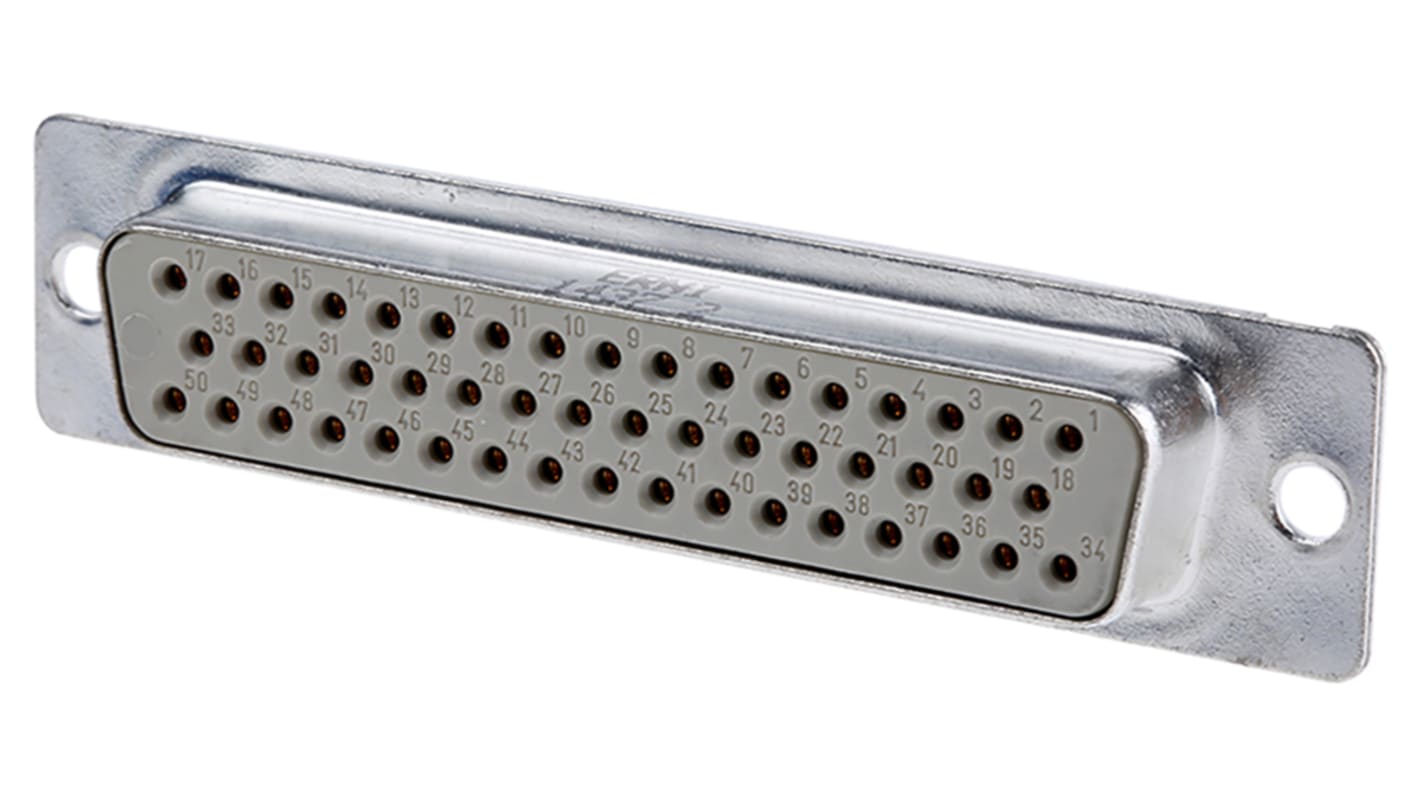

Provertha TMC 50 Way Through Hole D-sub Connector Socket, 2.75mm Pitch
- RS Stock No.:
- 170-6744
- Mfr. Part No.:
- 013920
- Brand:
- Provertha
Subtotal (1 tray of 28 units)*
£565.012
(exc. VAT)
£678.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 56 unit(s) shipping from 16 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 28 + | £20.179 | £565.01 |
*price indicative
- RS Stock No.:
- 170-6744
- Mfr. Part No.:
- 013920
- Brand:
- Provertha
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Provertha | |
| Number of Contacts | 50 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.75mm | |
| Termination Method | Solder | |
| Current Rating | 5.0A | |
| Housing Material | PBT | |
| Voltage Rating | 1.25 kV | |
| Length | 67.0mm | |
| Width | 11.0mm | |
| Depth | 15.4mm | |
| Series | TMC | |
| Contact Plating | Gold | |
| Dimensions | 67 x 11 x 15.4mm | |
| Maximum Operating Temperature | +125°C | |
| Series Number | 013 | |
| Minimum Operating Temperature | -65.0°C | |
Select all | ||
|---|---|---|
Brand Provertha | ||
Number of Contacts 50 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.75mm | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Housing Material PBT | ||
Voltage Rating 1.25 kV | ||
Length 67.0mm | ||
Width 11.0mm | ||
Depth 15.4mm | ||
Series TMC | ||
Contact Plating Gold | ||
Dimensions 67 x 11 x 15.4mm | ||
Maximum Operating Temperature +125°C | ||
Series Number 013 | ||
Minimum Operating Temperature -65.0°C | ||
- COO (Country of Origin):
- DE
Straight dip-soldered connection
Sub-D connector Erni
Laminated ground contact on the male housings for optimal screening
Solid contacts on the male connectors with tinned manual soldering termination
Solid contacts on the male connectors with tinned manual soldering termination
Series TMC connectors are available in various housing sizes and with different numbers of pin.
