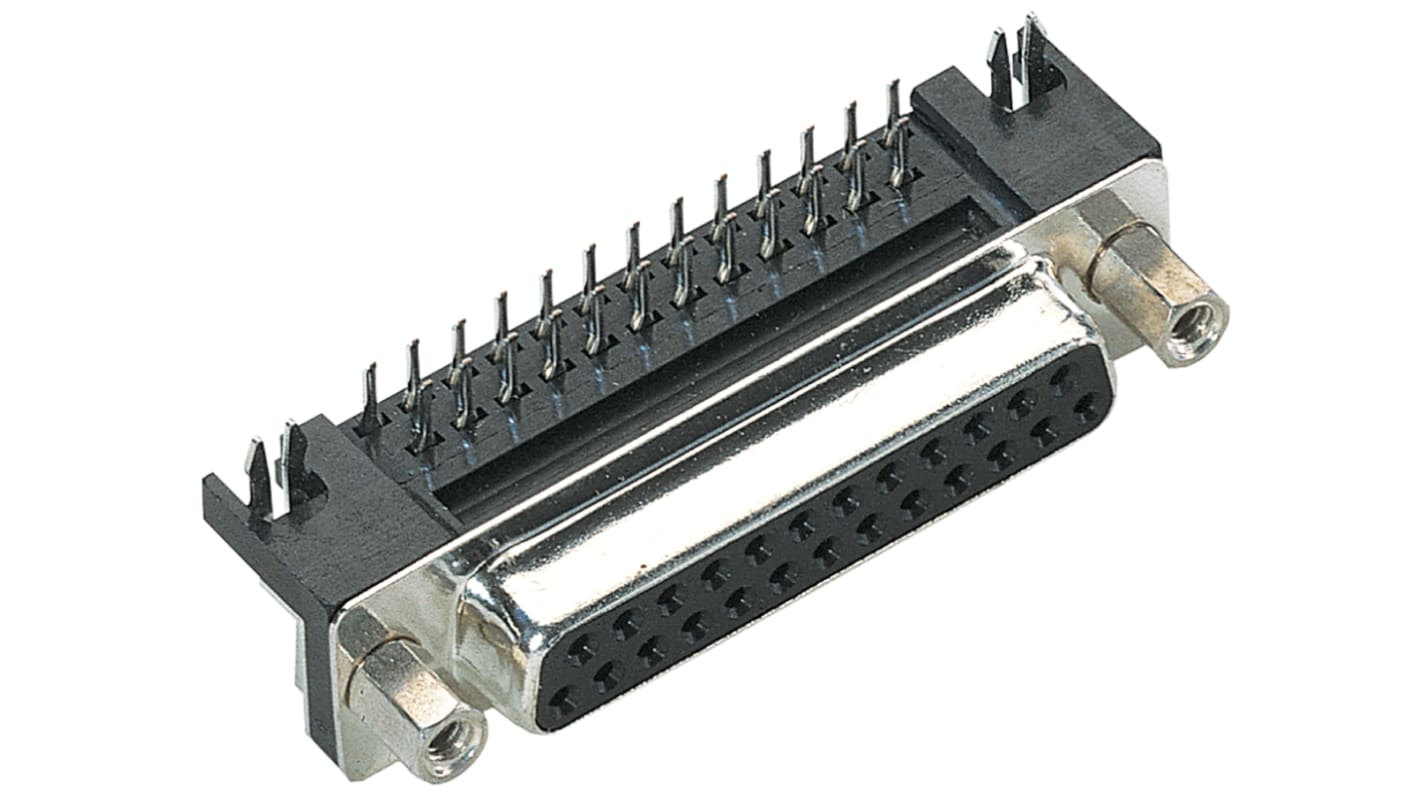

Harting D-Sub 25 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch, with 4-40 UNC Screwlocks

RS Stock No.:: 141-0372
Mfr. Part No.:: 09683535613
Brand:: HARTING

Harting D-Sub 25 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch, with 4-40 UNC Screwlocks

29 In stock - FREE next working day delivery available

Price Each

£7.12

(exc. VAT)

£8.54

(inc. VAT)

Units	Per unit
1 - 9	£7.12
10 - 24	£6.81
25 - 49	£5.93
50 +	£5.62

RS Stock No.:: 141-0372
Mfr. Part No.:: 09683535613
Brand:: HARTING

Female 25 way D-sub connector drawing

Attribute	Value
Number of Contacts	25
Gender	Female
Body Orientation	Right Angle
Mounting Type	Through Hole
Pitch	2.77 mm, 2.84mm
D Connector Type	Standard D-Sub
Termination Method	Solder
Mounting Hardware	4-40 UNC Screwlocks
Current Rating	6.5A
Mixed Contact Layout	25W2
Housing Material	Glass Fibre Reinforced Thermoplastic
Length	53.1mm
Width	12.55mm
Depth	18.2mm
Series	D-Sub
Dimensions	53.1 x 12.55 x 18.2mm
Contact Material	Copper Alloy
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-55.0°C

Harting D-Sub 25 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch, with 4-40 UNC Screwlocks

Harting 9, 15 and 25 way Solder D-Sub Miniature Sockets - U.S Footprint

Features and Benefits
