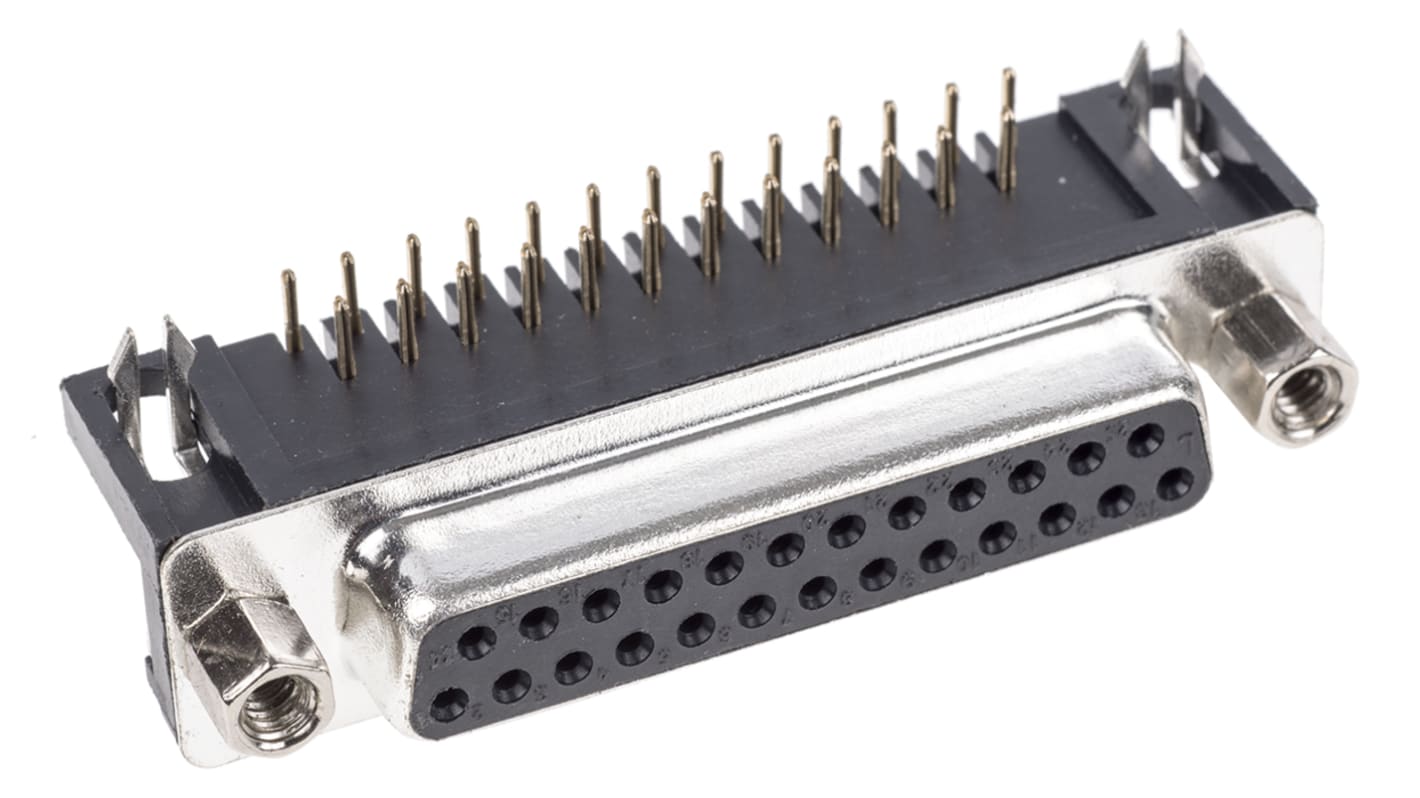

ASSMANN WSW A-DF 25 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch, with 4-40 UNC Screwlocks
- RS Stock No.:
- 674-0824
- Mfr. Part No.:
- A-DF 25 A/KG-T2
- Brand:
- ASSMANN WSW
Bulk discount available
Subtotal (1 pack of 5 units)*
£9.77
(exc. VAT)
£11.725
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 390 unit(s) ready to ship
- Plus 70 unit(s) ready to ship from another location
- Plus 235 unit(s) shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.954 | £9.77 |
| 25 - 45 | £1.662 | £8.31 |
| 50 - 120 | £1.57 | £7.85 |
| 125 - 495 | £1.466 | £7.33 |
| 500 + | £1.368 | £6.84 |
*price indicative
- RS Stock No.:
- 674-0824
- Mfr. Part No.:
- A-DF 25 A/KG-T2
- Brand:
- ASSMANN WSW
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ASSMANN WSW | |
| Number of Contacts | 25 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Pitch | 2.77mm | |
| Termination Method | Solder | |
| Mounting Hardware | 4-40 UNC Screwlocks | |
| Current Rating | 3A | |
| Housing Material | PBT | |
| Voltage Rating | 250.0 V | |
| Length | 53.04mm | |
| Depth | 12.55mm | |
| Contact Material | Brass | |
| Contact Plating | Gold, Nickel | |
| Series | A-DF | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40.0°C | |
| Select all | ||
|---|---|---|
Brand ASSMANN WSW | ||
Number of Contacts 25 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.77mm | ||
Termination Method Solder | ||
Mounting Hardware 4-40 UNC Screwlocks | ||
Current Rating 3A | ||
Housing Material PBT | ||
Voltage Rating 250.0 V | ||
Length 53.04mm | ||
Depth 12.55mm | ||
Contact Material Brass | ||
Contact Plating Gold, Nickel | ||
Series A-DF | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40.0°C | ||
- COO (Country of Origin):
- CN
D-Sub Right Angled USA-Standard, PCB Mount
Assmann
