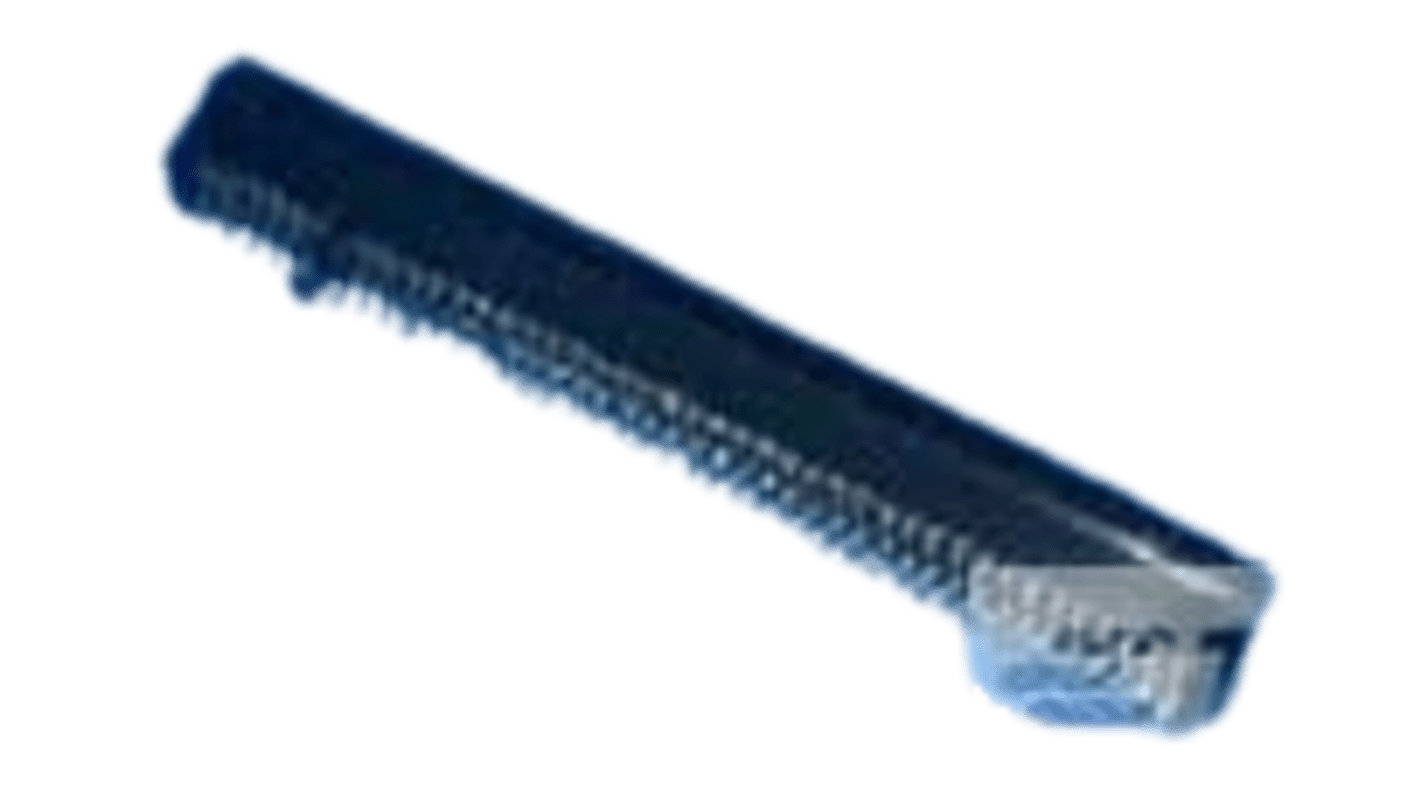

TE Connectivity PCI 36 Way Vertical 1 mm Pitch Board D-Sub Connector Male
- RS Stock No.:
- 478-780
- Distrelec Article No.:
- 304-49-972
- Mfr. Part No.:
- 5-1734774-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 350 units)*
£173.44
(exc. VAT)
£208.13
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £173.44 | £0.496 |
*price indicative
- RS Stock No.:
- 478-780
- Distrelec Article No.:
- 304-49-972
- Mfr. Part No.:
- 5-1734774-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 36 | |
| Orientation | Vertical | |
| Current | 1.1A | |
| Mount Type | Board | |
| Connector Gender | Male | |
| Housing Material | Polyamide 4.6 | |
| Voltage | 50 V | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Male | |
| Standards/Approvals | EU RoHS Directive 2011/65/EU Compliant, 2016 No Restricted Materials Above Threshold, China RoHS 2 Directive MIIT Order No 32, EU REACH Regulation (EC) No. 1907/2006 | |
| Contact Material | Phosphor Bronze | |
| Series | PCI | |
| Contact Plating | Gold, Tin | |
| Pitch | 1mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type D-Sub Connector | ||
Number of Contacts 36 | ||
Orientation Vertical | ||
Current 1.1A | ||
Mount Type Board | ||
Connector Gender Male | ||
Housing Material Polyamide 4.6 | ||
Voltage 50 V | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Male | ||
Standards/Approvals EU RoHS Directive 2011/65/EU Compliant, 2016 No Restricted Materials Above Threshold, China RoHS 2 Directive MIIT Order No 32, EU REACH Regulation (EC) No. 1907/2006 | ||
Contact Material Phosphor Bronze | ||
Series PCI | ||
Contact Plating Gold, Tin | ||
Pitch 1mm | ||
- COO (Country of Origin):
- CN
The TE Connectivity Cable-to-board connector is specifically designed to facilitate efficient connections in compact electronic designs. Featuring a robust 36-position configuration and a vertical orientation, it ensures optimal space utilisation without compromising performance. The connector’s dimensioned 1 mm centreline pitch accommodates high-density applications, while its durable construction, with a sleek white housing, guarantees longevity even in demanding environments. Operating effectively within a temperature range of -40 to 85 °C, it meets the rigorous standards required by PCI Express applications. This connector is an ideal solution for users seeking reliability and adaptability in their electronic assemblies.
Optimised for high-density electronic applications
Robust design ensures a reliable connection
Vertical orientation allows for space-efficient layouts
Compatible with printed circuit boards for versatile integration
Lightweight construction contributes to overall system efficiency
Designed to withstand a wide operating temperature range
Constructed to meet stringent industry standards
