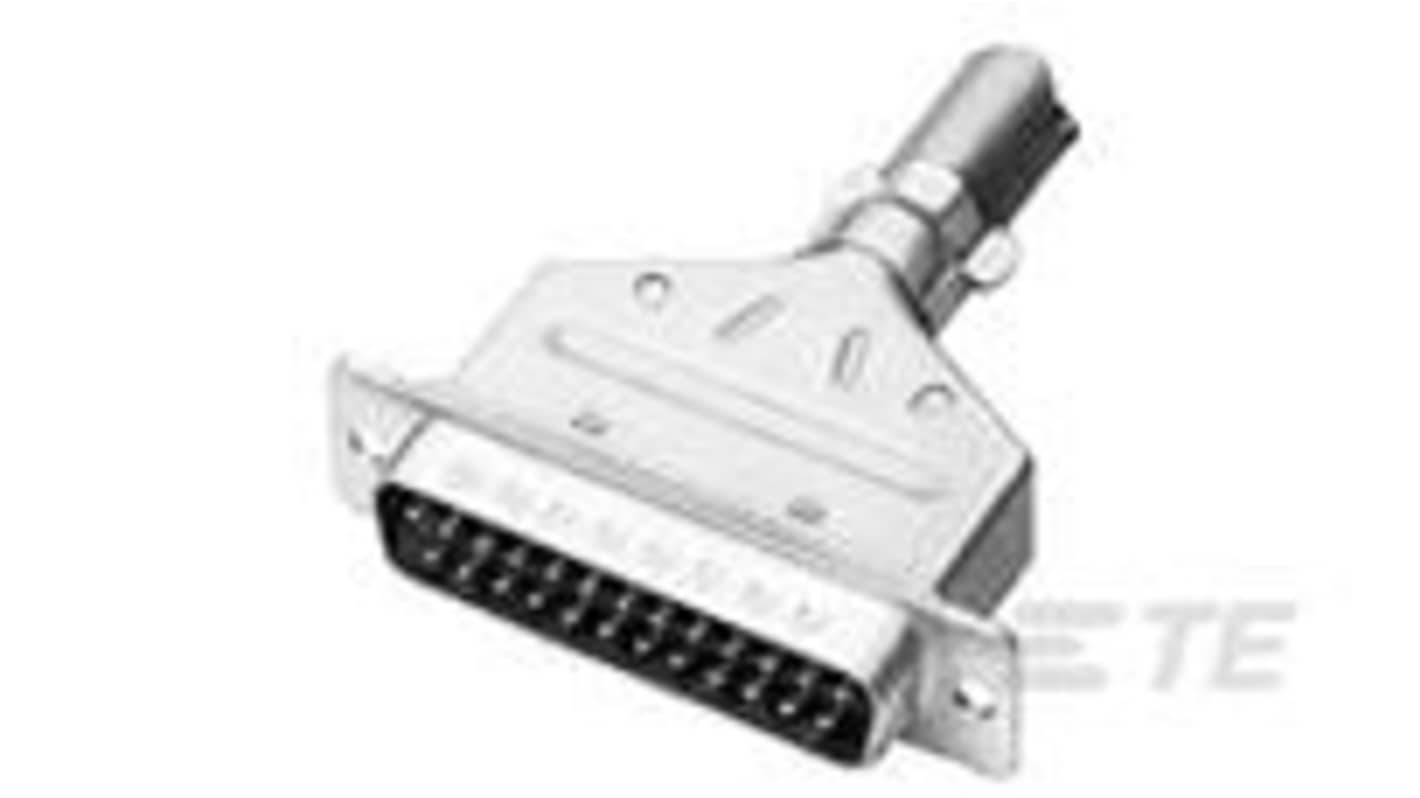

TE Connectivity 74754 25 Way Straight 1.38 mm Pitch Cable D-Sub Connector Male

RS Stock No.:: 470-097
Distrelec Article No.:: 304-50-078
Mfr. Part No.:: 747547-9
Brand:: TE Connectivity

TE Connectivity 74754 25 Way Straight 1.38 mm Pitch Cable D-Sub Connector Male

Subtotal (1 pack of 9 units)*

£138.63

(exc. VAT)

£166.36

(inc. VAT)

Stock information currently inaccessible - Please check back later

Pack(s)	Per Pack	Per unit*
1 +	£138.63	£15.403

*price indicative

RS Stock No.:: 470-097
Distrelec Article No.:: 304-50-078
Mfr. Part No.:: 747547-9
Brand:: TE Connectivity

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Product Type	D-Sub Connector
	Number of Contacts	25
	Current	5A
	Orientation	Straight
	Mount Type	Cable
	Connector Gender	Male
	Connector Type D	D-Sub
	D-Sub Shell Size	3
	Housing Material	Thermoplastic
	Minimum Operating Temperature	-55°C
	Termination Type	IDC
	Contact Gender	Male
	Maximum Operating Temperature	105°C
	Standards/Approvals	China RoHS 2 Directive MIIT Order No 32, UL 94V-0, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, 2016
	Contact Plating	Gold
	Series	74754
	Contact Material	Phosphor Bronze
	Contact Size	20
	Pitch	1.38mm

	Select all
	Brand TE Connectivity
	Product Type D-Sub Connector
	Number of Contacts 25
	Current 5A
	Orientation Straight
	Mount Type Cable
	Connector Gender Male
	Connector Type D D-Sub
	D-Sub Shell Size 3
	Housing Material Thermoplastic
	Minimum Operating Temperature -55°C
	Termination Type IDC
	Contact Gender Male
	Maximum Operating Temperature 105°C
	Standards/Approvals China RoHS 2 Directive MIIT Order No 32, UL 94V-0, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, 2016
	Contact Plating Gold
	Series 74754
	Contact Material Phosphor Bronze
	Contact Size 20
	Pitch 1.38mm

Datasheet - 747547-9

COO (Country of Origin):: MX

The TE Connectivity D-Sub connector is expertly designed to meet the rigorous demands of modern electrical applications. With its robust construction and sophisticated design, it facilitates seamless cable-to-cable connections, ensuring reliable performance. This connector features a 25-position configuration, making it suitable for a variety of uses, including signal transmission. Moreover, it is compatible with a wide range of wire types, enhancing its versatility. The inclusion of shielding provides additional protection against interference, making it an ideal choice for sensitive applications. Its solid wire range from 26 to 22 AWG, coupled with a durable steel shell, guarantees longevity and minimal signal loss. The product is engineered for both ease of installation and strong electrical performance, ensuring that it meets the expectations of engineers and designers alike.

The shielded design enhances signal integrity by reducing electromagnetic interference

A solid wire size range ensures compatibility with various cable types, making it versatile for different applications

The black steel shell combines durability with a sleek aesthetic, suitable for industrial environments

Operating temperature tolerance from -55 to 105 °C enables reliable performance in extreme conditions

The product features grounding indents for added stability and improved electrical connection

Its straight mounting angle allows for easy installation in tight spaces

TE Connectivity 74754 25 Way Straight 1.38 mm Pitch Cable D-Sub Connector Male
