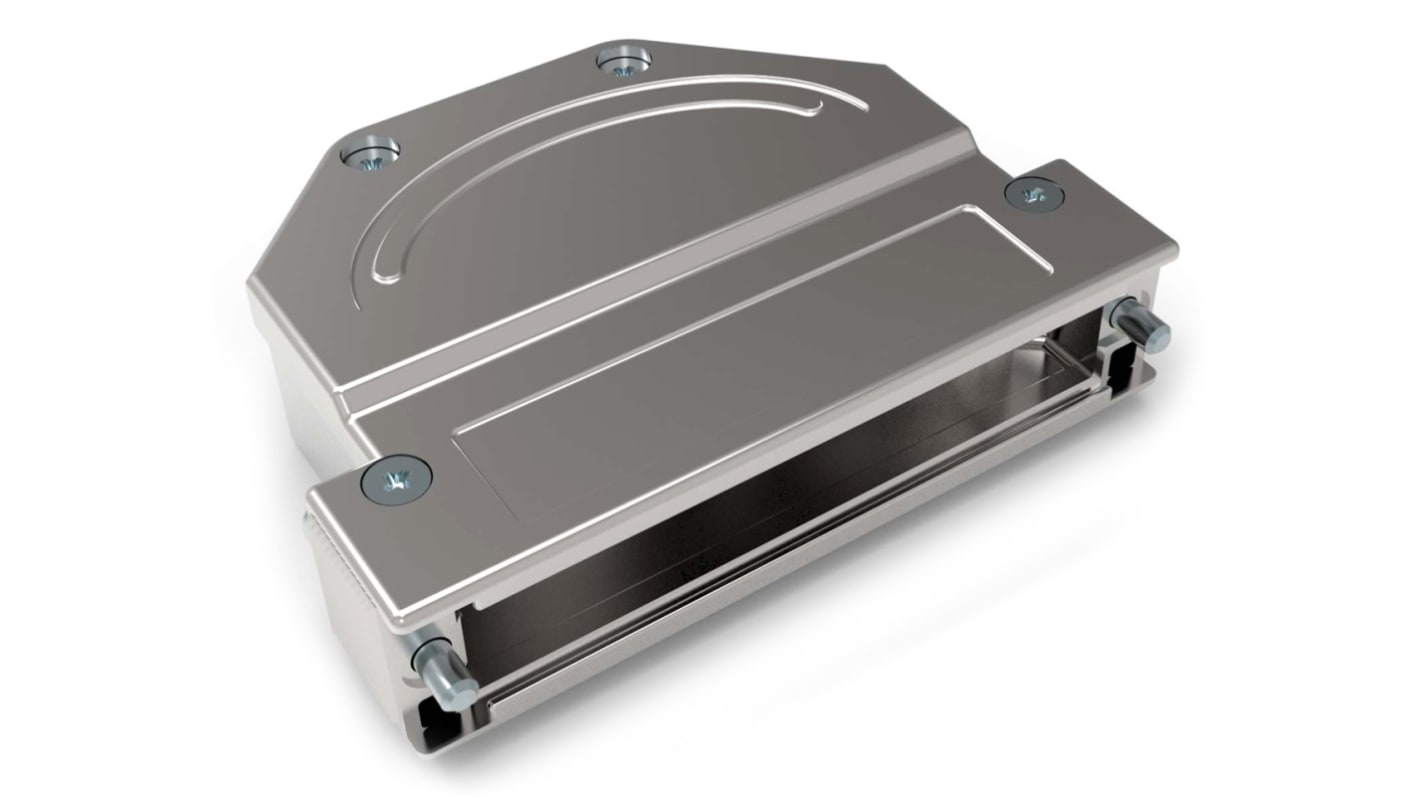

TE Connectivity Die Cast Zinc Angled D Sub Backshell, 37, 62 Way

View all D Sub Backshells
Bulk discount available

Subtotal (1 unit)*

£35.08

(exc. VAT)

£42.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 102 unit(s) shipping from 23 October 2025
  • Plus 33 unit(s) shipping from 23 October 2025
  • Plus 50 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£35.08
25 - 49£29.57
50 - 99£27.68
100 - 499£26.73
500 +£25.29

*price indicative

D-Sub-Connectors
D Sub Connectors
Don't forget D Sub Connectors!
Shop D Sub Connectors now
RS Stock No.:
139-1682
Mfr. Part No.:
1-2308345-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

37, 62

D-Sub Shell Size

C

Housing Material

Die Cast Zinc

Body Orientation

Angled

Housing Material Plating

Nickel

COO (Country of Origin):
DE

TE Connectivity Full Metal Shielded Rail D-Sub Backshells


From TE Connectivity, a range of superior quality full metal D-Sub back shells for use with D-Sub miniature connectors. The robust two parts die cast hoods are secured with self-retaining screws for easy assembly. Hoods are available with two strain relief options, crimp for harsh environments and Extreme vibration and screw strain relief quick cable preparation. With their three cable exit options and 360° EMI/EMC shielding, the all metal hoods are ideal for use in EN50155 systems.
For crimp strain relief, a suitably sized Crimp Flange and Crimp Barrel are required. Selection would depend on the O/D of cable used. Refer to data sheet for size calculations.
• Large crimp flange, see typical part number 139-1547 for range of sizes
• Small crimp flange, see typical part number 139-1556 for range of sizes
• Crimp barrels, see typical part number 139-1564 for range of sizes
For screw strain relief, a suitably sized cable clamp is required. Selection would depend on the O/D of the cable used. Refer to data sheet for size calculations.
• Cable Clamps, see typical part number 139-1541 for range of sizes

Features and Benefits


• Self-retaining assembly screws
• High-quality full metal shell
• 360° EMI/EMC shielding for use in EN50155 systems
• 225°, 180°, and 135° cable exit options
• Multiple shell sizes for design flexibility
• Crimp or screw strain relief

Applications


• Harsh environment data systems
• Railway
• Industrial Ethernet


D-Sub Connectors - TE Connectivity Shielded Rail D-Sub Backshells
