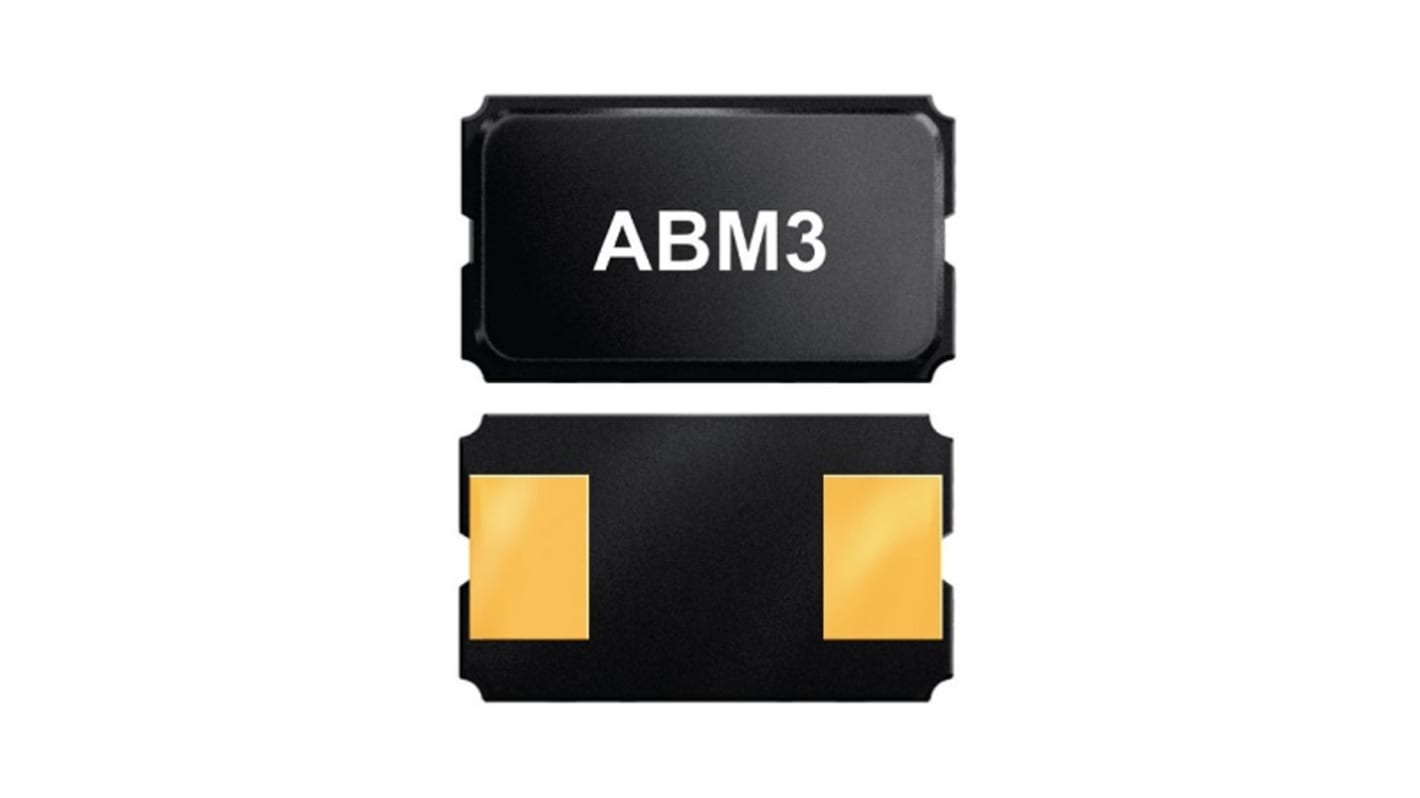

Abracon 27MHz Crystal Unit SMD 2-Pin 5 x 3.2 x 1.3mm
- RS Stock No.:
- 241-2980
- Mfr. Part No.:
- ABM3-27.000MHZ-D2Y-T
- Brand:
- Abracon
Bulk discount available
Subtotal (1 pack of 25 units)*
£8.30
(exc. VAT)
£9.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,900 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.332 | £8.30 |
| 50 - 75 | £0.326 | £8.15 |
| 100 - 225 | £0.29 | £7.25 |
| 250 - 475 | £0.285 | £7.13 |
| 500 + | £0.275 | £6.88 |
*price indicative
- RS Stock No.:
- 241-2980
- Mfr. Part No.:
- ABM3-27.000MHZ-D2Y-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Standard Frequency | 27MHz | |
| Mounting Type | Surface Mount | |
| Load Capacitance | 18pF | |
| Package Type | SMD | |
| Pin Count | 2 | |
| Dimensions | 5 x 3.2 x 1.3mm | |
Select all | ||
|---|---|---|
Brand Abracon | ||
Standard Frequency 27MHz | ||
Mounting Type Surface Mount | ||
Load Capacitance 18pF | ||
Package Type SMD | ||
Pin Count 2 | ||
Dimensions 5 x 3.2 x 1.3mm | ||
The Abracon ceramic smd crystal is hermetically sealed and not moisture sensitive. It is used as Cellular telephones, pagers, Communication and test equipment, PCMCIA and wireless applications.
Frequency 27 MHz
ESR (Equivalent Series Resistance) 30 Ω
Mounting Type Surface Mount
Operating Temperature -40°C ∼ 85°C
AT-cut fundamental or 3rd OT mode
Suitable for RoHS reflow profile
Tight Stability available ±10
Ceramic package hermetically glass sealed assures high precision and reliability
ESR (Equivalent Series Resistance) 30 Ω
Mounting Type Surface Mount
Operating Temperature -40°C ∼ 85°C
AT-cut fundamental or 3rd OT mode
Suitable for RoHS reflow profile
Tight Stability available ±10
Ceramic package hermetically glass sealed assures high precision and reliability
