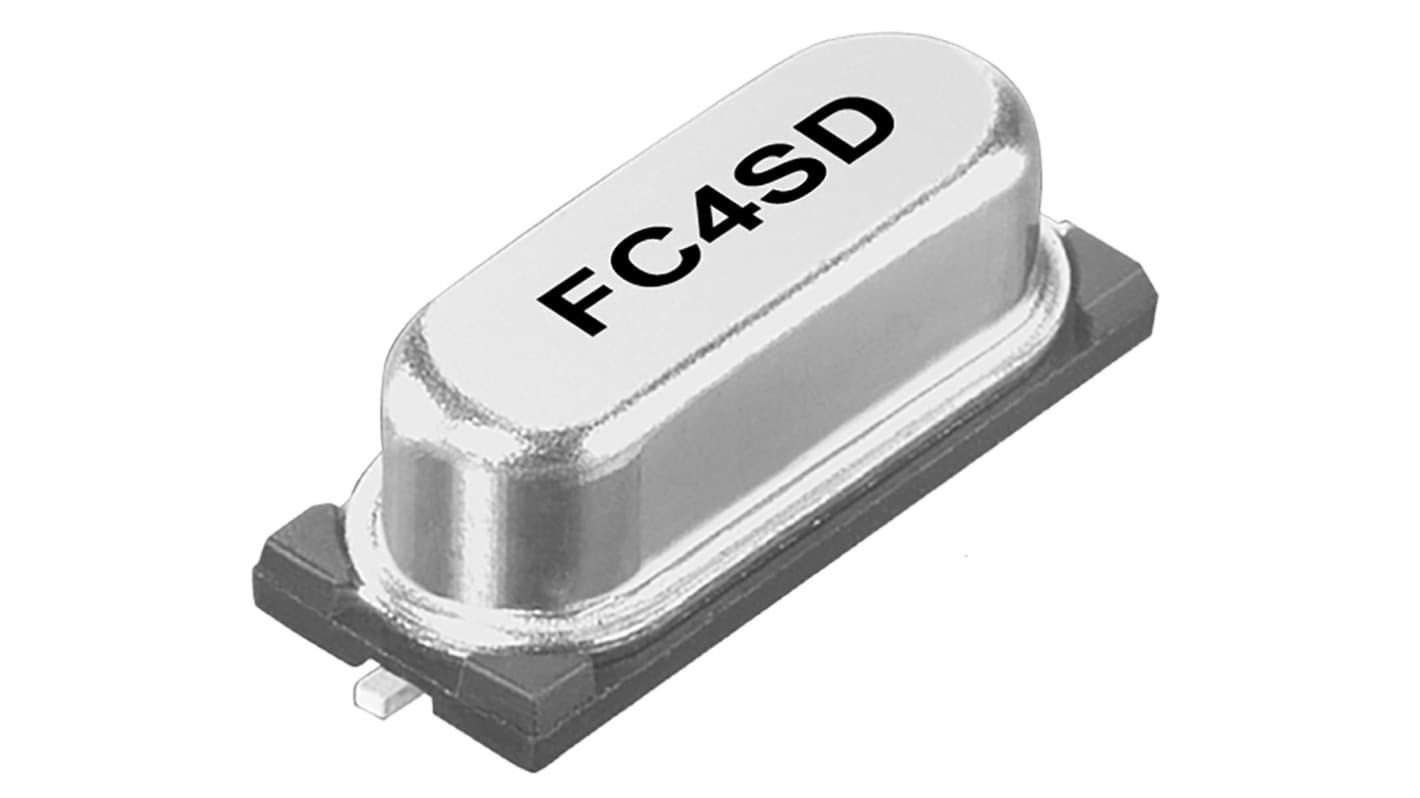

Abracon 12MHz Crystal ±30ppm SMD 2-Pin 13.5 x 5.0 x 4.5mm
- RS Stock No.:
- 226-0528
- Mfr. Part No.:
- FC4SDCBMF12.0-T1
- Brand:
- Abracon
350 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 50)
£0.219
(exc. VAT)
£0.263
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 50 | £0.219 | £10.95 |
| 100 - 200 | £0.183 | £9.15 |
| 250 - 450 | £0.18 | £9.00 |
| 500 - 950 | £0.174 | £8.70 |
| 1000 + | £0.14 | £7.00 |
| *price indicative | ||
- RS Stock No.:
- 226-0528
- Mfr. Part No.:
- FC4SDCBMF12.0-T1
- Brand:
- Abracon
Technical Reference
Legislation and Compliance
Product Details
The Abracon FC4SD series is the SMD crystal with resistance weld seal and it have termination finish of the sn, ag3.0 and cu0.5. The shunt capacitance of this SMD crystal is the 7 pF and its load capacitance is the 20 pF.
Tolerances down to ±10 ppm
Stabilities down to ±5 ppm
Operating temperature range to -20°C to +70°C
Stabilities down to ±5 ppm
Operating temperature range to -20°C to +70°C
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 12MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 20pF |
| Package Type | SMD |
| Pin Count | 2 |
| Dimensions | 13.5 x 5.0 x 4.5mm |
| Frequency Tolerance | ±30ppm |
