Abracon 3.579545MHz Crystal ±30ppm SMD 2-Pin 13.5 x 5.0 x 4.5mm

View all Crystal Units
Save 19% when you buy 500 units

Subtotal (1 pack of 25 units)*

£3.725

(exc. VAT)

£4.475

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 900 unit(s) ready to ship
  • Plus 999,999,075 unit(s) shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 - 25£0.149£3.73
50 - 75£0.146£3.65
100 - 225£0.126£3.15
250 - 475£0.123£3.08
500 +£0.12£3.00

*price indicative

Packaging Options:
RS Stock No.:
226-0522
Mfr. Part No.:
FC4SDCBLF3.579545-T1
Brand:
Abracon
Find similar products by selecting one or more attributes.
Select all

Brand

Abracon

Standard Frequency

3.579545MHz

Mounting Type

Surface Mount

Load Capacitance

18pF

Package Type

SMD

Pin Count

2

Dimensions

13.5 x 5.0 x 4.5mm

Frequency Tolerance

±30ppm

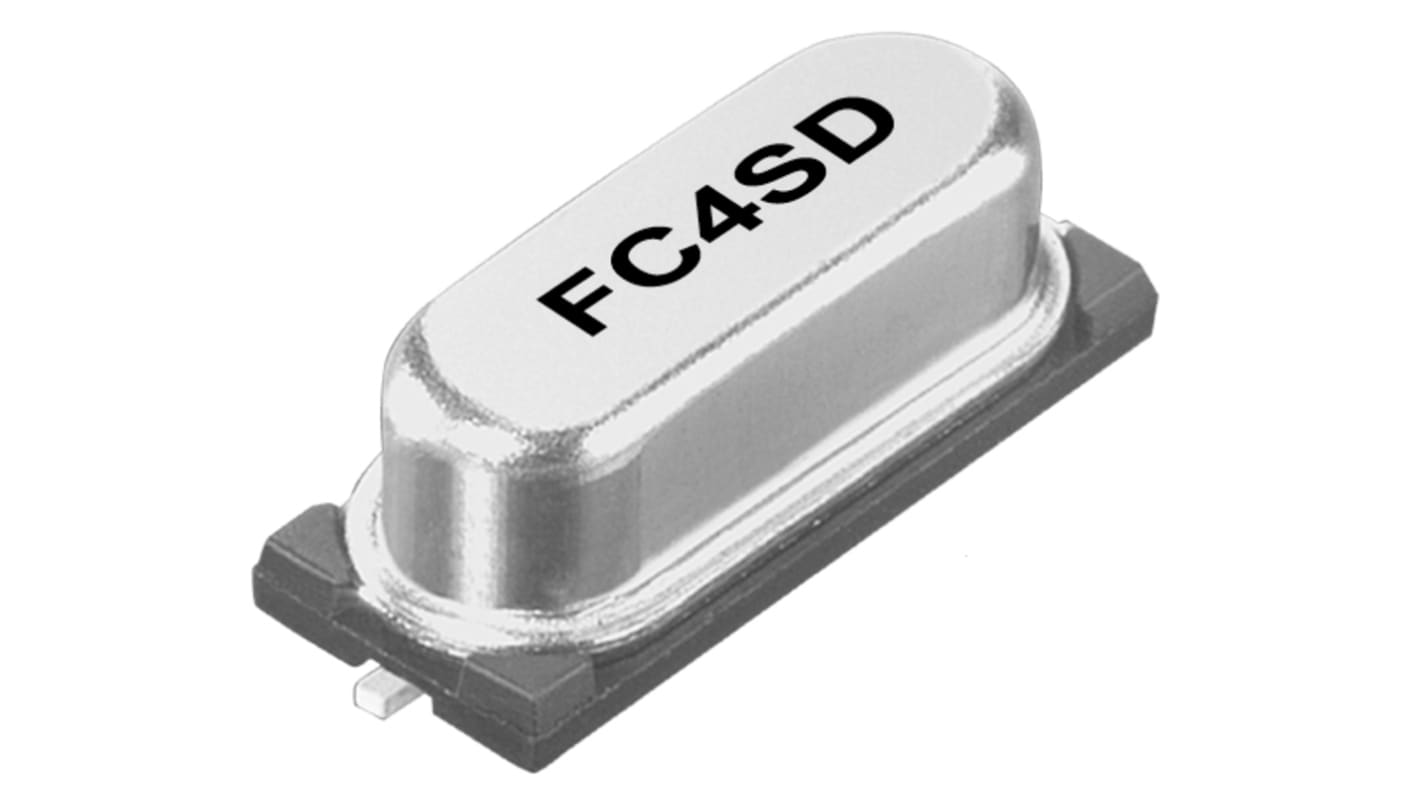

The Abracon FC4SD series is the SMD crystal with resistance weld seal and it have termination finish of the sn, ag3.0 and cu0.5. The shunt capacitance of this SMD crystal is the 7 pF and its load capacitance is the 18 pF.

Tolerances down to ±10 ppm
Stabilities down to ±5 ppm
Operating temperature range to -20°C to +70°C
