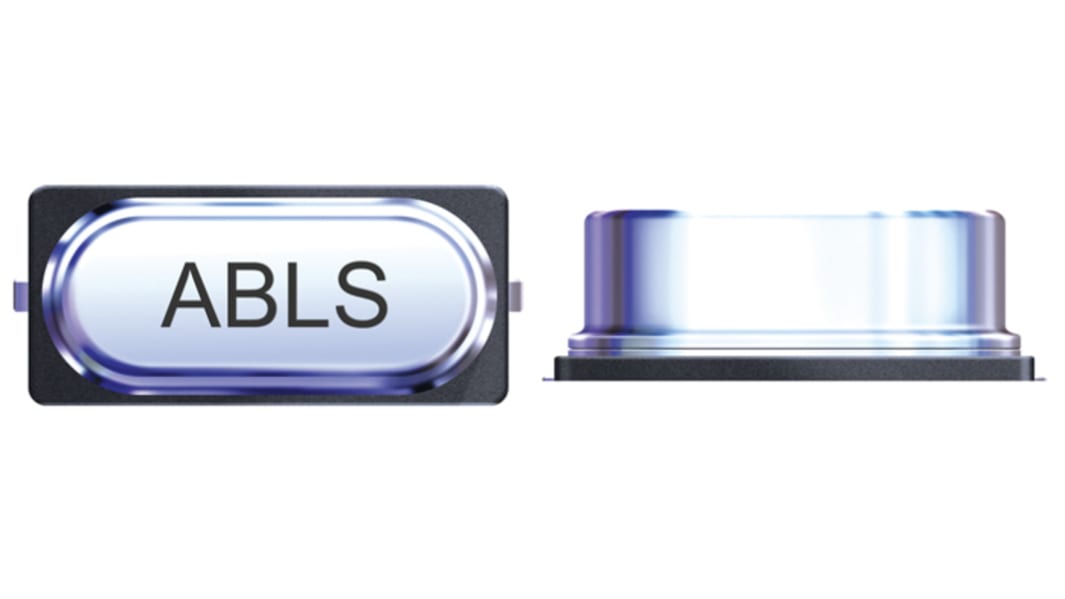

Abracon 6MHz Crystal Unit ±25ppm SMD 2-Pin 11.4 x 4.7 x 4.1mm
- RS Stock No.:
- 187-5779
- Mfr. Part No.:
- ABLS-6.000MHz-20-B-3-H-T
- Brand:
- Abracon
Available to back order for despatch 30/12/2024
Price Each (On a Reel of 1000)
£0.095
(exc. VAT)
£0.114
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £0.095 | £95.00 |
| 2000 - 4000 | £0.092 | £92.00 |
| 5000 - 9000 | £0.09 | £90.00 |
| 10000 + | £0.088 | £88.00 |
*price indicative
- RS Stock No.:
- 187-5779
- Mfr. Part No.:
- ABLS-6.000MHz-20-B-3-H-T
- Brand:
- Abracon
Technical Reference
Legislation and Compliance
Product Details
Available for tight stability & extended temperature range
Applications:
Computers, Modems, Microprocessors
Wireless Applications
Applications:
Computers, Modems, Microprocessors
Wireless Applications
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 6MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 20pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 11.4mm |
| Width | 4.7mm |
| Height | 4.1mm |
| Dimensions | 11.4 x 4.7 x 4.1mm |
| Frequency Tolerance | ±25ppm |
| Frequency Stability | ±35ppm |
| Series Resistance | 100Ω |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
