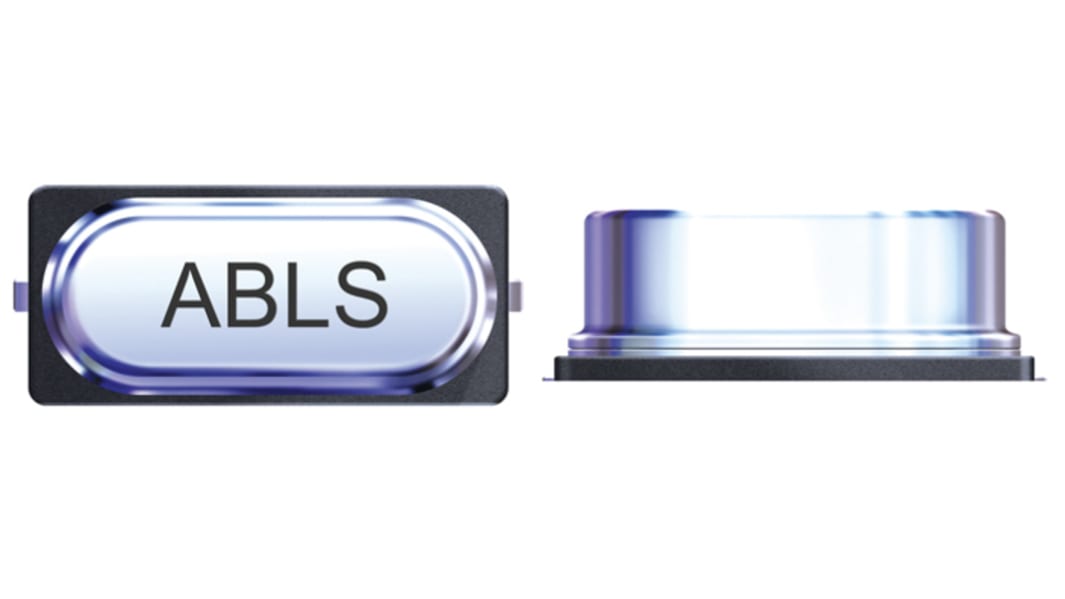

Abracon 12.28MHz Crystal Unit ±25ppm SMD 2-Pin 11.4 x 4.7 x 4.1mm
- RS Stock No.:
- 187-5751
- Mfr. Part No.:
- ABLS-12.288MHz-D-3-Y-T
- Brand:
- Abracon
999999999 In stock - FREE next working day delivery available
Price Each (On a Reel of 1000)
£0.092
(exc. VAT)
£0.11
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £0.092 | £92.00 |
| 2000 - 4000 | £0.09 | £90.00 |
| 5000 + | £0.087 | £87.00 |
*price indicative
- RS Stock No.:
- 187-5751
- Mfr. Part No.:
- ABLS-12.288MHz-D-3-Y-T
- Brand:
- Abracon
Technical Reference
Legislation and Compliance
Product Details
Available for tight stability & extended temperature range
Applications:
Computers, Modems, Microprocessors
Wireless Applications
Applications:
Computers, Modems, Microprocessors
Wireless Applications
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 12.28MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 18pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 11.4mm |
| Width | 4.7mm |
| Height | 4.1mm |
| Dimensions | 11.4 x 4.7 x 4.1mm |
| Frequency Tolerance | ±25ppm |
| Frequency Stability | ±30ppm |
| Series Resistance | 50Ω |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
