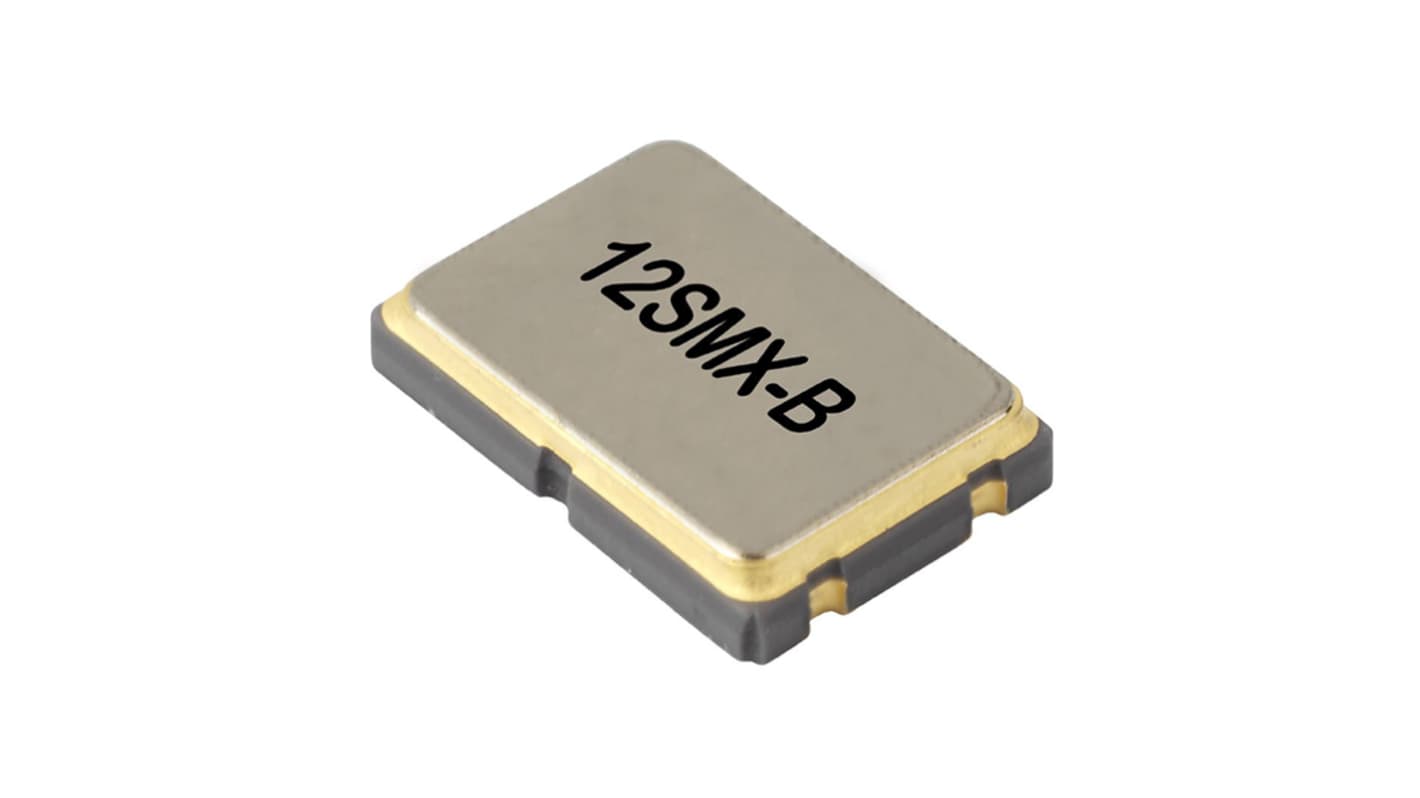

Wurth Elektronik 24.576 MHz Crystal ±30 ppm SMT 4-Pin 1.2 mm 7.2 mm 5.2mm
- RS Stock No.:
- 197-724
- Mfr. Part No.:
- 830026396
- Brand:
- Wurth Elektronik
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£11.61
(exc. VAT)
£13.93
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £1.161 | £11.61 |
| 100 - 240 | £1.102 | £11.02 |
| 250 - 490 | £1.022 | £10.22 |
| 500 + | £0.941 | £9.41 |
*price indicative
- RS Stock No.:
- 197-724
- Mfr. Part No.:
- 830026396
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Standard Frequency | 24.576MHz | |
| Product Type | Crystal | |
| Mount Type | Surface | |
| Load Capacitance | 16pF | |
| Package Type | SMT | |
| Packaging | Tape & Reel | |
| Pin Count | 4 | |
| Length | 7.2mm | |
| Width | 5.2mm | |
| Height | 1.2mm | |
| Frequency Tolerance | ±30 ppm | |
| Minimum Operating Temperature | -20°C | |
| Frequency Stability | ±50 ppm | |
| Series Resistance | 40Ω | |
| Maximum Operating Temperature | 70°C | |
| Series | 12SMX-B | |
| Standards/Approvals | RoHS, REACH | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Standard Frequency 24.576MHz | ||
Product Type Crystal | ||
Mount Type Surface | ||
Load Capacitance 16pF | ||
Package Type SMT | ||
Packaging Tape & Reel | ||
Pin Count 4 | ||
Length 7.2mm | ||
Width 5.2mm | ||
Height 1.2mm | ||
Frequency Tolerance ±30 ppm | ||
Minimum Operating Temperature -20°C | ||
Frequency Stability ±50 ppm | ||
Series Resistance 40Ω | ||
Maximum Operating Temperature 70°C | ||
Series 12SMX-B | ||
Standards/Approvals RoHS, REACH | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik Standard 7 x 5mm SMD crystal combines robust performance with a Compact design, making it an Ideal choice for various electronic applications. Crafted with a hermetically sealed ceramic package featuring a metal lid, it ensures longevity and reliability in operations. Its fundamental overtone order and engineered frequency characteristics position it perfectly within Advanced circuitry environments. The quartz crystal is tailored to meet industry standards, providing an essential component for precise timing applications.
Constructed with four pad configurations making it easy to integrate
Manufactured with RoHS compliant materials to meet modern environmental standards
Available in tape and reel for efficient handling in automated assembly processes
Supports a wide operating temperature range enhancing application versatility
Comes with comprehensive compliance to encourage hassle free integration
Backed by a reputable manufacturer known for high quality electronic components
