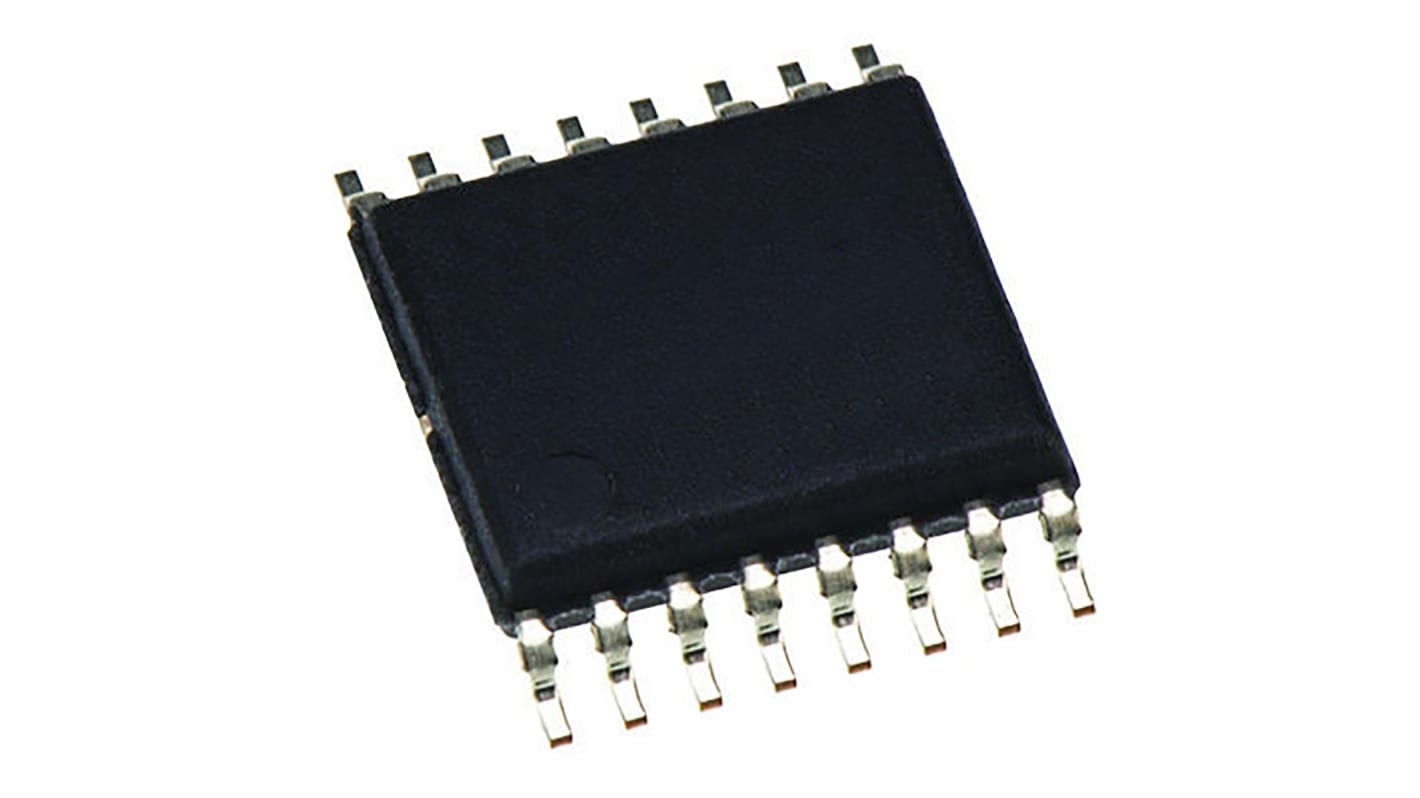

Texas Instruments CD74HC4060PW 14-stage Surface Mount Binary Counter HC, 16-Pin TSSOP
- RS Stock No.:
- 145-0773
- Mfr. Part No.:
- CD74HC4060PW
- Brand:
- Texas Instruments
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 145-0773
- Mfr. Part No.:
- CD74HC4060PW
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Package Type | TSSOP | |
Logic Function | Counter | |
Number of Stages | 14 | |
Logic Family | HC | |
Mounting Type | Surface Mount | |
Counter Type | Binary | |
Number of Elements | 1 | |
Pin Count | 16 | |
Minimum Operating Supply Voltage | 2 V | |
Maximum Operating Supply Voltage | 6 V | |
Dimensions | 5.1 x 4.5 x 1.05mm | |
Triggering Type | Negative Edge | |
Minimum Operating Temperature | -55 °C | |
Maximum Operating Temperature | 125 °C | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Package Type TSSOP | ||
Logic Function Counter | ||
Number of Stages 14 | ||
Logic Family HC | ||
Mounting Type Surface Mount | ||
Counter Type Binary | ||
Number of Elements 1 | ||
Pin Count 16 | ||
Minimum Operating Supply Voltage 2 V | ||
Maximum Operating Supply Voltage 6 V | ||
Dimensions 5.1 x 4.5 x 1.05mm | ||
Triggering Type Negative Edge | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature 125 °C | ||
- COO (Country of Origin):
- MY
74HC Family Counters & Shift Registers, Texas Instruments
Texas Instruments range of Counters and Shift Registers from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
