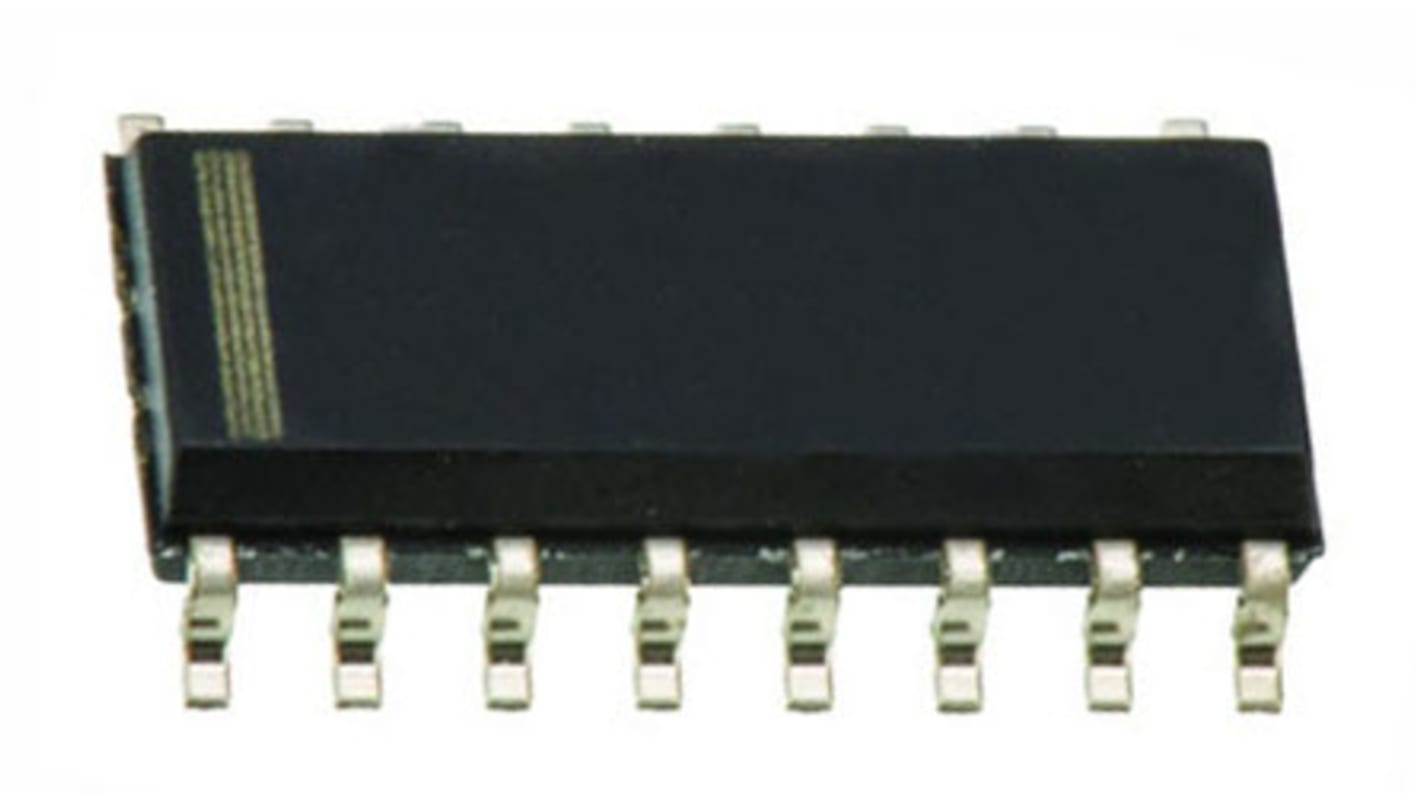

Texas Instruments SN74HC4040D 12-stage Surface Mount Binary Counter HC, 16-Pin SOIC
- RS Stock No.:
- 178-9203
- Mfr. Part No.:
- SN74HC4040D
- Brand:
- Texas Instruments
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 2500)
£0.214
(exc. VAT)
£0.257
(inc. VAT)
- RS Stock No.:
- 178-9203
- Mfr. Part No.:
- SN74HC4040D
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Package Type | SOIC | |
Logic Function | Counter | |
Number of Stages | 12 | |
Logic Family | HC | |
Mounting Type | Surface Mount | |
Counter Type | Binary | |
Operation Mode | Up Counter | |
Number of Elements | 1 | |
Pin Count | 16 | |
Minimum Operating Supply Voltage | 2 V | |
Maximum Operating Supply Voltage | 6 V | |
Dimensions | 9.9 x 3.91 x 1.58mm | |
Reset Type | Asynchronous | |
Direction Type | Uni-Directional | |
Triggering Type | Negative Edge | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | 85 °C | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Package Type SOIC | ||
Logic Function Counter | ||
Number of Stages 12 | ||
Logic Family HC | ||
Mounting Type Surface Mount | ||
Counter Type Binary | ||
Operation Mode Up Counter | ||
Number of Elements 1 | ||
Pin Count 16 | ||
Minimum Operating Supply Voltage 2 V | ||
Maximum Operating Supply Voltage 6 V | ||
Dimensions 9.9 x 3.91 x 1.58mm | ||
Reset Type Asynchronous | ||
Direction Type Uni-Directional | ||
Triggering Type Negative Edge | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature 85 °C | ||
74HC4000 Series, Texas Instruments
Standard logic ICs using CMOS technology to achieve operating speeds similar to LSTTL with the low power consumption of CMOS integrated circuits. The 74HC4000 logic family is functionally and pin-compatible with the standard LS logic family, and all devices have the ability to drive 10 LSTTL loads.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
