- RS Stock No.:
- 170-8025
- Mfr. Part No.:
- 74HC4040D,653
- Brand:
- Nexperia
Available to back order for despatch 20/05/2025
Added
Price Each (On a Reel of 2500)
£0.208
(exc. VAT)
£0.25
(inc. VAT)
Units | Per unit | Per Reel* |
2500 + | £0.208 | £520.00 |
*price indicative |
- RS Stock No.:
- 170-8025
- Mfr. Part No.:
- 74HC4040D,653
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
Product Details
74HC Family Counters & Shift Registers, Nexperia
A range of 74HC Family CMOS Logic Counters and Shift Registers from NXP. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
Specifications
Attribute | Value |
---|---|

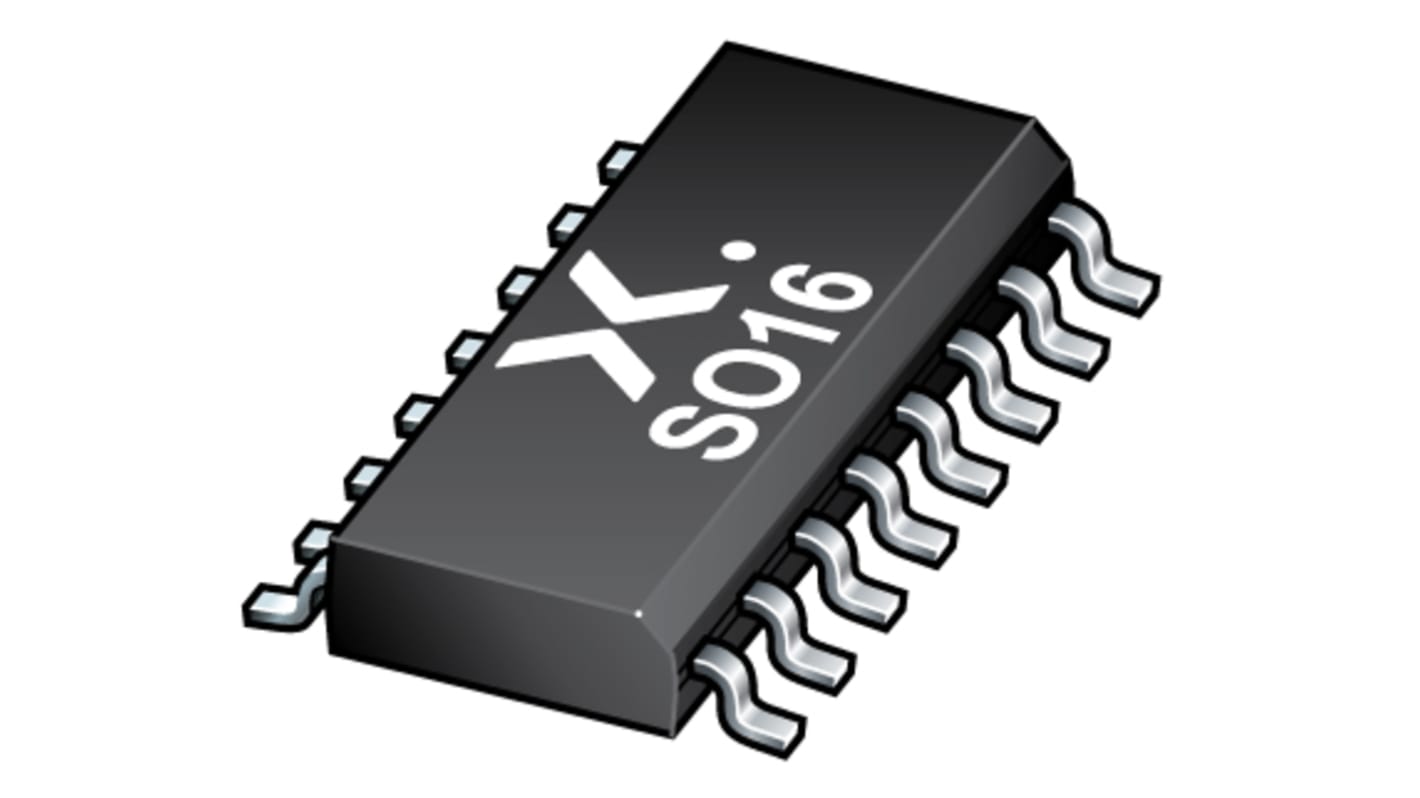

Package Type | SO |
Logic Function | Counter |
Number of Stages | 12 |
Logic Family | 74HC |
Mounting Type | Surface Mount |
Counter Type | Binary |
Number of Elements | 1 |
Pin Count | 16 |
Minimum Operating Supply Voltage | 2 V |
Maximum Operating Supply Voltage | 6 V |
Dimensions | 10 x 4 x 1.45mm |
Maximum Operating Temperature | 125 °C |
Reset Type | Asynchronous |
Direction Type | Uni-Directional |
Triggering Type | Positive Edge |
Minimum Operating Temperature | -40 °C |
