Rittal TopTherm Blue e Series, 1200 m³/h Enclosure Cooling Unit, 2.55kW 400V ac 1.58 m 400mm 295 mm
- RS Stock No.:
- 224-0019
- Mfr. Part No.:
- 3329540
- Brand:
- Rittal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£3,812.69
(exc. VAT)
£4,575.23
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £3,812.69 |
| 5 - 9 | £3,698.31 |
| 10 + | £3,591.55 |
*price indicative
- RS Stock No.:
- 224-0019
- Mfr. Part No.:
- 3329540
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 2.55kW | |
| Air Flow | 1200m³/h | |
| Input Power | 1.19kW | |
| Mount Type | Wall | |
| Maximum Supply Voltage | 400V ac | |
| IP Rating | IP54, IP34 | |
| Certification | cUL, UL, CCC, CSA, uR, cUr | |
| Material | Sheet Steel | |
| Min Temperature Setting | -40°C | |
| Type of installation | Wall-Mounted | |
| Maximum Temperature Setting | 55°C | |
| Standards/Approvals | EAC | |
| Weight | 70kg | |
| Height | 1.58m | |
| Depth | 295mm | |
| Series | TopTherm Blue e | |
| Width | 400mm | |
| Cooler Type | Wall Mounted | |
| Nominal Current | 3.3A | |
| Frequency | 60Hz | |
| Refrigerant Type | R134A | |
| Cooling Capacity | 4kW | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 2.55kW | ||
Air Flow 1200m³/h | ||
Input Power 1.19kW | ||
Mount Type Wall | ||
Maximum Supply Voltage 400V ac | ||
IP Rating IP54, IP34 | ||
Certification cUL, UL, CCC, CSA, uR, cUr | ||
Material Sheet Steel | ||
Min Temperature Setting -40°C | ||
Type of installation Wall-Mounted | ||
Maximum Temperature Setting 55°C | ||
Standards/Approvals EAC | ||
Weight 70kg | ||
Height 1.58m | ||
Depth 295mm | ||
Series TopTherm Blue e | ||
Width 400mm | ||
Cooler Type Wall Mounted | ||
Nominal Current 3.3A | ||
Frequency 60Hz | ||
Refrigerant Type R134A | ||
Cooling Capacity 4kW | ||
- COO (Country of Origin):
- IT

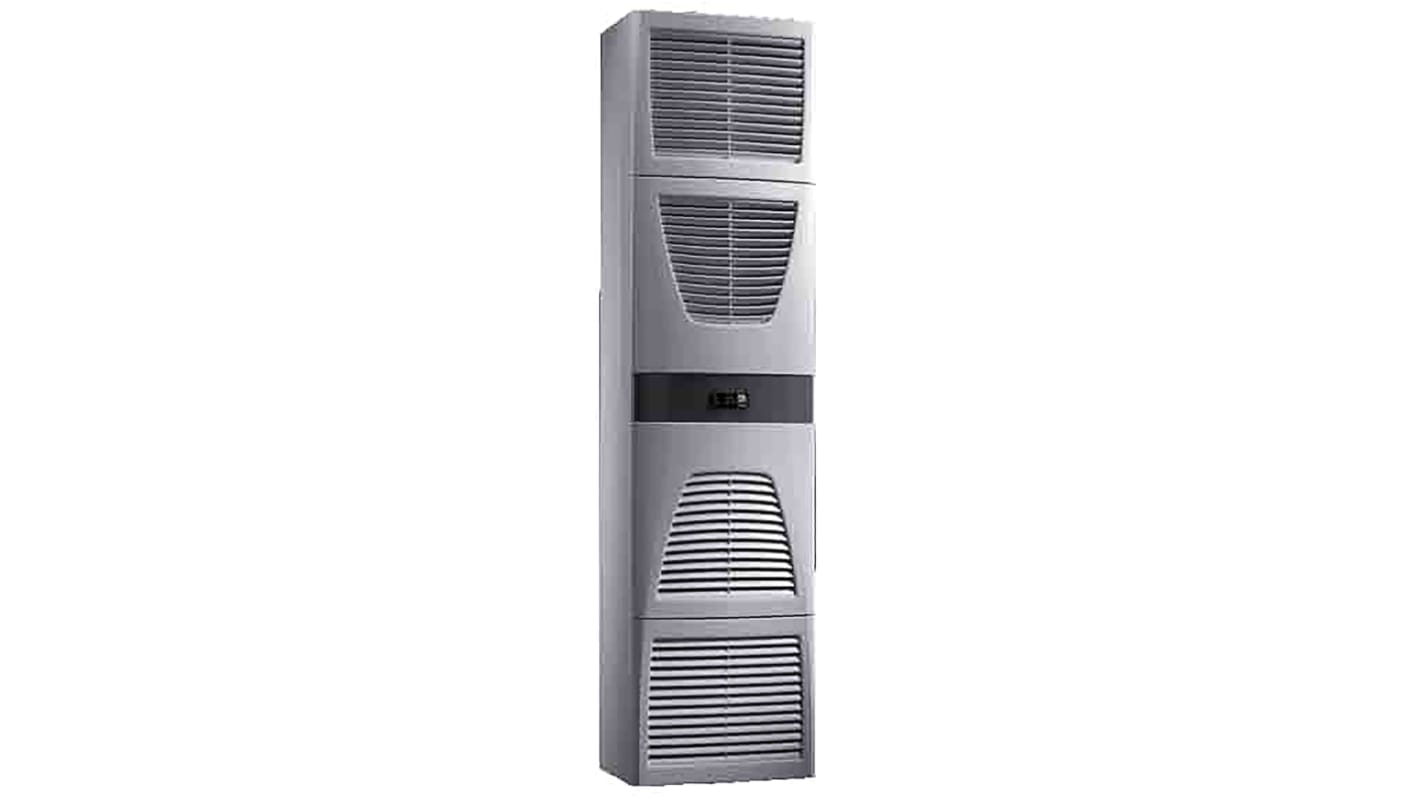

Rittal Enclosure Cooling Unit, 1200m³/h Air Flow Rate, Wall Mounting - TopTherm Series - 3329540
This Rittal cooling unit helps prevent the overheating of equipment in your enclosures. It has a high air flow rate of 1200m³/h for powerful cooling. The device includes a controller that allows you to customise temperature settings for different applications. Its compact dimensions of 1580 (height) x 400 (width) x 295mm (depth) mean it will take up minimal space on your wall.
Features & Benefits
• Fully wired for ease of installation
• Wide operating temperature range of +10°C to +55°C for use in demanding environments
Applications
• Server rooms
• Computer racks
• Electrical panels
Can I use this cooling unit in damp environments?
This unit's internal circuit has an IP54 rating, which means it's protected against limited amounts of dust and water splashes. This makes it suitable for use in areas exposed to moisture.
