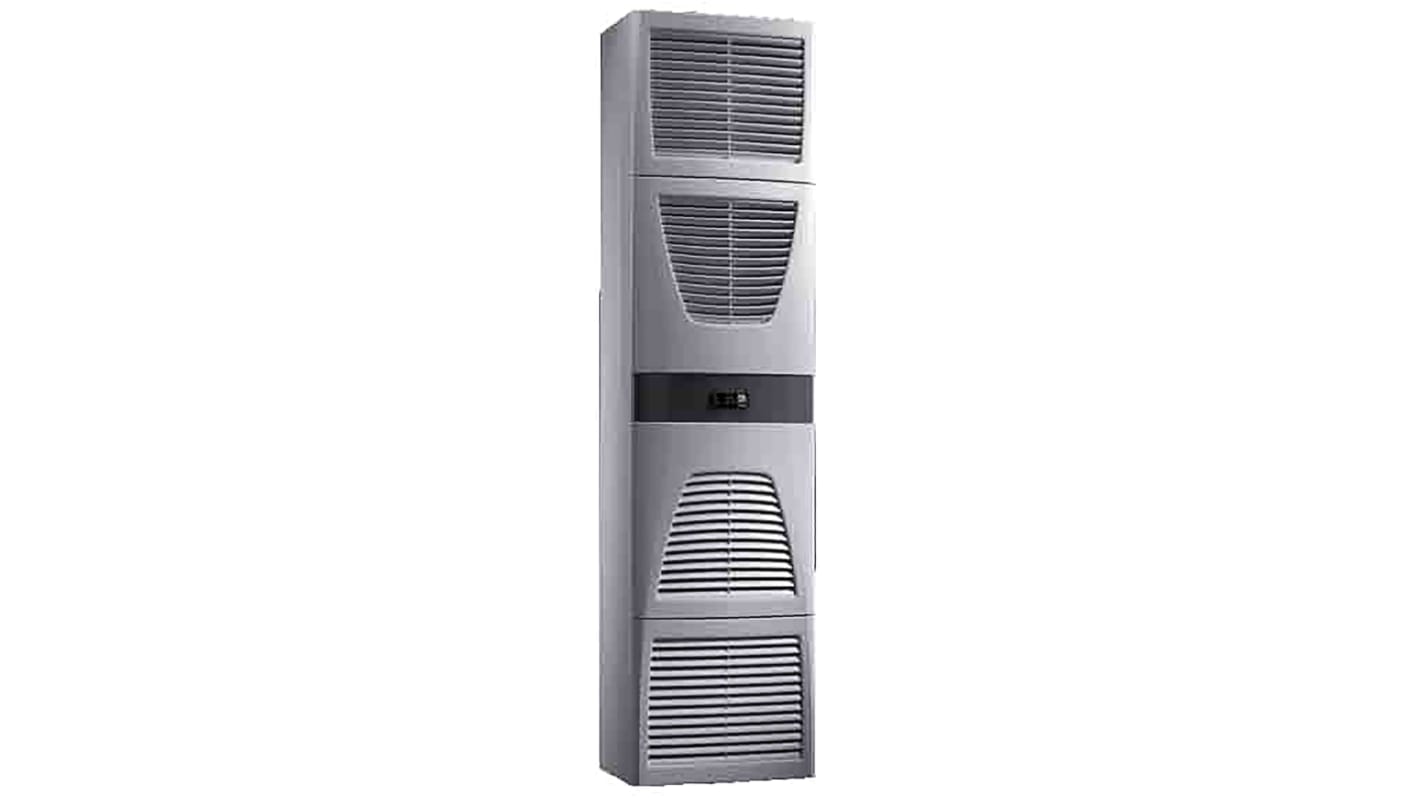

Rittal TopTherm Blue e Series Enclosure Cooling Unit, 2.71kW, 230V ac, 1230 (External Circuit m³/h, Internal Circuit)
- RS Stock No.:
- 224-0018
- Mfr. Part No.:
- 3329500
- Brand:
- Rittal
Bulk discount available
Subtotal (1 unit)*
£3,599.79
(exc. VAT)
£4,319.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £3,599.79 |
| 5 - 9 | £3,492.33 |
| 10 + | £3,391.11 |
*price indicative
- RS Stock No.:
- 224-0018
- Mfr. Part No.:
- 3329500
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 2.71kW | |
| Air Flow | 1230 (External Circuit m³/h, Internal Circuit) m³/h | |
| Internal Circuit Air Flow | 1230m³/h | |
| Input Power Rating | 1210W | |
| External Circuit Air Flow | 1230m³/h | |
| Mounting Type | Wall | |
| Supply Voltage | 230V ac | |
| Dimensions | 400 x 295 x 1580mm | |
| Depth | 295mm | |
| Height | 1580mm | |
| Width | 400mm | |
| Weight | 69kg | |
| Series | TopTherm Blue e | |
| Frequency | 50 Hz, 60 Hz | |
| Nominal Current | 7.9A | |
| Refrigerant Type | R134a | |
Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 2.71kW | ||
Air Flow 1230 (External Circuit m³/h, Internal Circuit) m³/h | ||
Internal Circuit Air Flow 1230m³/h | ||
Input Power Rating 1210W | ||
External Circuit Air Flow 1230m³/h | ||
Mounting Type Wall | ||
Supply Voltage 230V ac | ||
Dimensions 400 x 295 x 1580mm | ||
Depth 295mm | ||
Height 1580mm | ||
Width 400mm | ||
Weight 69kg | ||
Series TopTherm Blue e | ||
Frequency 50 Hz, 60 Hz | ||
Nominal Current 7.9A | ||
Refrigerant Type R134a | ||
- COO (Country of Origin):
- IT
Rittal Enclosure Cooling Unit, 1210 W Input Power Rating, 2550W Maximum Cooling Power - 3329500
This enclosure cooling unit by Rittal offers efficient cooling with a cooling power of 1210 W and an air flow of 1230 m³/h. Designed for high-traffic environments, this unit ensures optimal temperature control in electronic enclosures, making it a reliable solution for various industries.
Features & Benefits
• Energy-efficient cooling unit with a maximum cooling power of 2550 W
• Integral e-Comfort controller for precise temperature control
• Nano coating on the condenser for enhanced durability
• Electrical condensate evaporation as standard feature
• Ability to link to the IoT interface via the Blue e IoT adaptor
• Integral e-Comfort controller for precise temperature control
• Nano coating on the condenser for enhanced durability
• Electrical condensate evaporation as standard feature
• Ability to link to the IoT interface via the Blue e IoT adaptor
Applications
• Ideal for use in automation, electronics, electrical, and mechanical industries
• Suitable for cooling electronic enclosures in high-traffic environments
• Suitable for cooling electronic enclosures in high-traffic environments
Can it be linked to the IoT interface for remote monitoring?
Yes, it can be linked to the IoT interface via the Blue e IoT adaptor.
Will it provide efficient cooling in high-traffic environments?
The unit offers a maximum cooling power of 2550 W, making it suitable for high-traffic settings.
Is the condenser coated with RiNano for durability?
Yes, the condenser comes with RiNano coating for enhanced longevity.
