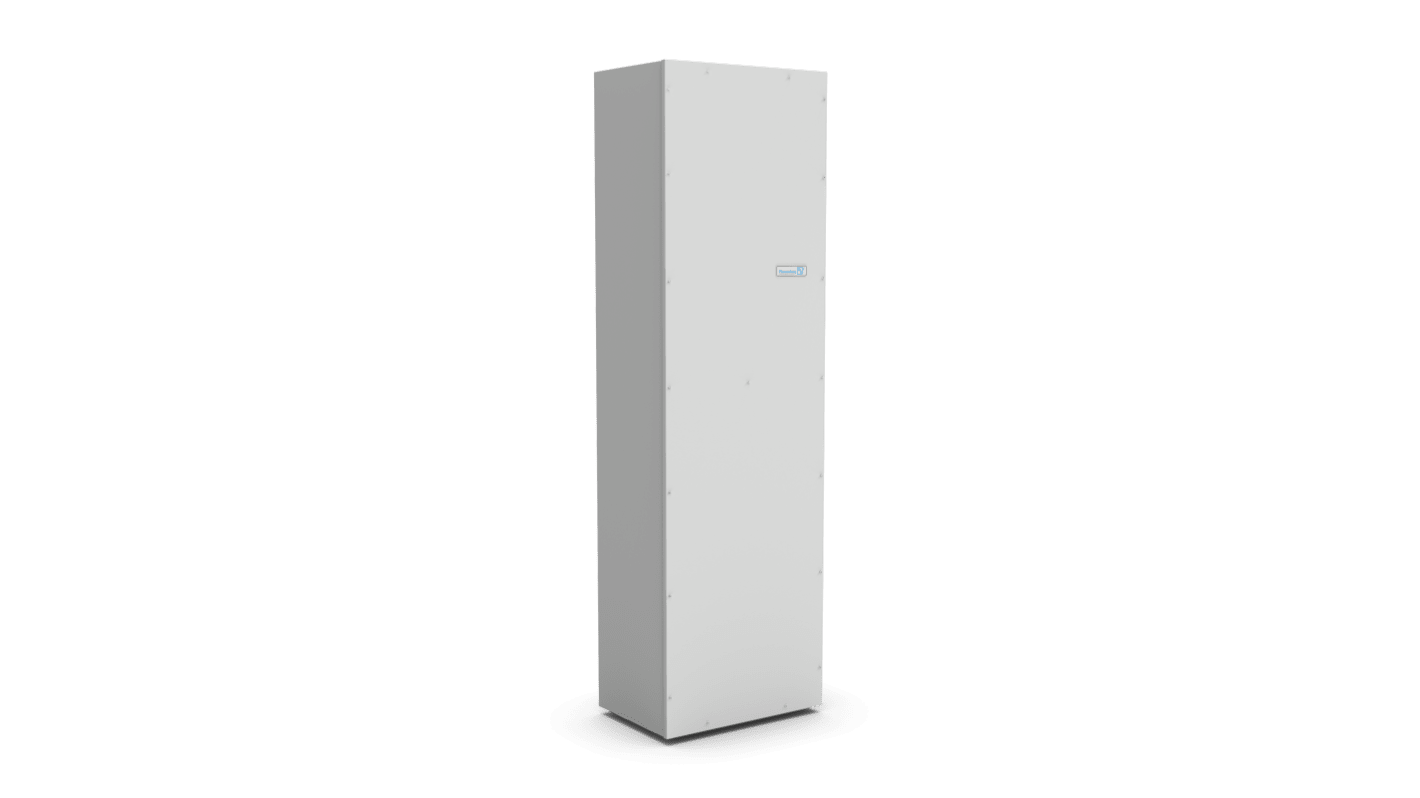

Pfannenberg PWS 71302 Series Enclosure Cooling Unit, 12500W, 5770 m³/h 230 V 2000 mm 598 mm 399 mm
- RS Stock No.:
- 460-868
- Mfr. Part No.:
- 12057910055
- Brand:
- Pfannenberg
Subtotal (1 unit)*
£4,109.31
(exc. VAT)
£4,931.17
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4,109.31 |
*price indicative
- RS Stock No.:
- 460-868
- Mfr. Part No.:
- 12057910055
- Brand:
- Pfannenberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pfannenberg | |
| Maximum Cooling Power | 12500W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 5770m³/h | |
| Noise Level | 66dB | |
| Mount Type | Rack | |
| Input Power | 12500W | |
| IP Rating | IP55 | |
| Maximum Supply Voltage | 230V | |
| Min Temperature Setting | 1°C | |
| Maximum Temperature Setting | 70°C | |
| Series | PWS 71302 | |
| Standards/Approvals | EN 60529, EN ISO 3741 | |
| Weight | 30kg | |
| Depth | 399mm | |
| Height | 2000mm | |
| Width | 598 mm | |
| Cooling Capacity | 12.500W | |
| Refrigerant Type | Water | |
| Select all | ||
|---|---|---|
Brand Pfannenberg | ||
Maximum Cooling Power 12500W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 5770m³/h | ||
Noise Level 66dB | ||
Mount Type Rack | ||
Input Power 12500W | ||
IP Rating IP55 | ||
Maximum Supply Voltage 230V | ||
Min Temperature Setting 1°C | ||
Maximum Temperature Setting 70°C | ||
Series PWS 71302 | ||
Standards/Approvals EN 60529, EN ISO 3741 | ||
Weight 30kg | ||
Depth 399mm | ||
Height 2000mm | ||
Width 598 mm | ||
Cooling Capacity 12.500W | ||
Refrigerant Type Water | ||
- COO (Country of Origin):
- IT
The Pfannenberg Air/water heat exchanger features an integrated thermostat and solenoid valve for precise temperature control. It also includes integrated temperature monitoring with an alarm contact, ensuring effective and reliable operation by alerting you to any temperature fluctuations.
AirWater heat exchanger with 12.5 kW for outer mounting on the door or side
Robust steel cover, easily paintable
Maintenance free
Mounting friendly seal, no elaborate reworking of the mounting cutout
Integrated thermostat and solenoid valve for temperature control
Integrated temperature monitoring with alarm contact
High performance based on low flow rate and low pressure drop
