Pfannenberg PWS 7032 Series Enclosure Cooling Unit, 300W, 80 m³/h 24 V 300 mm 150 mm 93 mm
- RS Stock No.:
- 460-830
- Mfr. Part No.:
- 12050380055
- Brand:
- Pfannenberg
Subtotal (1 unit)*
£524.91
(exc. VAT)
£629.89
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £524.91 |
*price indicative
- RS Stock No.:
- 460-830
- Mfr. Part No.:
- 12050380055
- Brand:
- Pfannenberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pfannenberg | |
| Maximum Cooling Power | 300W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 80m³/h | |
| Noise Level | 63dB | |
| Mount Type | Rack | |
| Input Power | 300W | |
| Maximum Supply Voltage | 24V | |
| IP Rating | IP55 | |
| Maximum Temperature Setting | 70°C | |
| Min Temperature Setting | 1°C | |
| Weight | 80kg | |
| Depth | 93mm | |
| Series | PWS 7032 | |
| Standards/Approvals | EN 60529, EN ISO 3741 | |
| Width | 150 mm | |
| Height | 300mm | |
| Cooling Capacity | 300W | |
| Refrigerant Type | Water | |
| Select all | ||
|---|---|---|
Brand Pfannenberg | ||
Maximum Cooling Power 300W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 80m³/h | ||
Noise Level 63dB | ||
Mount Type Rack | ||
Input Power 300W | ||
Maximum Supply Voltage 24V | ||
IP Rating IP55 | ||
Maximum Temperature Setting 70°C | ||
Min Temperature Setting 1°C | ||
Weight 80kg | ||
Depth 93mm | ||
Series PWS 7032 | ||
Standards/Approvals EN 60529, EN ISO 3741 | ||
Width 150 mm | ||
Height 300mm | ||
Cooling Capacity 300W | ||
Refrigerant Type Water | ||
- COO (Country of Origin):
- IT

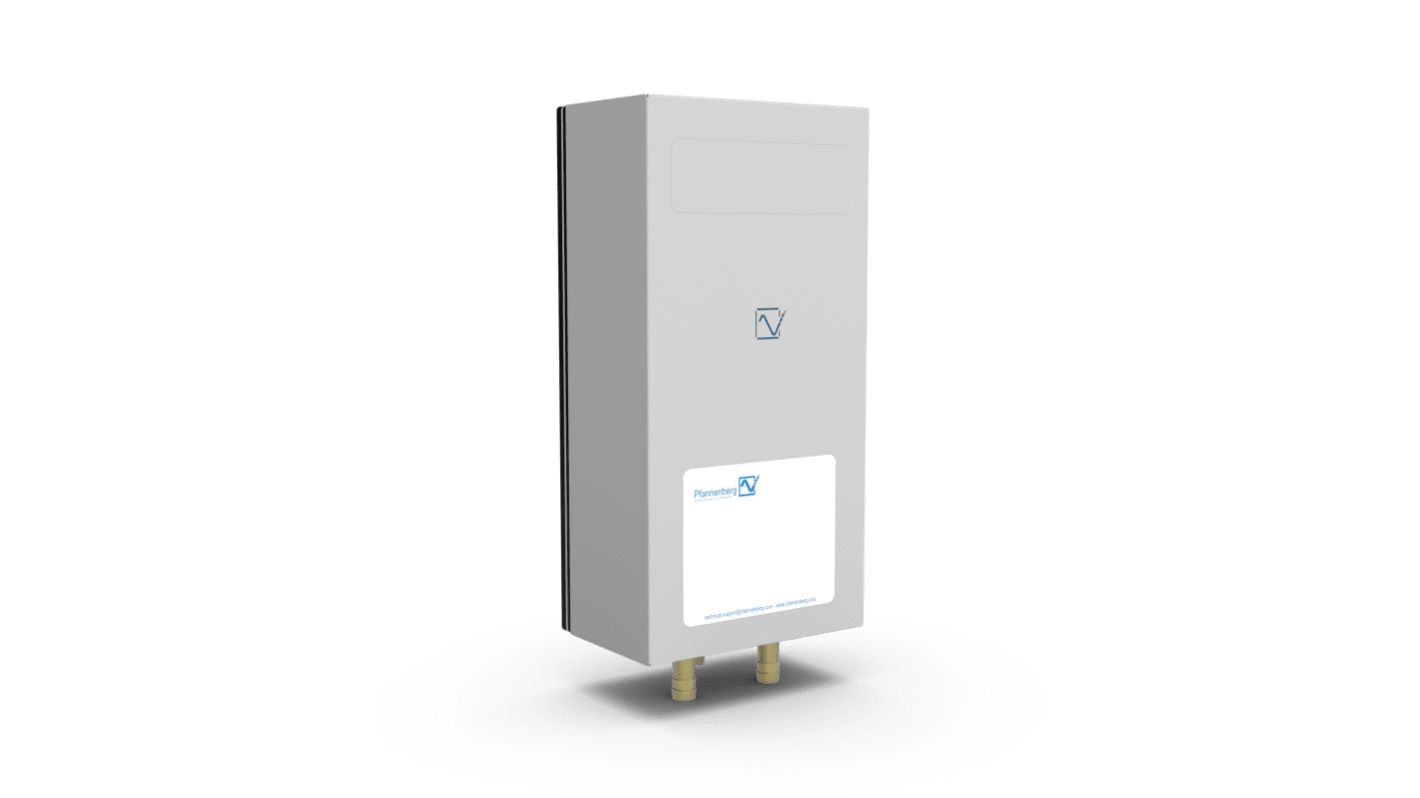

The Pfannenberg Air/waterater heat exchanger is designed for outer mounting on the door or side. It features a robust steel cover that is easily paintable, allowing for customization and durability in various industrial environments.
AirWater heat exchanger with 0.3 kW for outer mounting on the door or side
Robust steel cover, easily paintable
Maintenance free
Mounting friendly seal, no elaborate reworking of the mounting cutout
