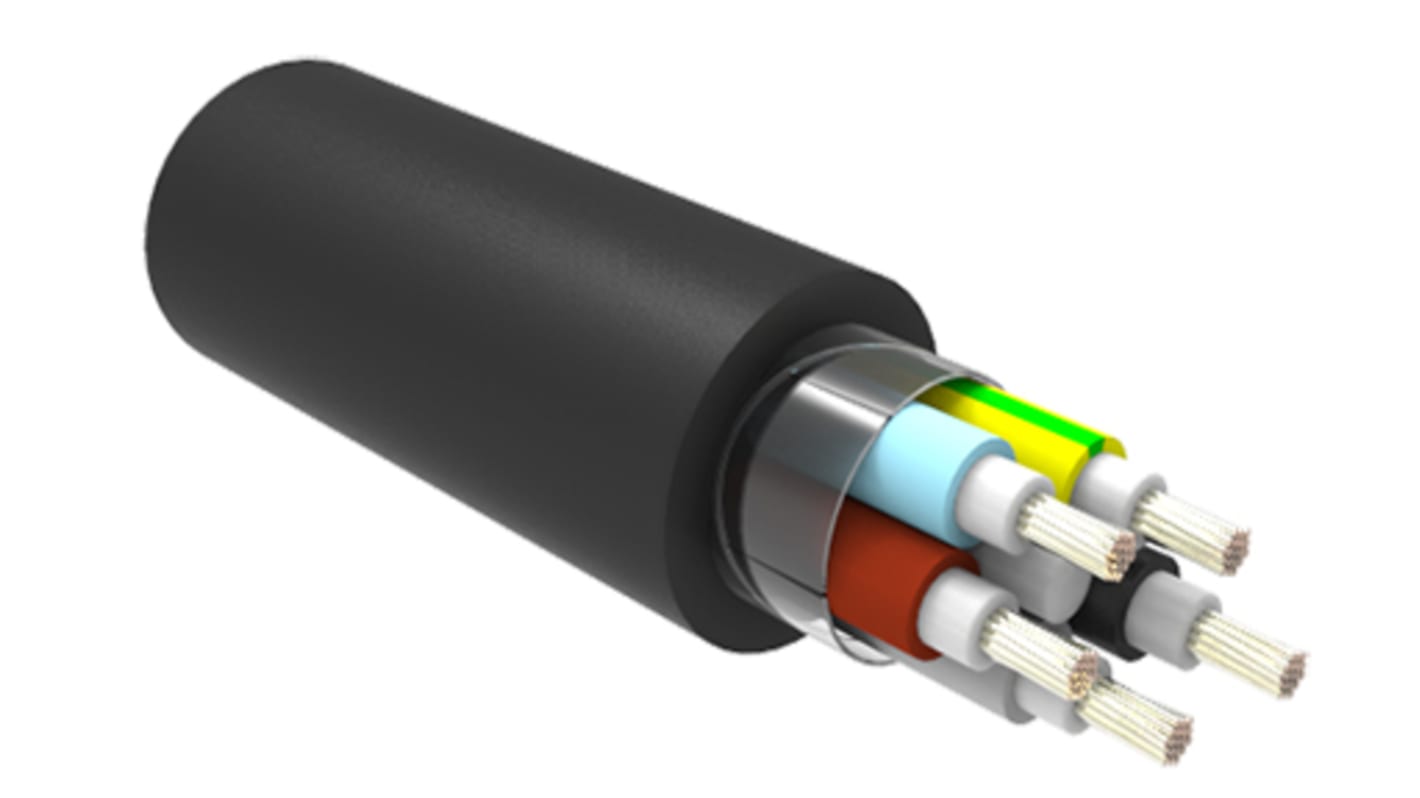

TE Connectivity C-Lite Multicore Industrial Cable, 5 Cores, 1.5 mm², Unscreened, 50m, Black Low Smoke Zero Halogen
- RS Stock No.:
- 914-4187
- Mfr. Part No.:
- CL105-5GX1.50-SU-0
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 914-4187
- Mfr. Part No.:
- CL105-5GX1.50-SU-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | C-Lite | |
| Number of Cores | 5 | |
| Cross Sectional Area | 1.5 mm² | |
| Screened/Unscreened | Unscreened | |
| Length | 50m | |
| Sheath Colour | Black | |
| American Wire Gauge | 15 AWG | |
| Outer Diameter | 7.7mm | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Insulation Material | LSZH | |
| Conductor Material | Copper | |
| Minimum Bend Radius | 10 x Diameter | |
| Core Strands | 37/0.23 mm | |
| Maximum Operating Temperature | +120°C | |
| Screen Type | Unscreened | |
| Voltage Rating | 600 V | |
| Drain Wire | No | |
| Conductor Resistance | 13.7 Ω/km | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series C-Lite | ||
Number of Cores 5 | ||
Cross Sectional Area 1.5 mm² | ||
Screened/Unscreened Unscreened | ||
Length 50m | ||
Sheath Colour Black | ||
American Wire Gauge 15 AWG | ||
Outer Diameter 7.7mm | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Insulation Material LSZH | ||
Conductor Material Copper | ||
Minimum Bend Radius 10 x Diameter | ||
Core Strands 37/0.23 mm | ||
Maximum Operating Temperature +120°C | ||
Screen Type Unscreened | ||
Voltage Rating 600 V | ||
Drain Wire No | ||
Conductor Resistance 13.7 Ω/km | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Minimum Operating Temperature -40°C | ||
TE Connectivity Unscreened C-Lite Marine Cable
TE Connectivity unscreened C-Lite marine cable use advanced thin-wall insulation and jacket technology to reduce the size and weight of cables, without reducing the electrical or mechanical properties. C-Lite cables offer excellent resistance to oils, solvents, fuels, petroleum and mud for use in demanding marine environments such as oil rigs.
Features and Benefits
Excellent substance resistance
Zerohal jacket
Lightweight
Stranded conductors for flexibility
Metre marked
Marine Cable
