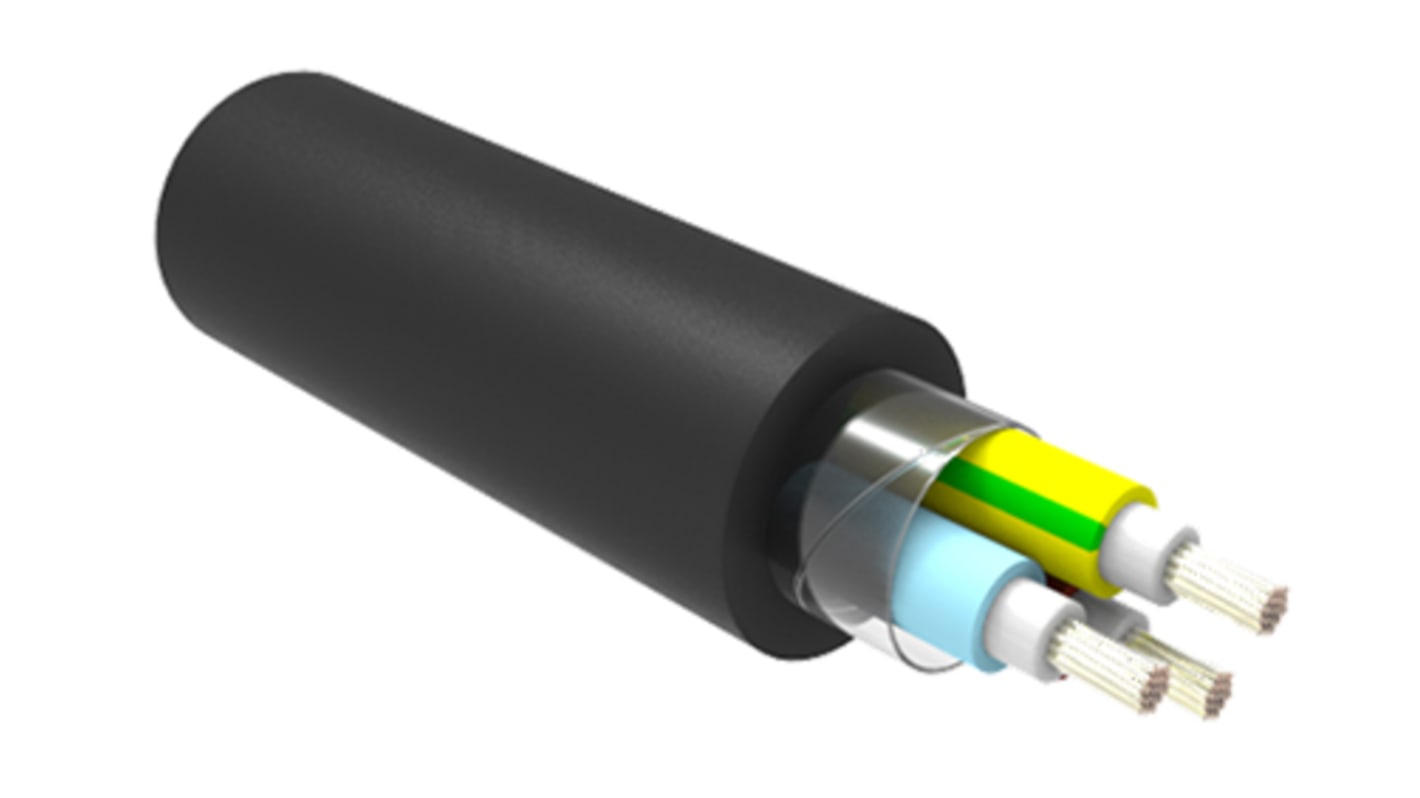

TE Connectivity C-Lite Multicore Industrial Cable, 3 Cores, 0.75 mm², Unscreened, 50m, Black Low Smoke Zero Halogen
- RS Stock No.:
- 914-4156
- Mfr. Part No.:
- CL105-3GX0.75-SU-0
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£332.76
(exc. VAT)
£399.31
(inc. VAT)
- RS Stock No.:
- 914-4156
- Mfr. Part No.:
- CL105-3GX0.75-SU-0
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | C-Lite | |
| Number of Cores | 3 | |
| Cross Sectional Area | 0.75 mm² | |
| Screened/Unscreened | Unscreened | |
| Length | 50m | |
| Sheath Colour | Black | |
| American Wire Gauge | 18 AWG | |
| Outer Diameter | 5.4mm | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Drain Wire | No | |
| Screen Type | Unscreened | |
| Maximum Operating Temperature | +120°C | |
| Voltage Rating | 600 V | |
| Conductor Material | Copper | |
| Minimum Bend Radius | 10 x Diameter | |
| Minimum Operating Temperature | -40°C | |
| Core Strands | 19/0.23 mm | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| Insulation Material | LSZH | |
| Conductor Resistance | 26.7 Ω/km | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series C-Lite | ||
Number of Cores 3 | ||
Cross Sectional Area 0.75 mm² | ||
Screened/Unscreened Unscreened | ||
Length 50m | ||
Sheath Colour Black | ||
American Wire Gauge 18 AWG | ||
Outer Diameter 5.4mm | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Drain Wire No | ||
Screen Type Unscreened | ||
Maximum Operating Temperature +120°C | ||
Voltage Rating 600 V | ||
Conductor Material Copper | ||
Minimum Bend Radius 10 x Diameter | ||
Minimum Operating Temperature -40°C | ||
Core Strands 19/0.23 mm | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Insulation Material LSZH | ||
Conductor Resistance 26.7 Ω/km | ||
