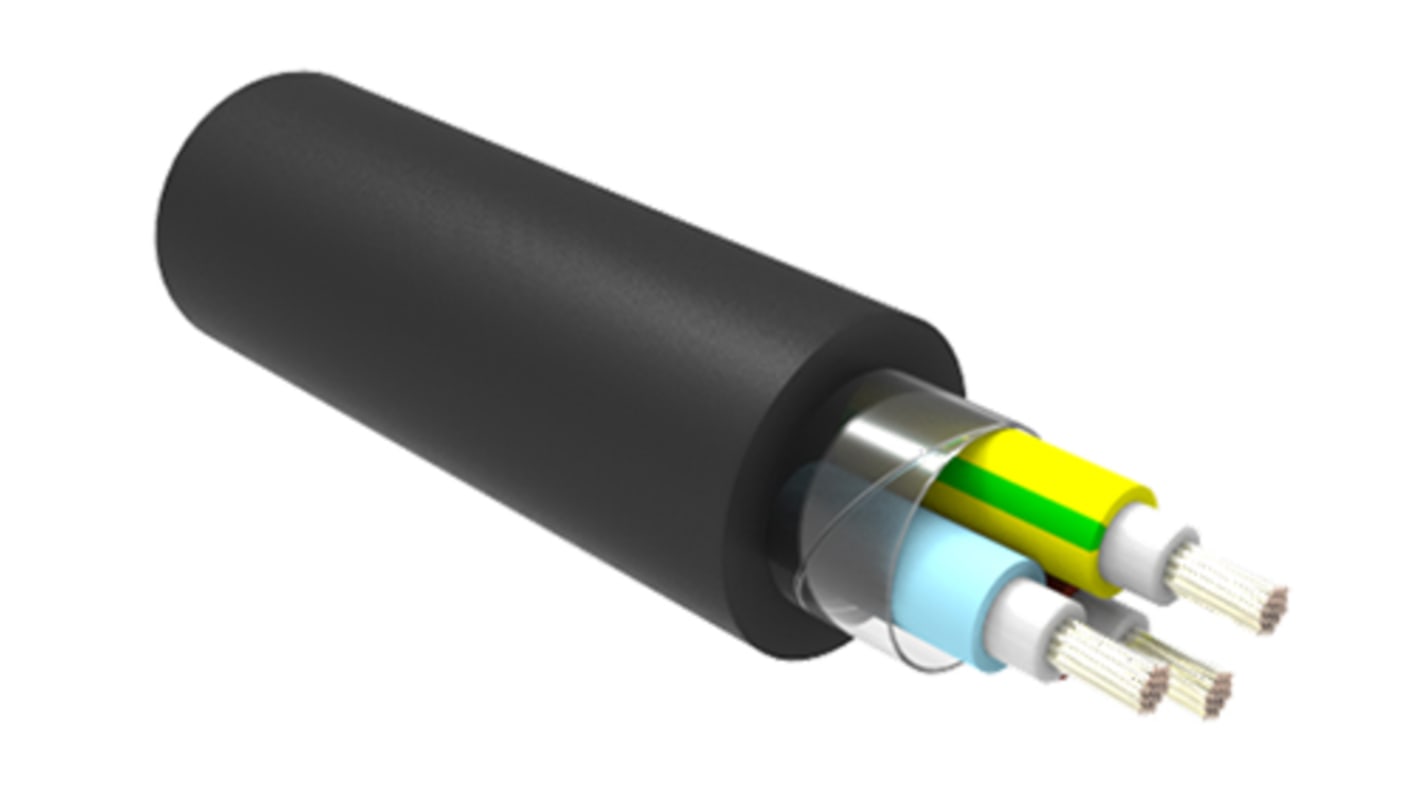

TE Connectivity C-Lite Multicore Industrial Cable, 3 Cores, 1.5 mm², Unscreened, 50m, Black Low Smoke Zero Halogen
- RS Stock No.:
- 914-4178
- Mfr. Part No.:
- CL105-3GX1.50-SU-0
- Brand:
- TE Connectivity
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£754.02
(exc. VAT)
£904.82
(inc. VAT)
- RS Stock No.:
- 914-4178
- Mfr. Part No.:
- CL105-3GX1.50-SU-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | C-Lite | |
| Number of Cores | 3 | |
| Cross Sectional Area | 1.5 mm² | |
| Screened/Unscreened | Unscreened | |
| Length | 50m | |
| Sheath Colour | Black | |
| American Wire Gauge | 15 AWG | |
| Outer Diameter | 6.6mm | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Minimum Operating Temperature | -40°C | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| Insulation Material | LSZH | |
| Conductor Resistance | 13.7 Ω/km | |
| Maximum Operating Temperature | +120°C | |
| Screen Type | Unscreened | |
| Drain Wire | No | |
| Voltage Rating | 600 V | |
| Conductor Material | Copper | |
| Core Strands | 37/0.23 mm | |
| Minimum Bend Radius | 10 x Diameter | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series C-Lite | ||
Number of Cores 3 | ||
Cross Sectional Area 1.5 mm² | ||
Screened/Unscreened Unscreened | ||
Length 50m | ||
Sheath Colour Black | ||
American Wire Gauge 15 AWG | ||
Outer Diameter 6.6mm | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Minimum Operating Temperature -40°C | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Insulation Material LSZH | ||
Conductor Resistance 13.7 Ω/km | ||
Maximum Operating Temperature +120°C | ||
Screen Type Unscreened | ||
Drain Wire No | ||
Voltage Rating 600 V | ||
Conductor Material Copper | ||
Core Strands 37/0.23 mm | ||
Minimum Bend Radius 10 x Diameter | ||
TE Connectivity Unscreened C-Lite Marine Cable
TE Connectivity unscreened C-Lite marine cable use advanced thin-wall insulation and jacket technology to reduce the size and weight of cables, without reducing the electrical or mechanical properties. C-Lite cables offer excellent resistance to oils, solvents, fuels, petroleum and mud for use in demanding marine environments such as oil rigs.
Features and Benefits
Excellent substance resistance
Zerohal jacket
Lightweight
Stranded conductors for flexibility
Metre marked
Marine Cable
