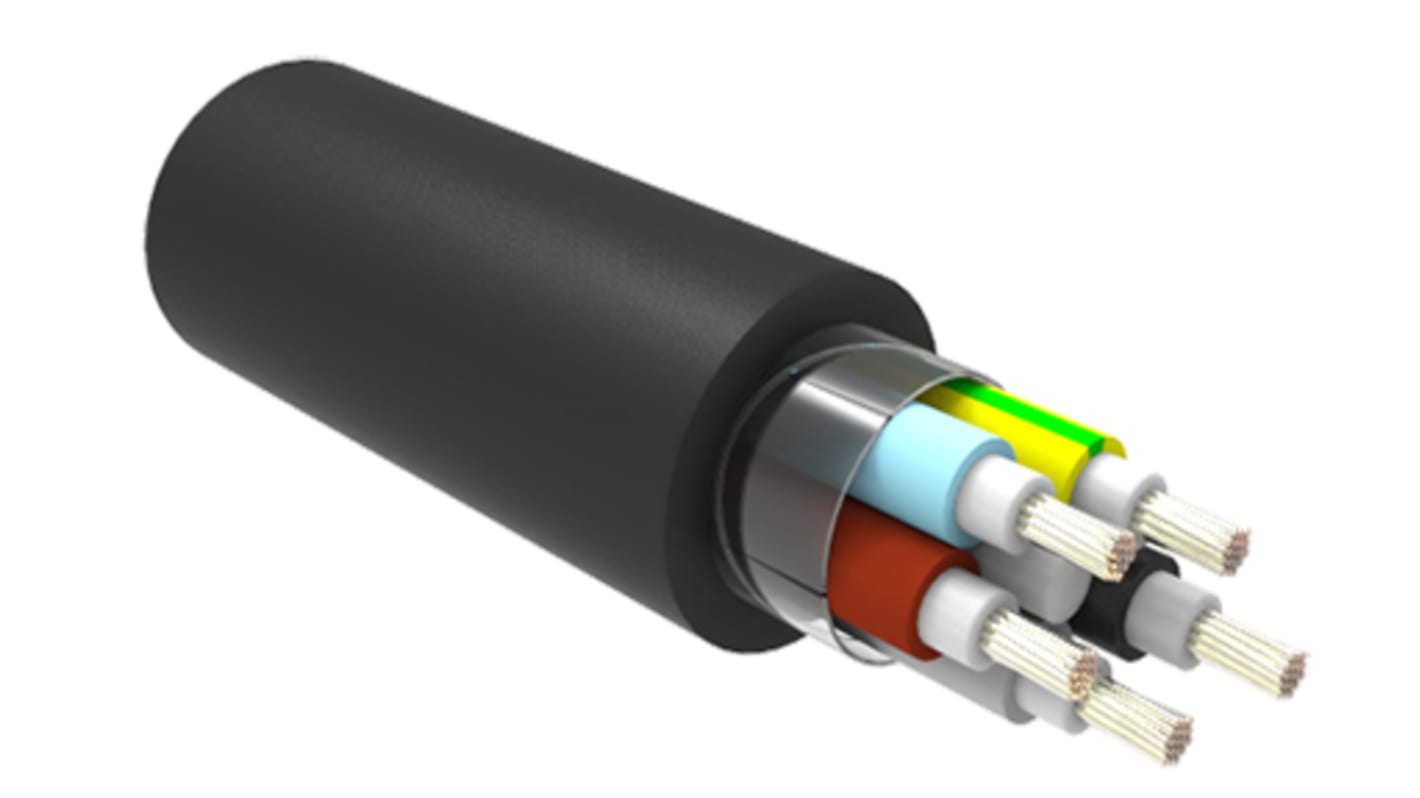

TE Connectivity C-Lite Multicore Industrial Cable, 5 Cores, 1 mm², Unscreened, 50m, Black Low Smoke Zero Halogen (LSZH)
- RS Stock No.:
- 914-4171
- Mfr. Part No.:
- CL105-5GX1.00-SU-0
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 914-4171
- Mfr. Part No.:
- CL105-5GX1.00-SU-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | C-Lite | |
| Number of Cores | 5 | |
| Cross Sectional Area | 1 mm² | |
| Screened/Unscreened | Unscreened | |
| Length | 50m | |
| Sheath Colour | Black | |
| American Wire Gauge | 17 AWG | |
| Outer Diameter | 6.8mm | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Voltage Rating | 600 V | |
| Maximum Operating Temperature | +120°C | |
| Minimum Bend Radius | 10 x Diameter | |
| Core Strands | 19/0.25 mm | |
| Drain Wire | No | |
| Conductor Material | Copper | |
| Screen Type | Unscreened | |
| Minimum Operating Temperature | -40°C | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| Insulation Material | LSZH | |
| Conductor Resistance | 20 Ω/km | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series C-Lite | ||
Number of Cores 5 | ||
Cross Sectional Area 1 mm² | ||
Screened/Unscreened Unscreened | ||
Length 50m | ||
Sheath Colour Black | ||
American Wire Gauge 17 AWG | ||
Outer Diameter 6.8mm | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Voltage Rating 600 V | ||
Maximum Operating Temperature +120°C | ||
Minimum Bend Radius 10 x Diameter | ||
Core Strands 19/0.25 mm | ||
Drain Wire No | ||
Conductor Material Copper | ||
Screen Type Unscreened | ||
Minimum Operating Temperature -40°C | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Insulation Material LSZH | ||
Conductor Resistance 20 Ω/km | ||
TE Connectivity Unscreened C-Lite Marine Cable
TE Connectivity unscreened C-Lite marine cable use advanced thin-wall insulation and jacket technology to reduce the size and weight of cables, without reducing the electrical or mechanical properties. C-Lite cables offer excellent resistance to oils, solvents, fuels, petroleum and mud for use in demanding marine environments such as oil rigs.
Features and Benefits
Excellent substance resistance
Zerohal jacket
Lightweight
Stranded conductors for flexibility
Metre marked
Marine Cable
